A compact PICAXE-28X2 module which contains the popular PICAXE-28X2 (PIC18F25K22) chip, voltage regulator, download socket, and reset switch in a convenient 28-pin, 0.6" wide, format. Supplied as an assembled and ready to use module it is ideal for breadboarding work but will also find a suitable place in other projects.
This 28X2 module supports up to 22 inputs/outputs with 16 analogue/touch sensor channels with an operating speed up to 16MHz using an internal oscillator and 64MHz using an on-board resonator. This chip supports 4 internal and up to 32 external program slots and is capable of acting as an i2c slave device.
The 28X2 supports enhanced features such as configurable i/o pins, ring tone music and touch sensor inputs, i2c, spi and high-speed serial with background receive. Scratchpad memory plus separate Data EEPROM and Data Table are supported. See the specification tab for more X2 series information.

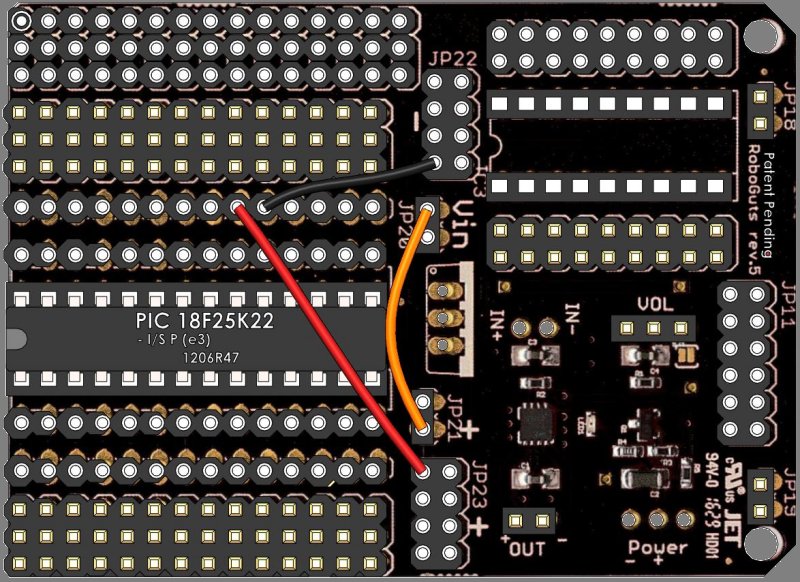

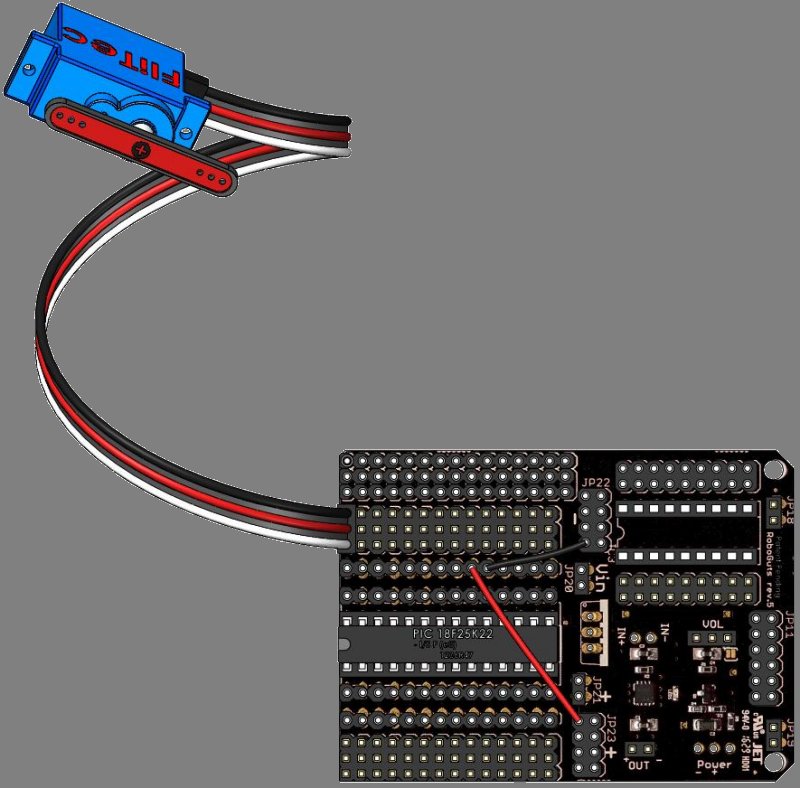

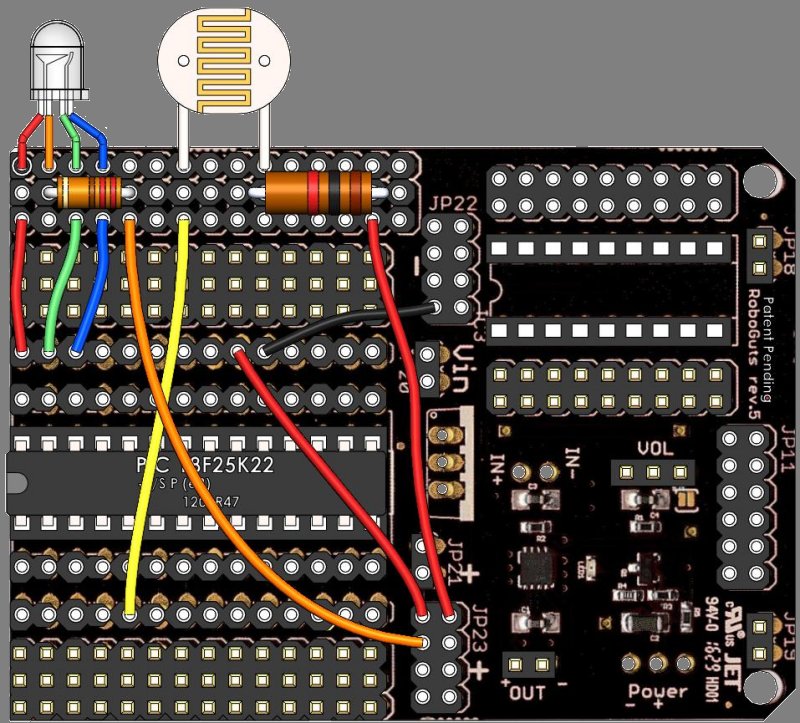

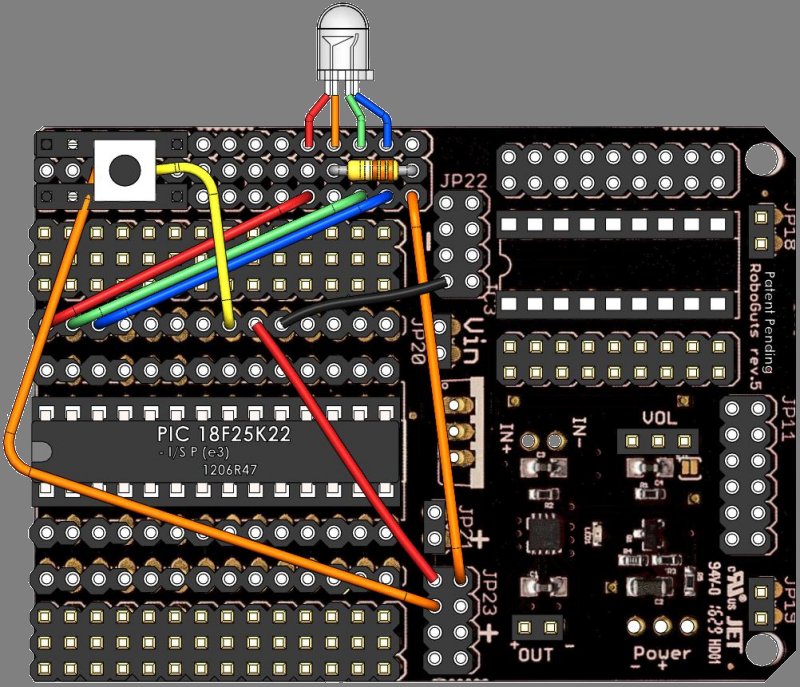

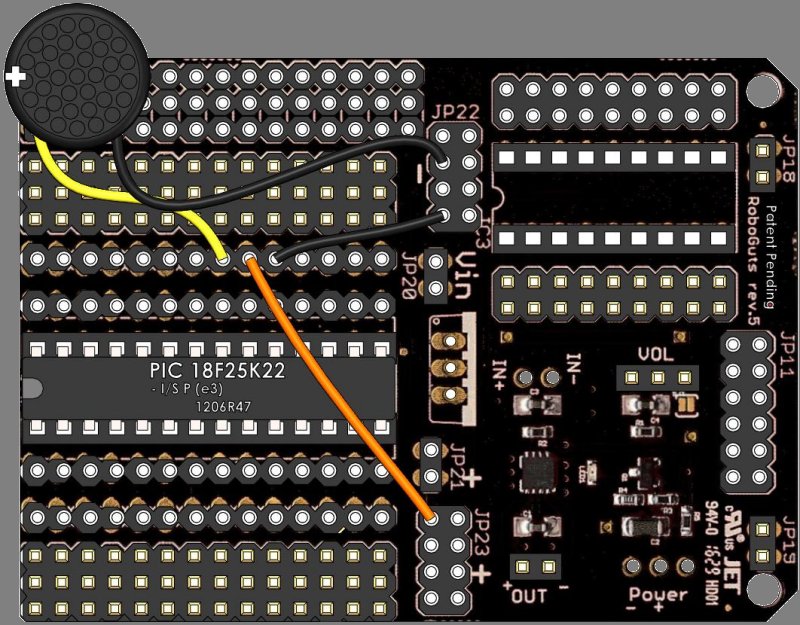

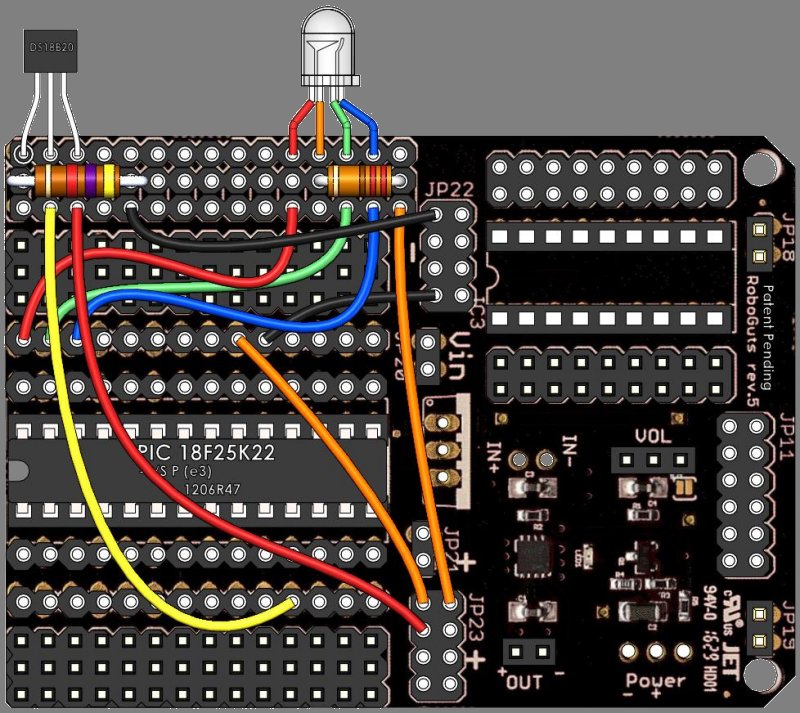

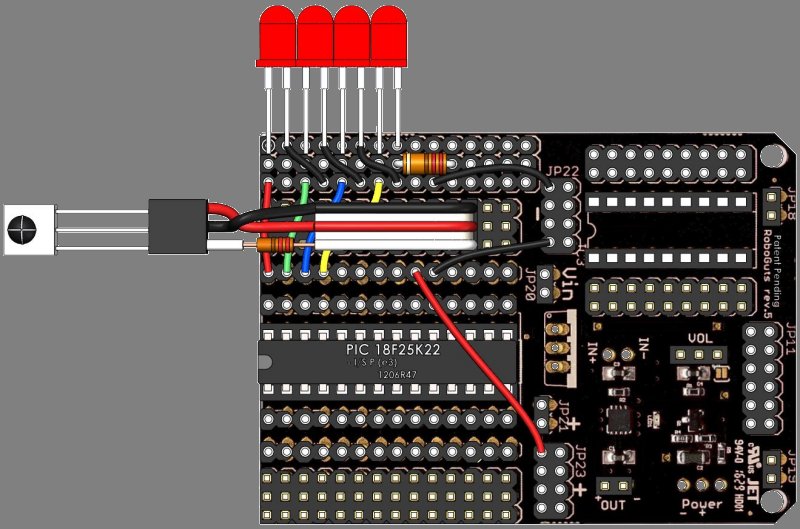

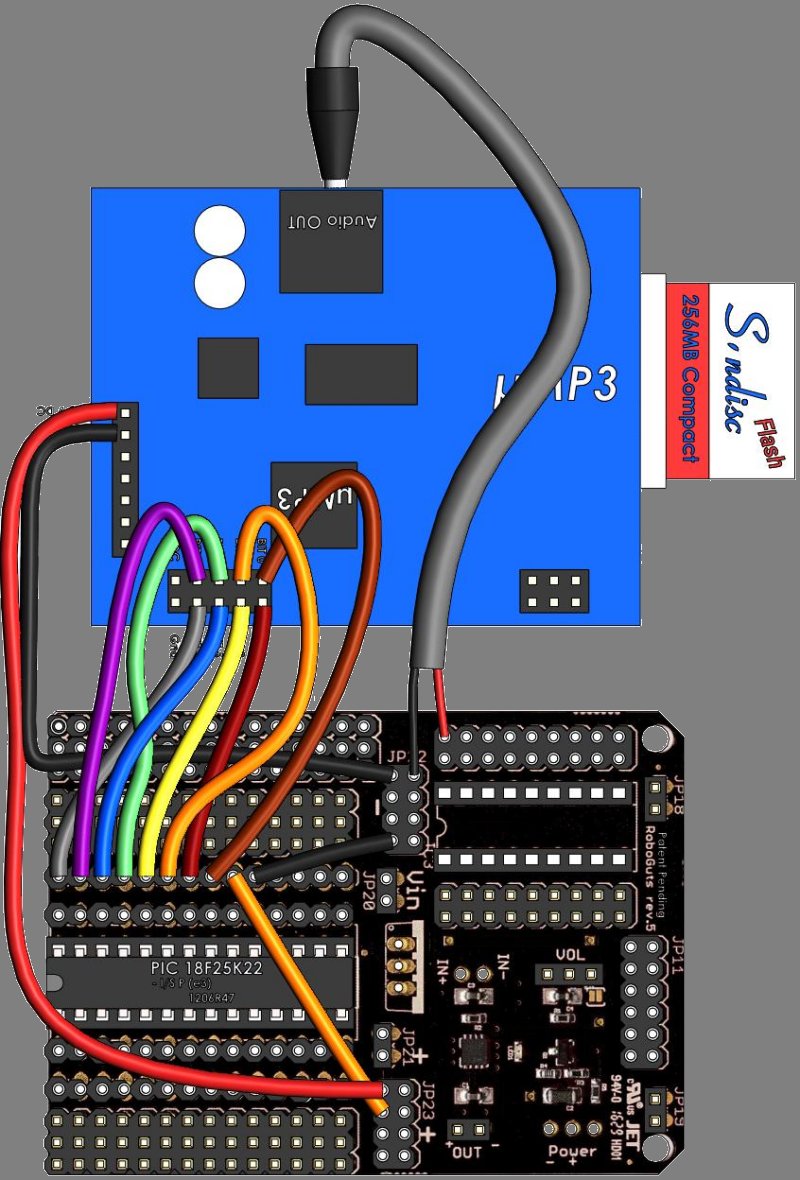

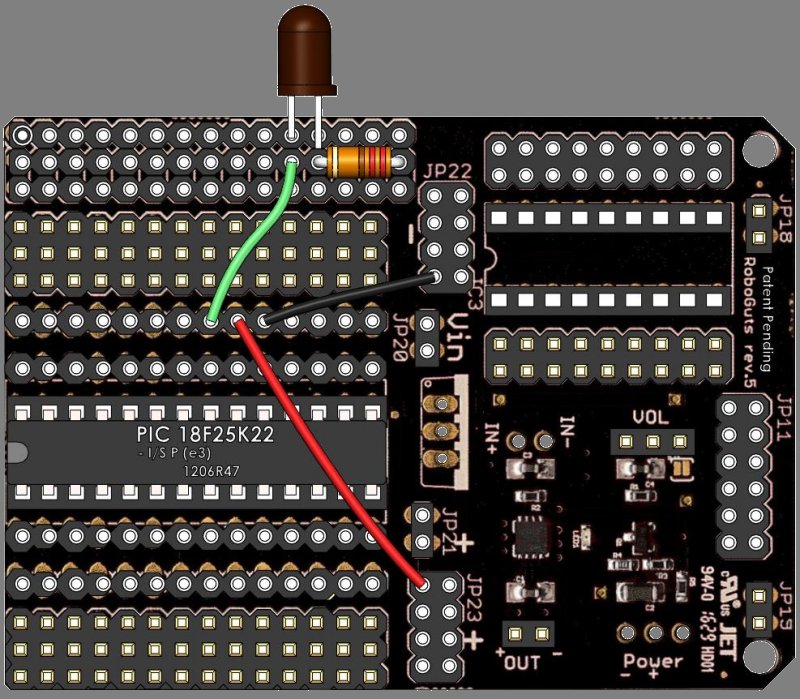

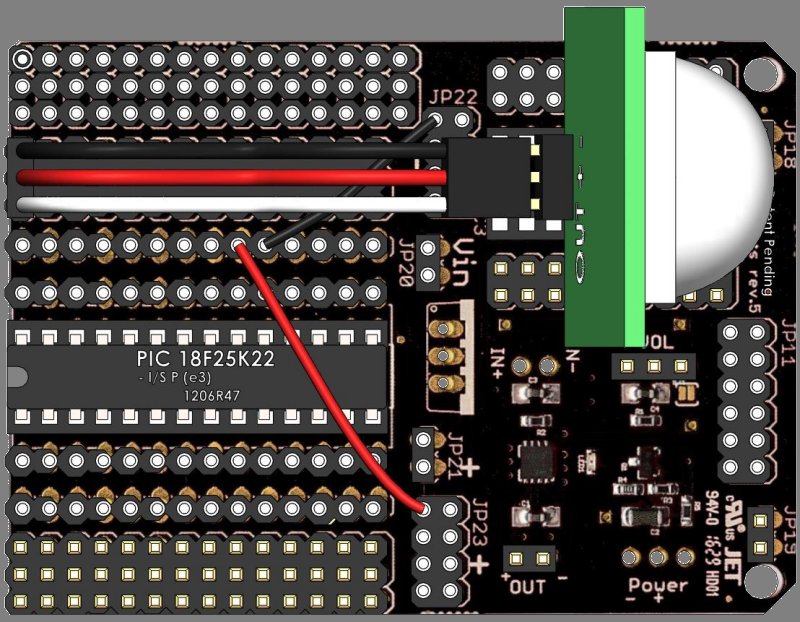

Lesson 00 Power IN
JP20 is tied directly to the Battery IN V+/Vin male header of RoboGuts™ circuit board at JP18
Power IN for the PICAXE 28X2 chip is 4.5V to 5V DC

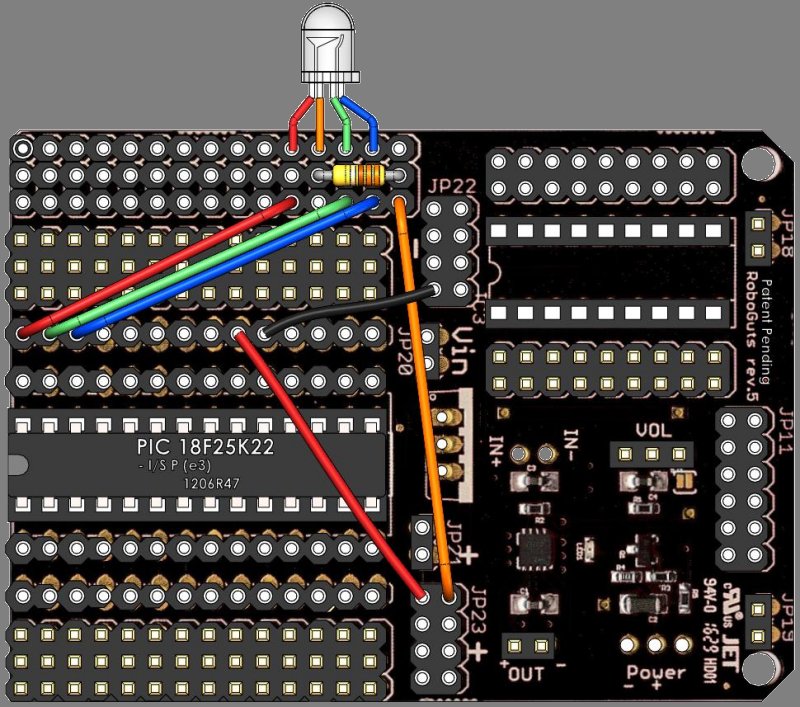

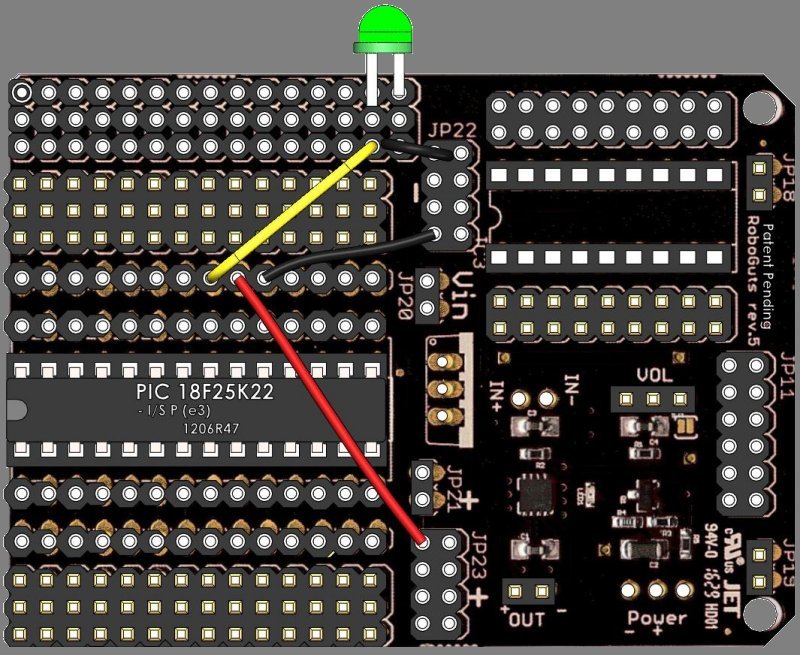

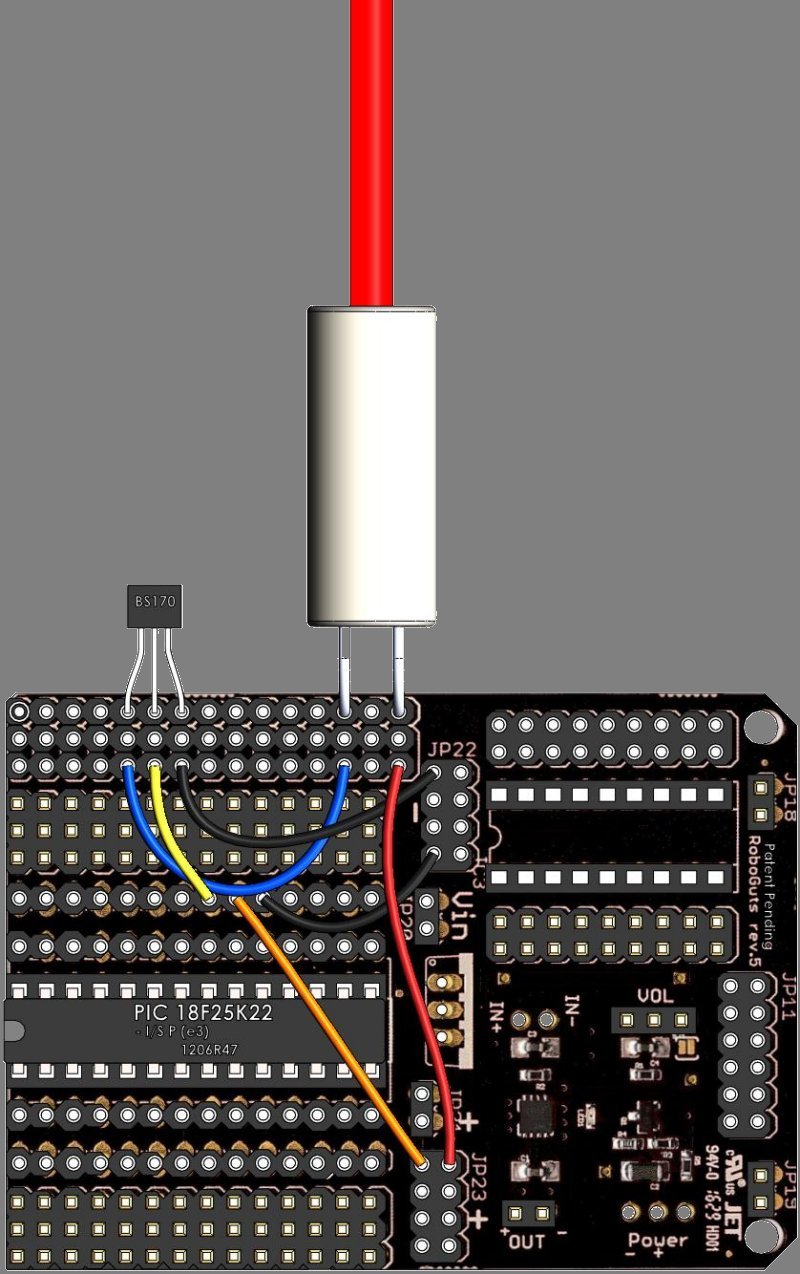

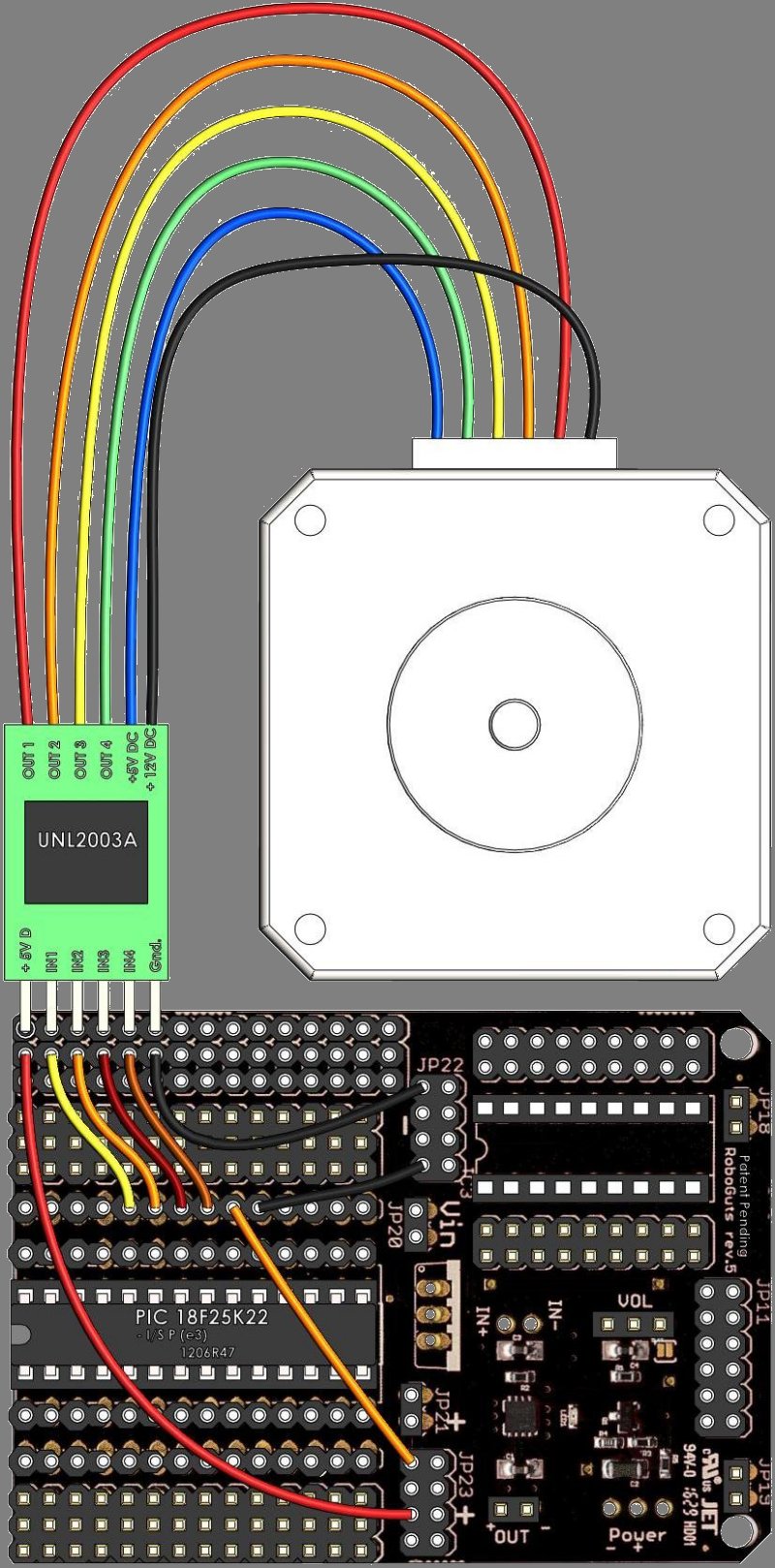

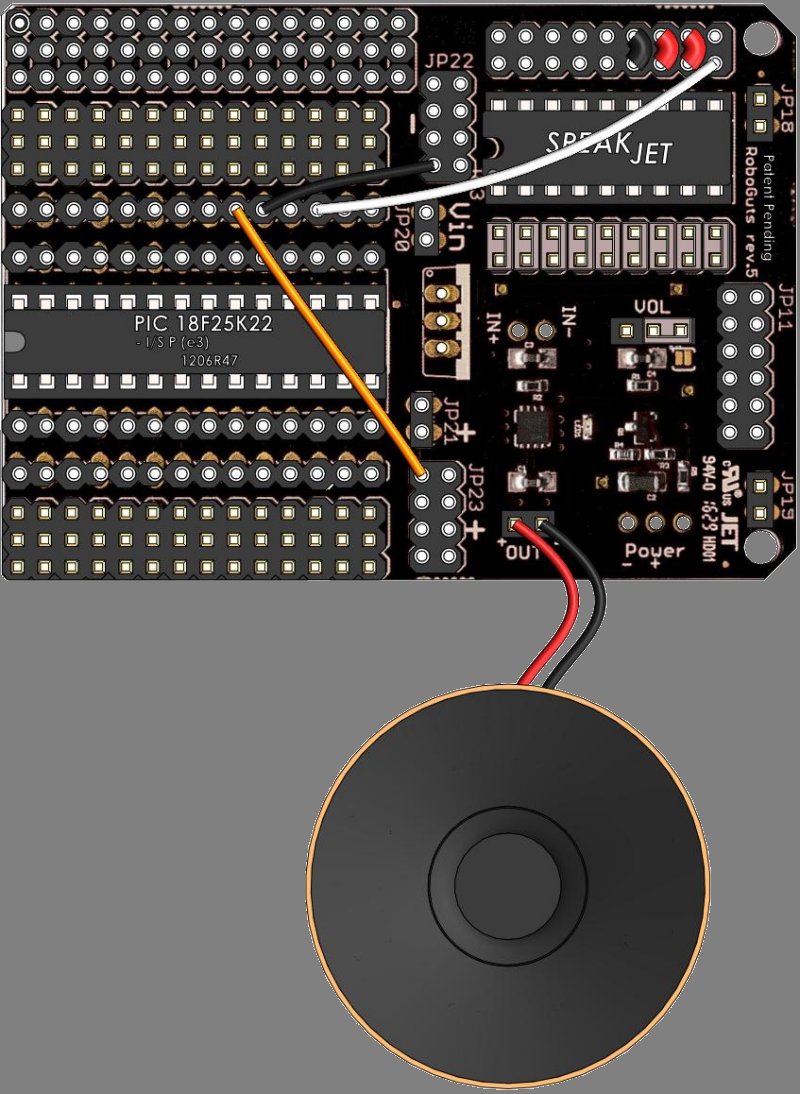

B.0 = RWheel, B.1 = LWheel B.7 = Red LED, B.6 = Green LED, B.5 = Blue LED C.0 = Talk & Song
----------------------------------------------------------------------------------------------------------------
ALL the .STL part files are waiting for KickStarter campaign to be funded.
----------------------------------------------------------------------------------------------------------------
Project X1 = Cave Explorer miniFloppyBot
Body box, 2 Wheels, Top, Skid and Face ... the whole kit can be 3D printed on most printers in one day.
Only 1 rubber band on 1 wheel for traction is why the bot
falters a little in the normal programmed operation,
but it is easily seen how the program works in the demo video.

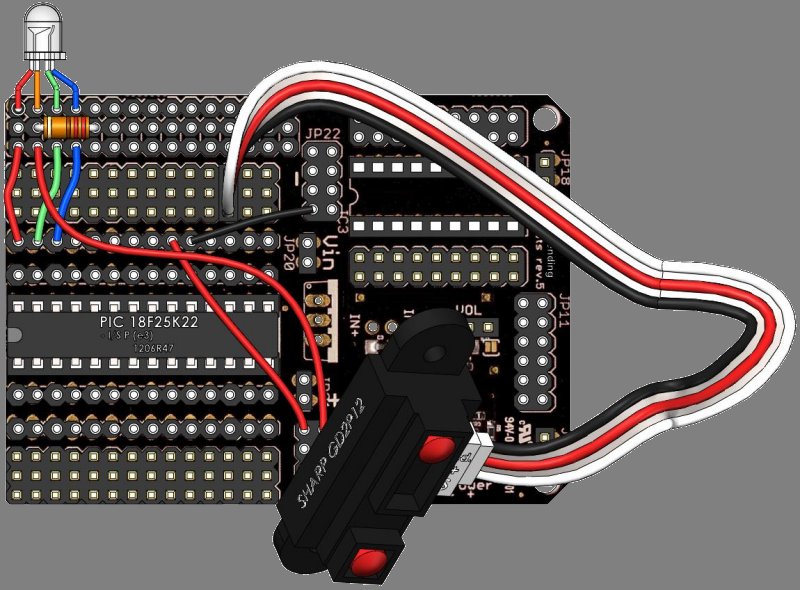

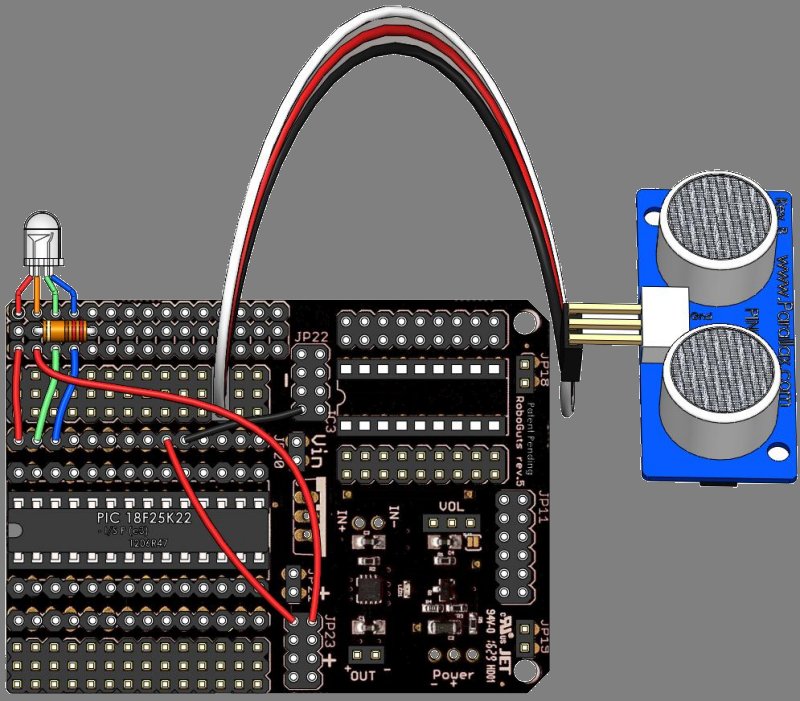

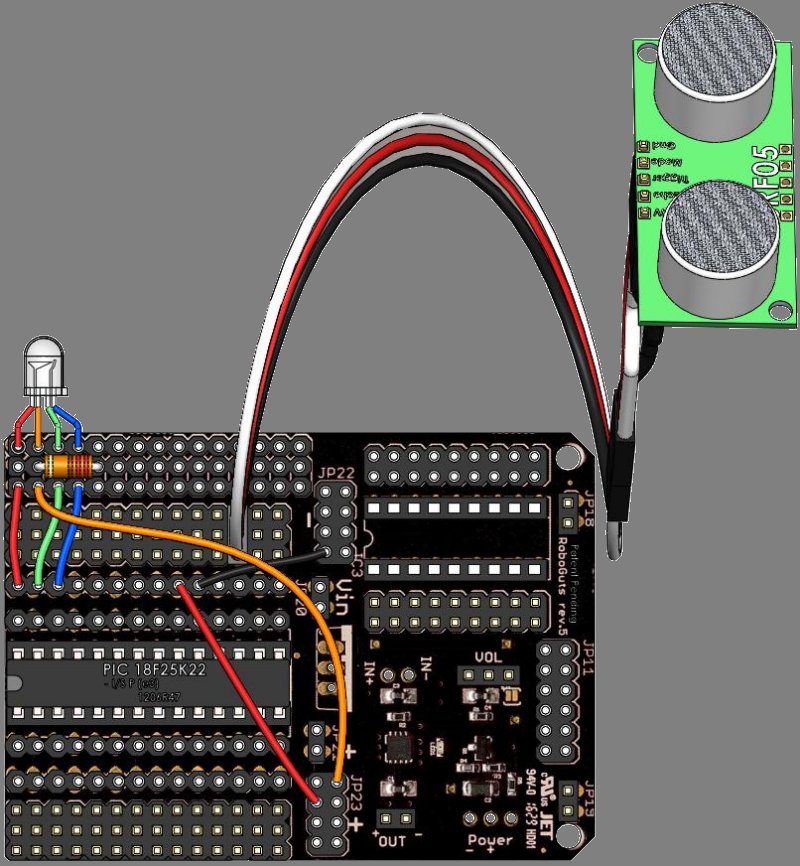

ScardyBot ... Turns to Run Away
increase the turn radius of X0 closer to 180° to run away
ScardyBot ... Turns to Run Away
increase the turn radius of X0 closer to 180° to run away

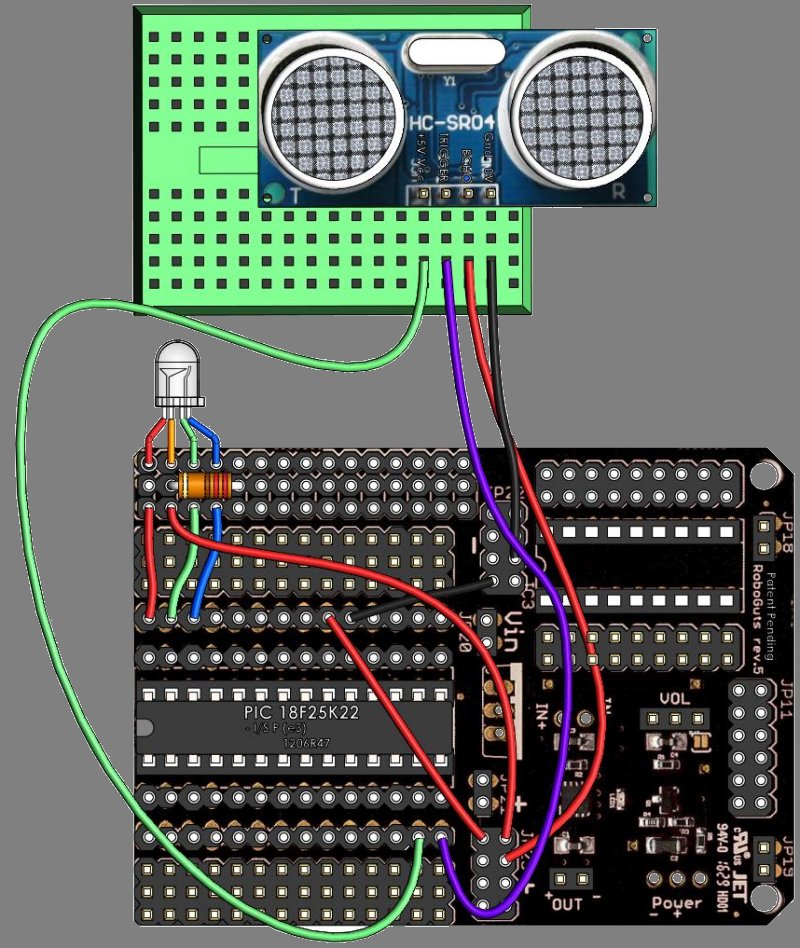

Flip the direction and now you have a Psuedo SumoBot that goes after whatever is close!
Finds something in range and tries to stick to it like a poopie on your shoe!
Project X2 = PIXYbot
The PIXYbot is a miniFloppyBot with a RoboGuts™ and a PIXY CMUcam5.
The bot sees a color, displays the color in its body 3-color LED and speaks about the color it sees.
. . . . . . . . . .
The one caveat to this is you need to have good lighting and bright colors for this sensor to see and
. . . . . . . . . .
recognize colors correctly. Color lights and bacck-lit objects do not work with the PIXY CMUcam5.
Project X3 = Skully ... The Head of the Grim Reaper
A Skull that moves its Jaw and Turns its Neck while it Talks
----------------------------------------------------------------------------------------------------------------
ALL the .STL part files are waiting for KickStarter campaign to be funded.
----------------------------------------------------------------------------------------------------------------

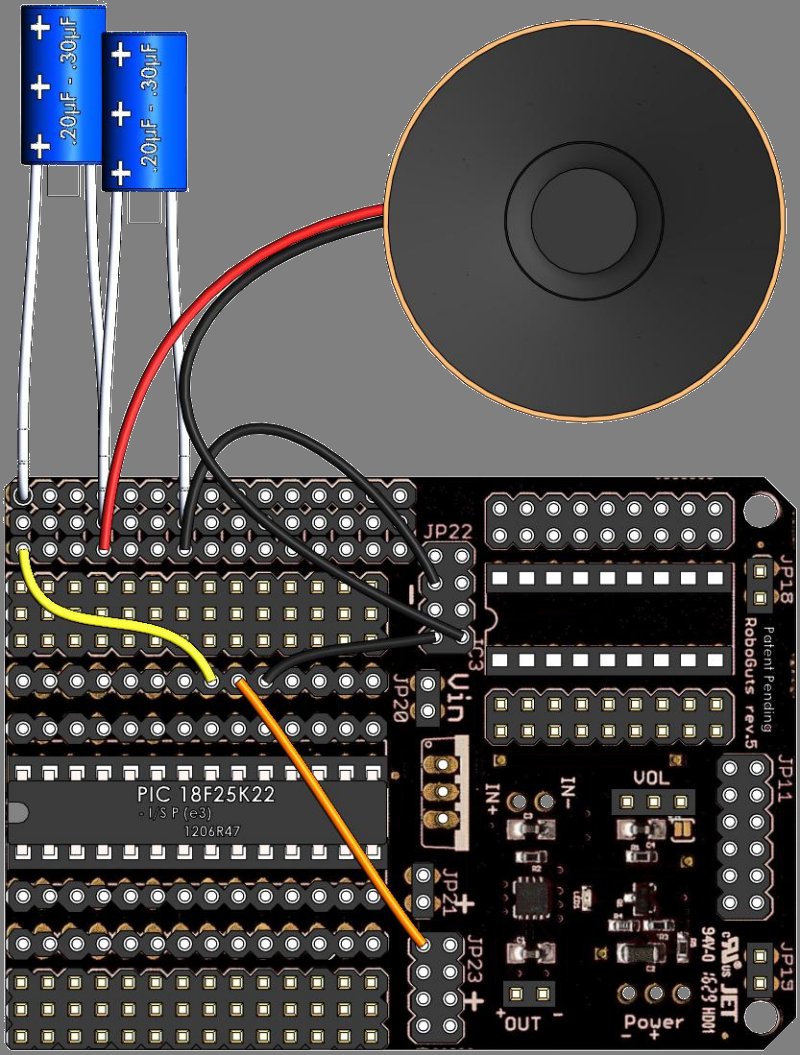

Easy to build other than painting the parts and soldering up the audio amplifier PINs.
The RoboGuts™ are so simple!

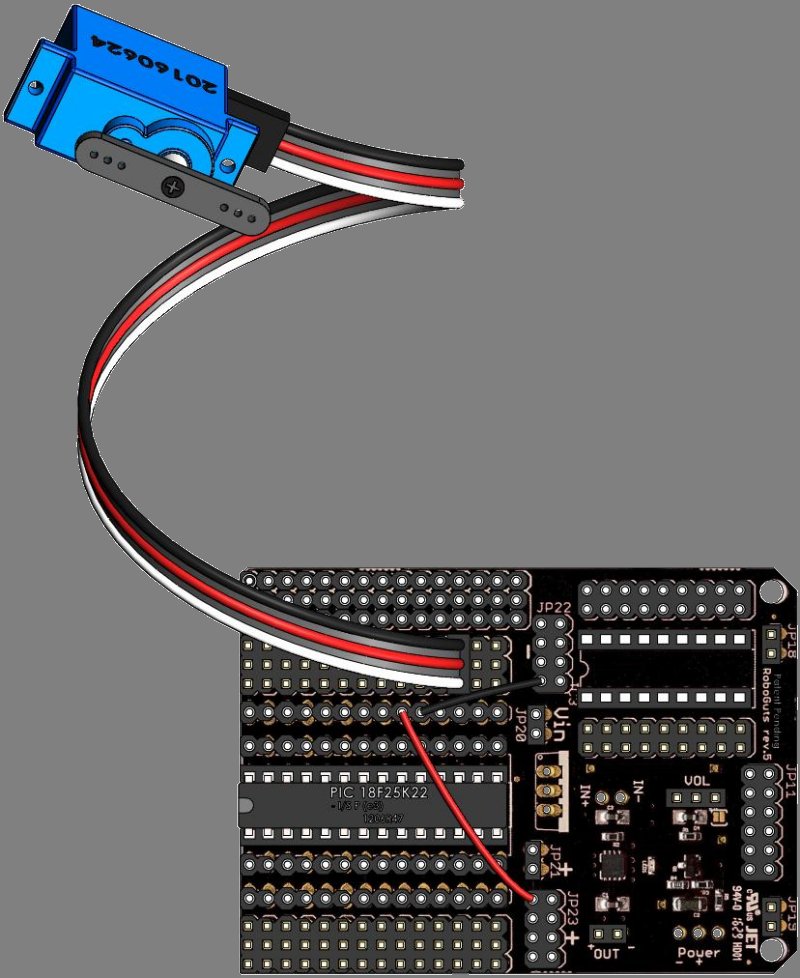

B.0 = Neck, B.1 = RArm, B.2 = LArm, B.3 = RWheel, B.4 = LWheel
B.7 = Red LED, B.6 = Green LED, B.5 = Blue LED

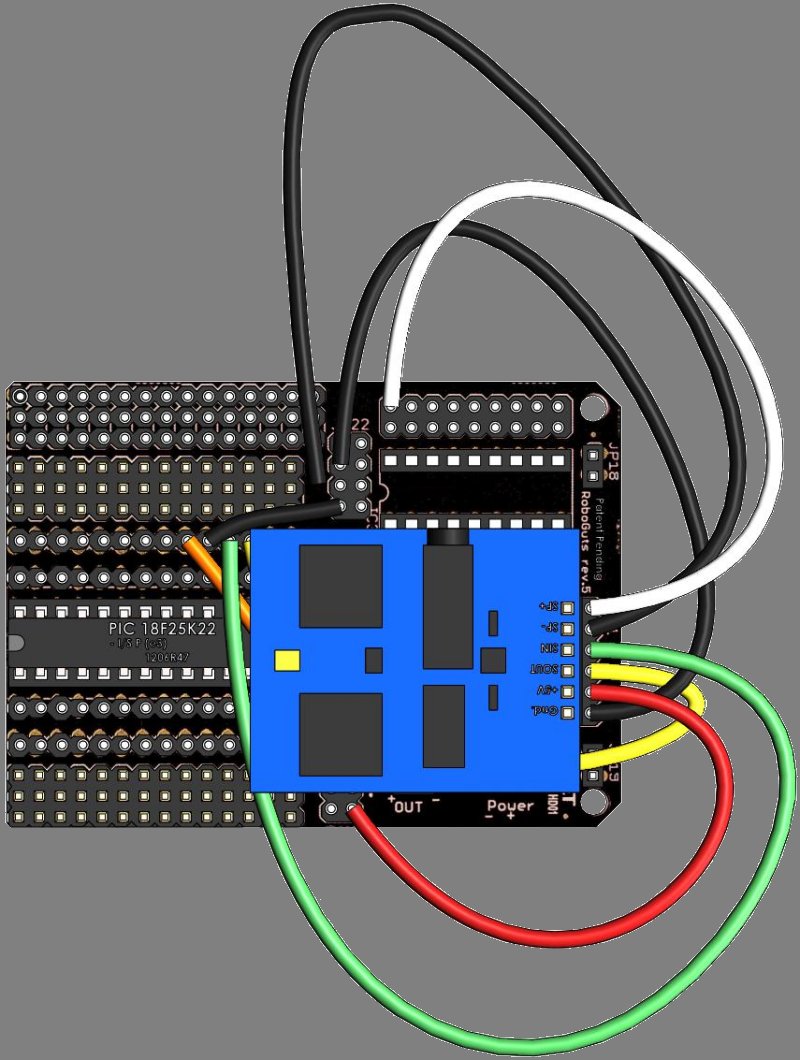

C.0 = Talk & Song
----------------------------------------------------------------------------------------------------------------
ALL the .STL part files are waiting for KickStarter campaign to be funded.
----------------------------------------------------------------------------------------------------------------
Project X5 = Build a miniFloppyBot with OLED Eyes
Designed for the PICAXE 28X2 module with enough memory for all the movements, although smaller chips can still make movable eyes.
