Don't just learn the Arduino Board, learn the ATMEGA328P chip!
You can find all the Arduino/ATMEGA328 program code on the internet

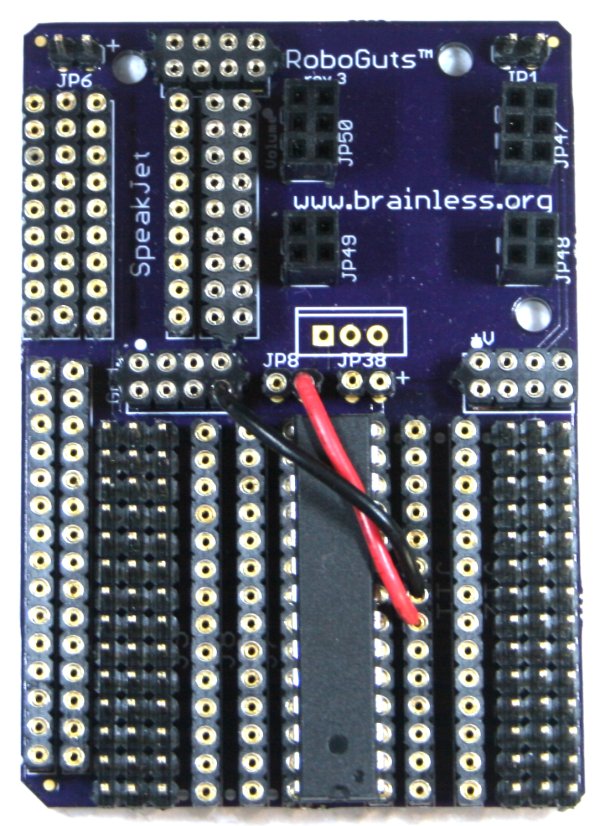

Here you see how it connects to the chip using a RoboGuts™ circuit board
so you can make smaller 1-day projects.


ATMEGA 328P-PU Chip v. Arduino UNO

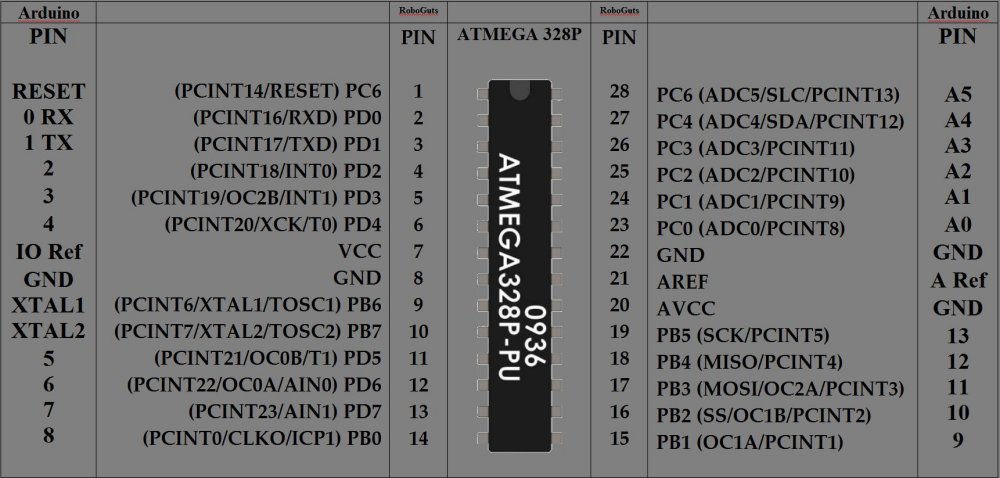

UNO PIN #'s differ from actual chip v. RoboGuts™ uses same PIN #'s as chip!

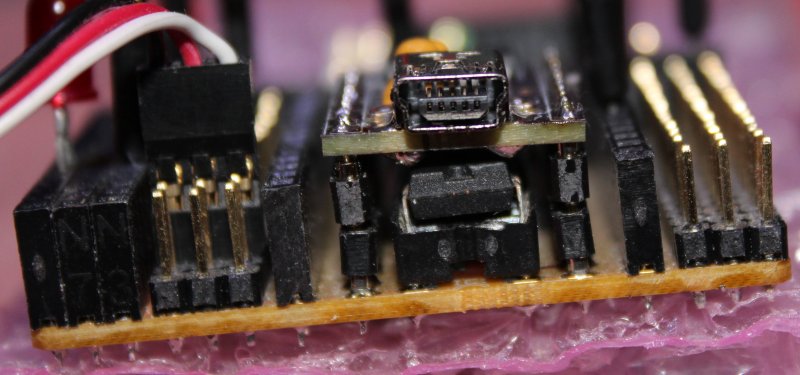

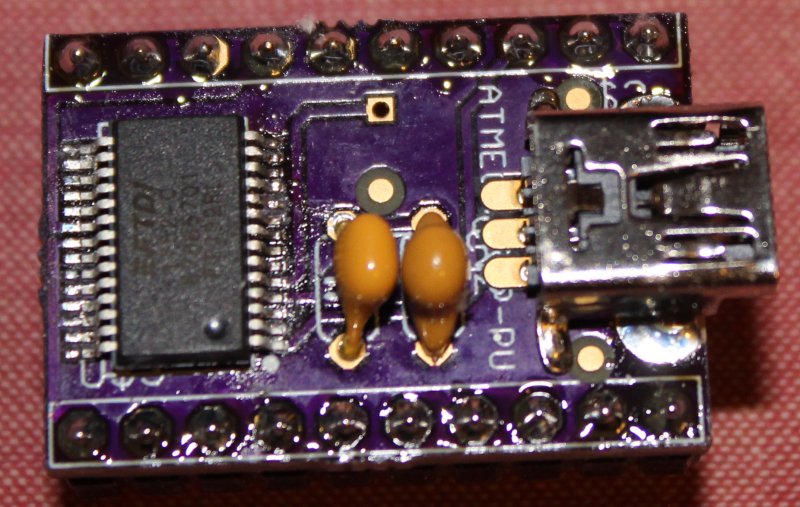

Programming the ATMEGA328P-PU on the RoboGuts™ circuit board
Now it is a smarter Arduino UNO in the same footprint!




Lesson 00 - Power IN

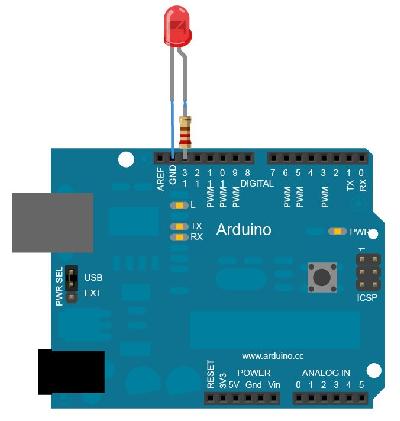

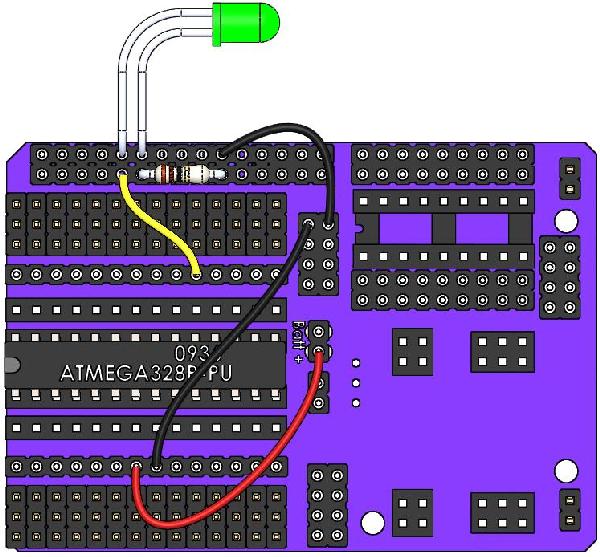

Lesson 01: LED ON & OFF

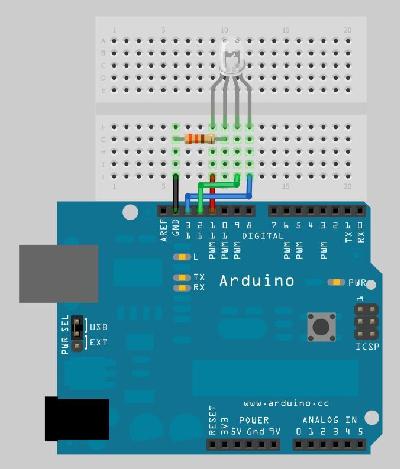

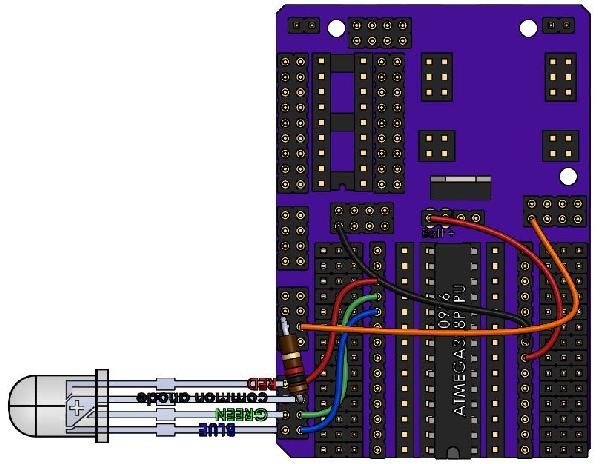

Lesson 2: 3-Color LED ON & OFF, Multi-Colors

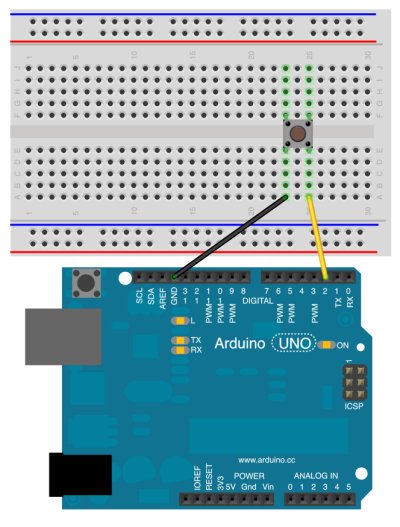

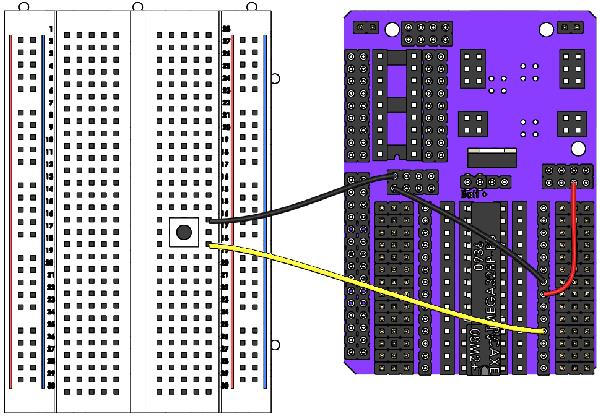

Lesson 3: Momentary Switch ON & OFF

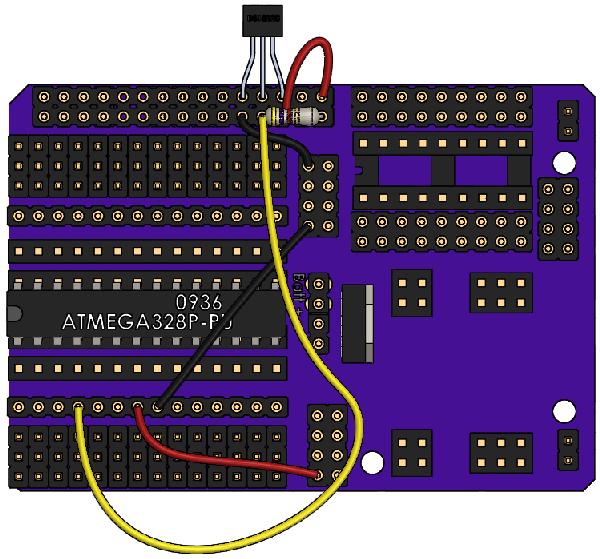

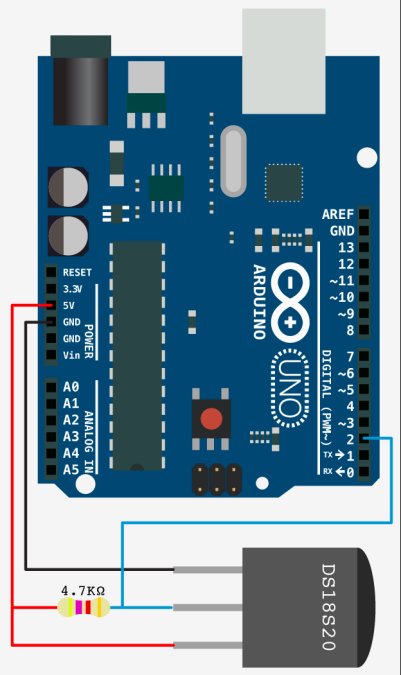

Lesson 4: DS18B20 Temperature

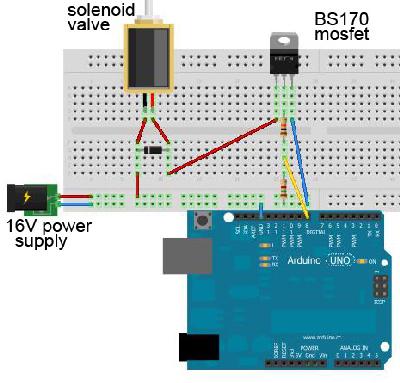

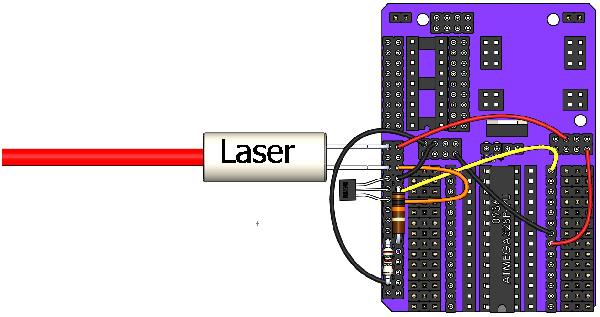

Lesson 5: BS-170 FET & Laser Module

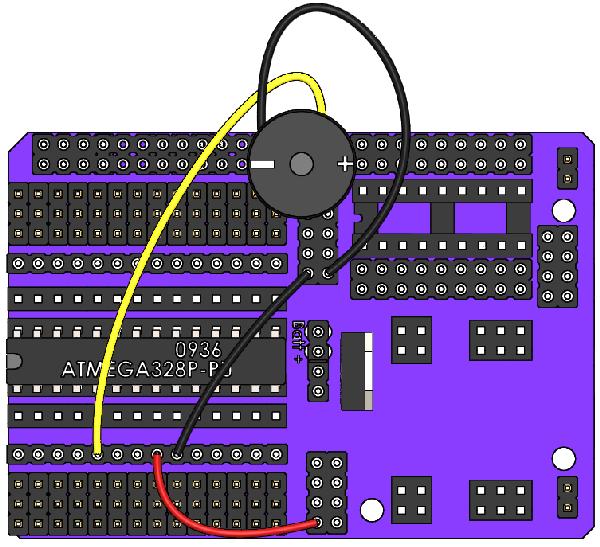

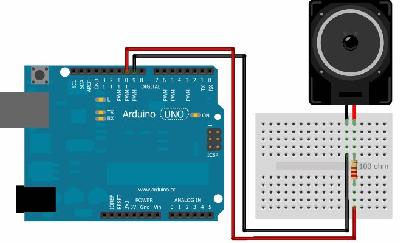

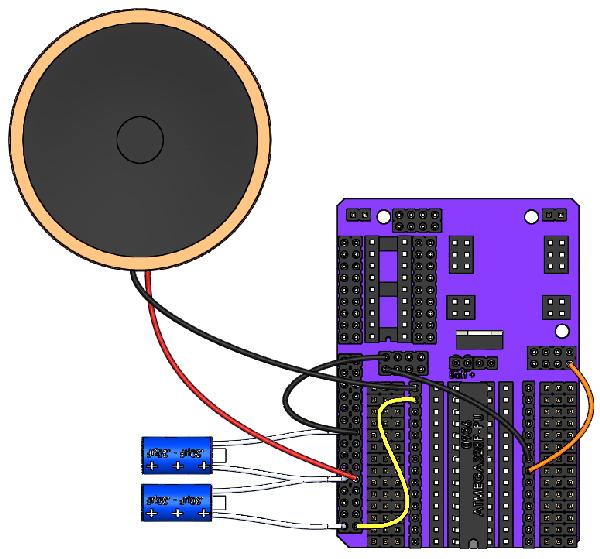

Lesson 6: PC Speaker Sounds & Music

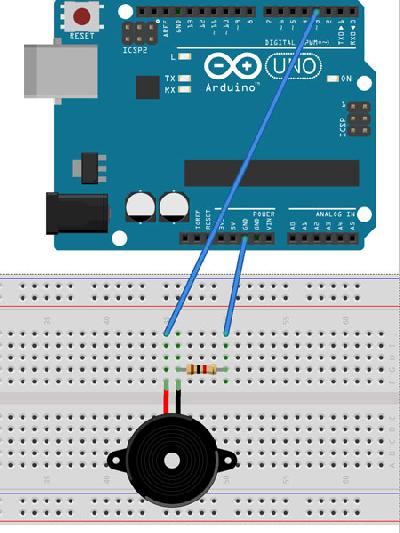

Lesson 7: Piezo Speaker Sounds & Music

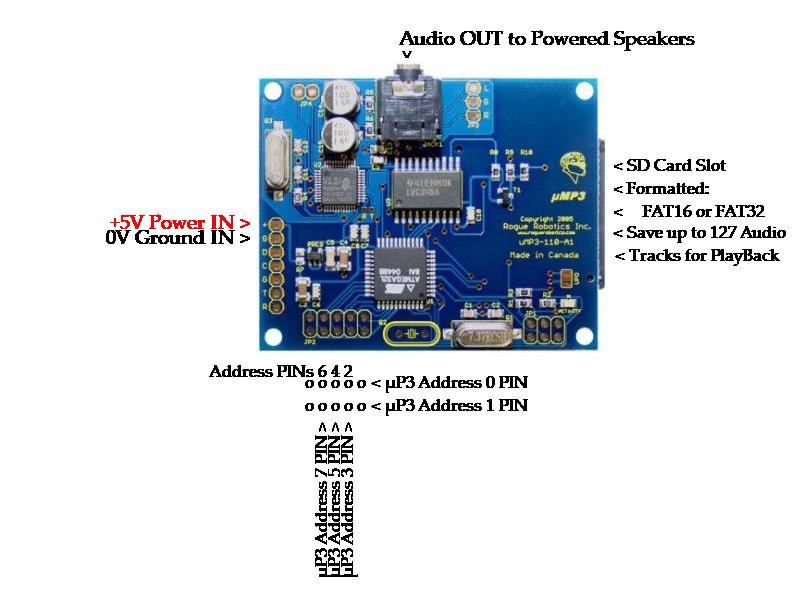

Lesson 8: Rogue Robotics µMP3

Not much different than turning eight LEDs ON and OFF.

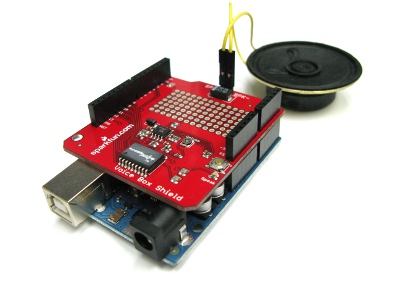

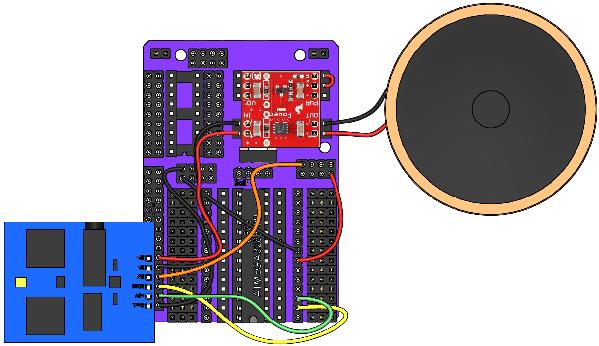

Lesson 9: Parallax Emic2

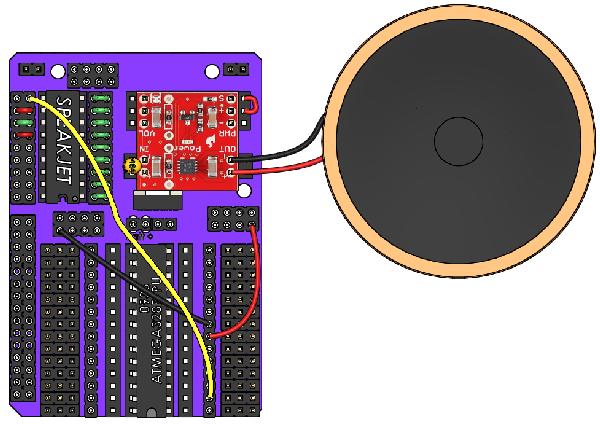

Lesson 10: SpeakJet chip

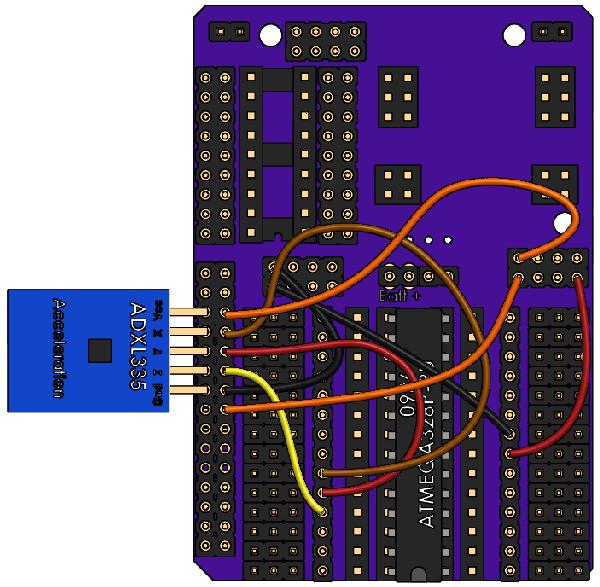

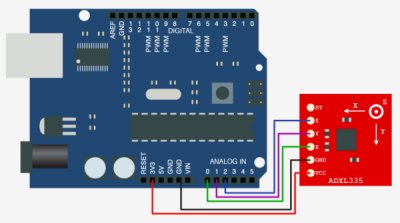

Lesson 11: Acceleration Module ADXL335

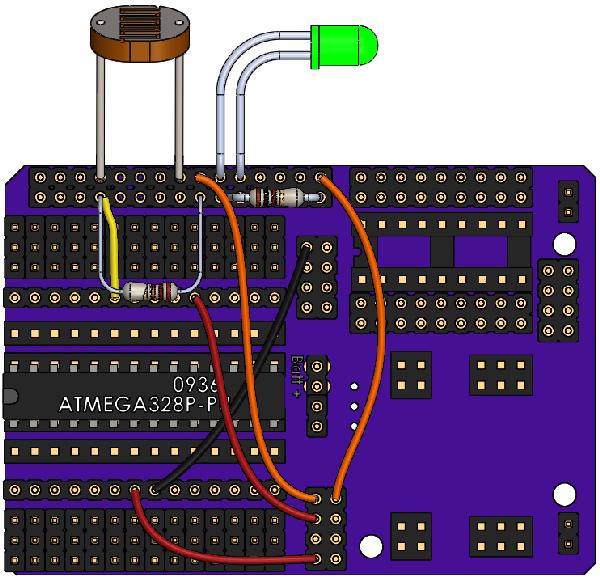

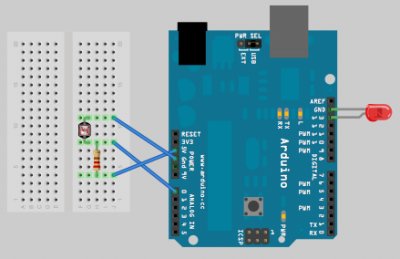

Lesson 12: Light Dependent Resistor or Photoresistor

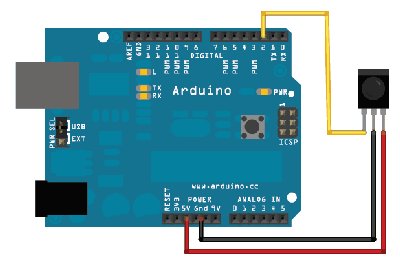

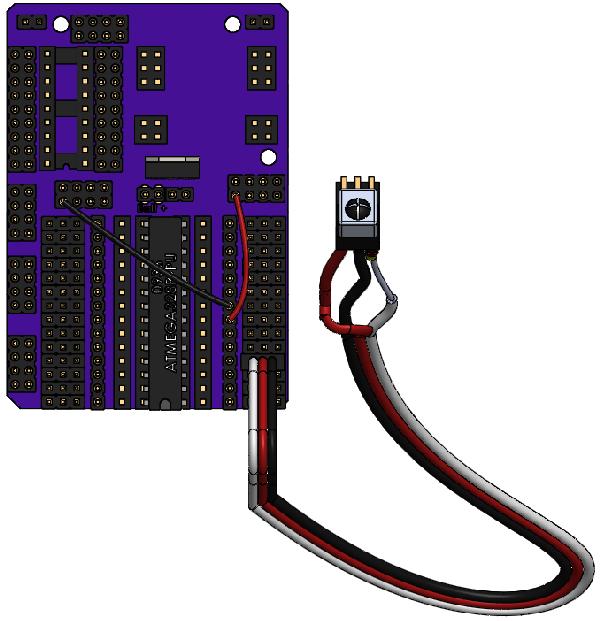

Lesson 13: IRR IR Receiver

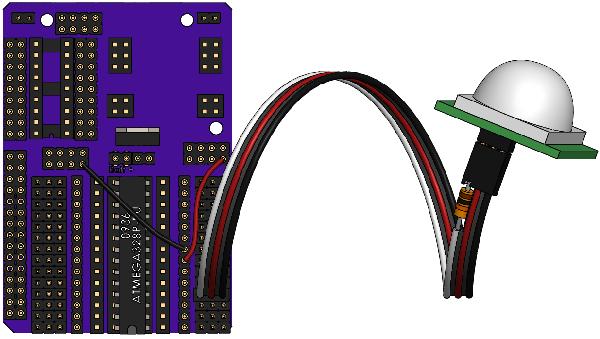

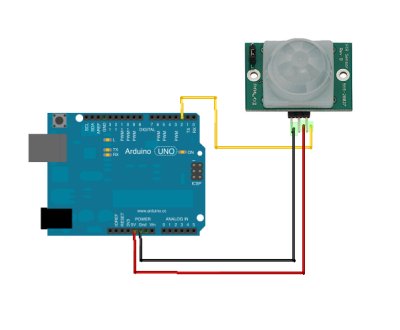

Lesson 14: Parallax PIR

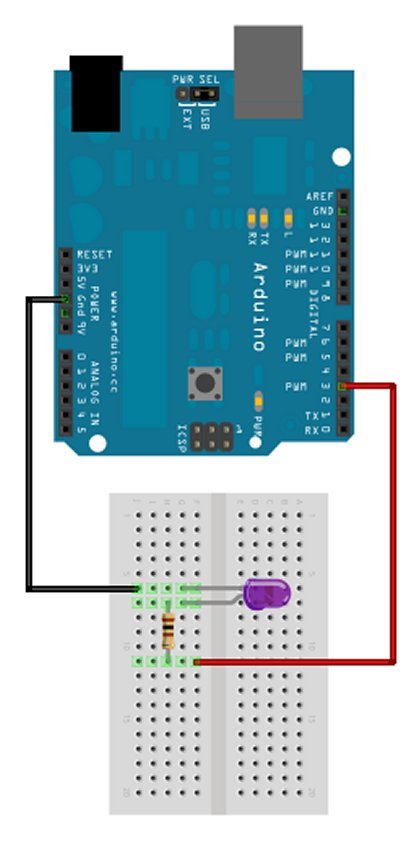

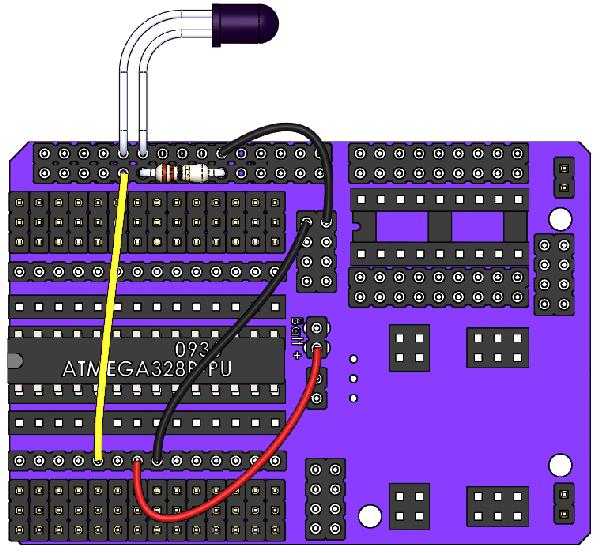

Lesson 15: IR LED

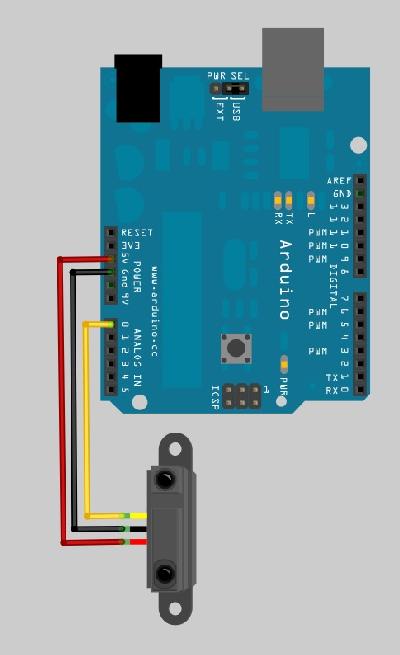

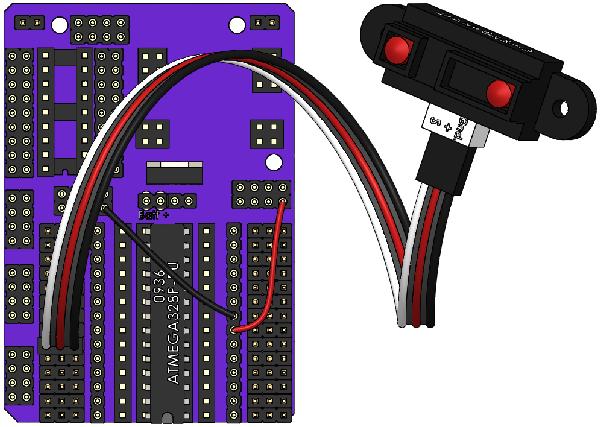

Lesson 16: SHARP GP2D12 IR Range Finder

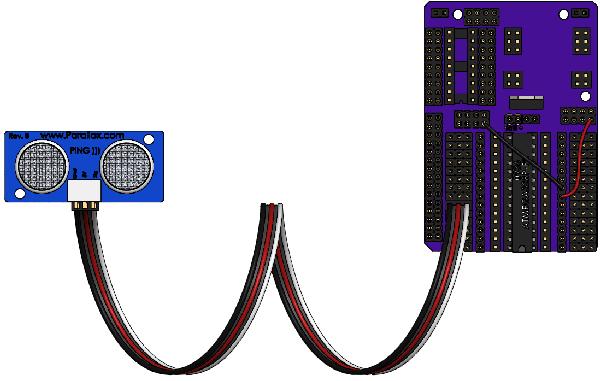

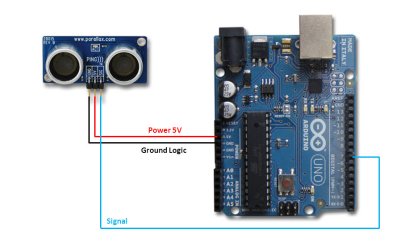

Lesson 17: Parallax PING Ultra Sonic Range Finder

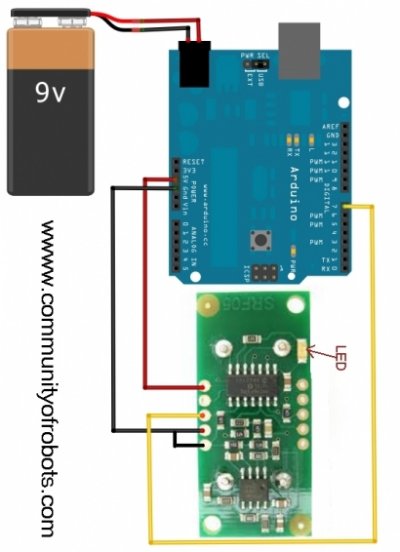

Lesson 18: SRF-05 Ultra Sonic Range Finder

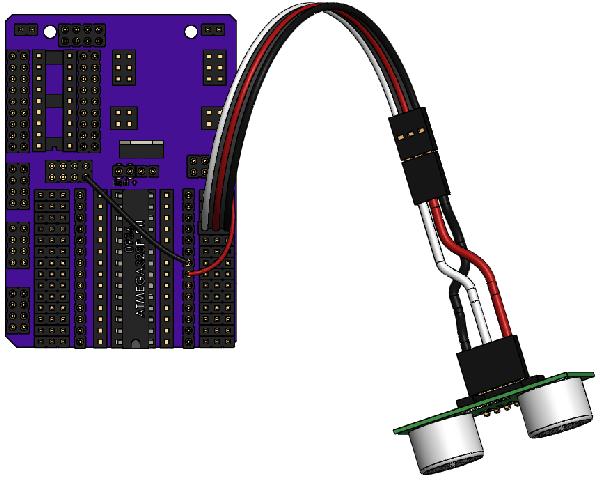

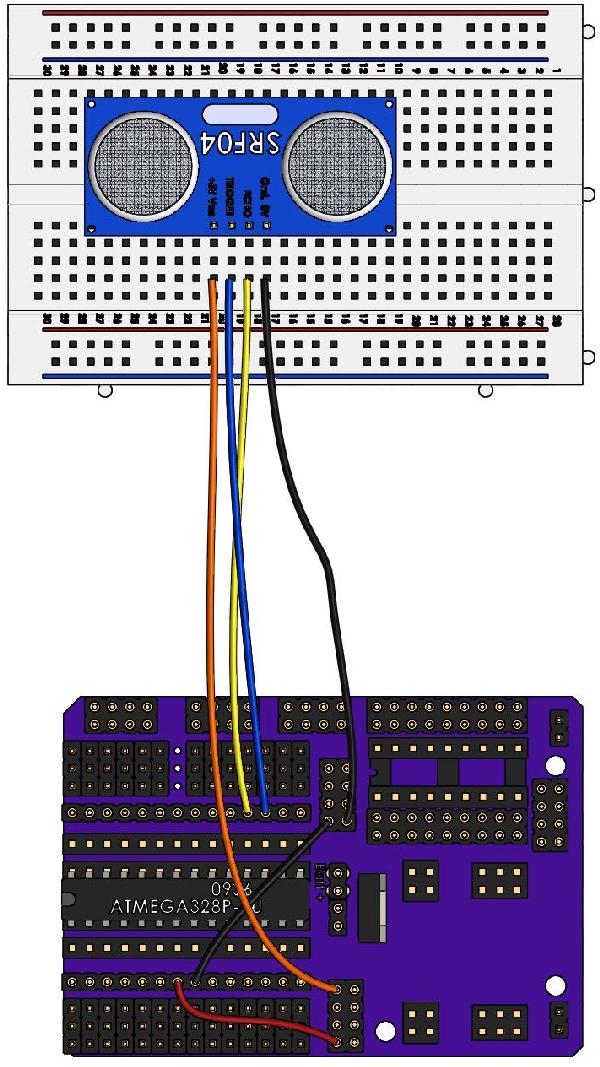

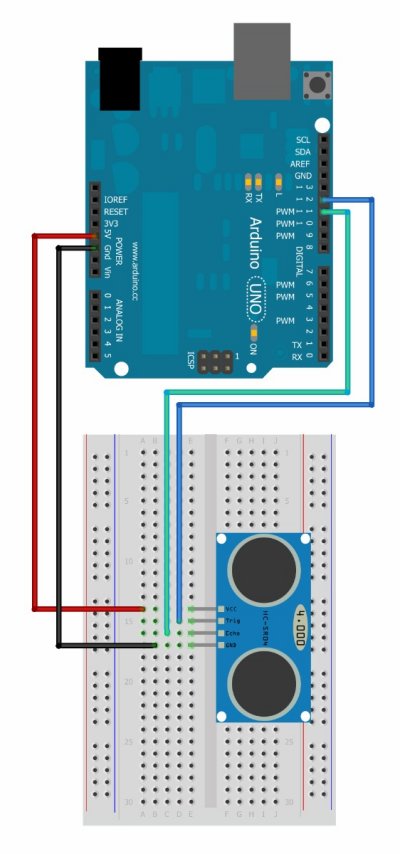

Lesson 19: SRF-04 Ultra Sonic Range Finder

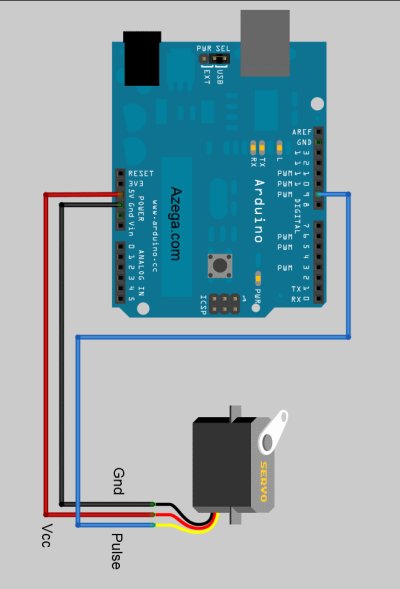

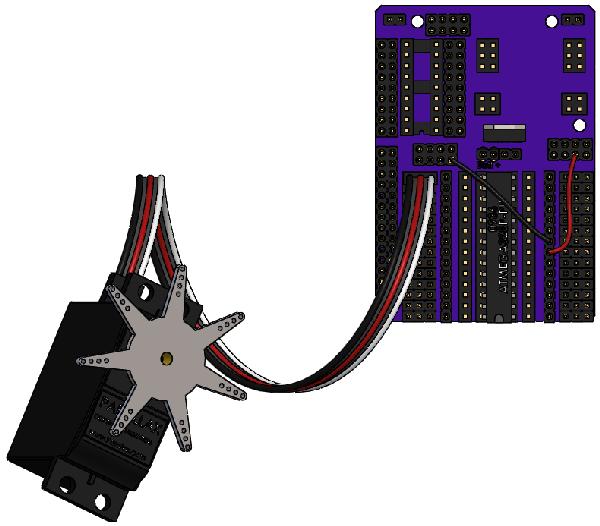

Lesson 20: Standard Servo Motor

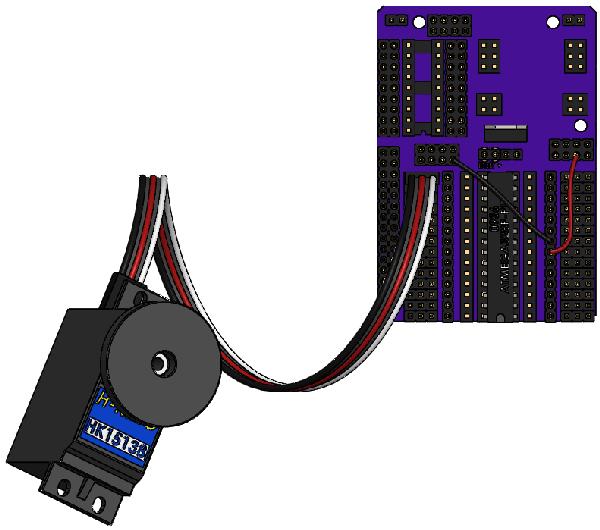

Lesson 21: Continuous Rotating Servo Motor

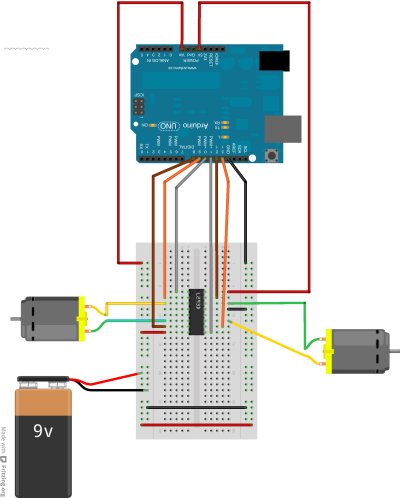

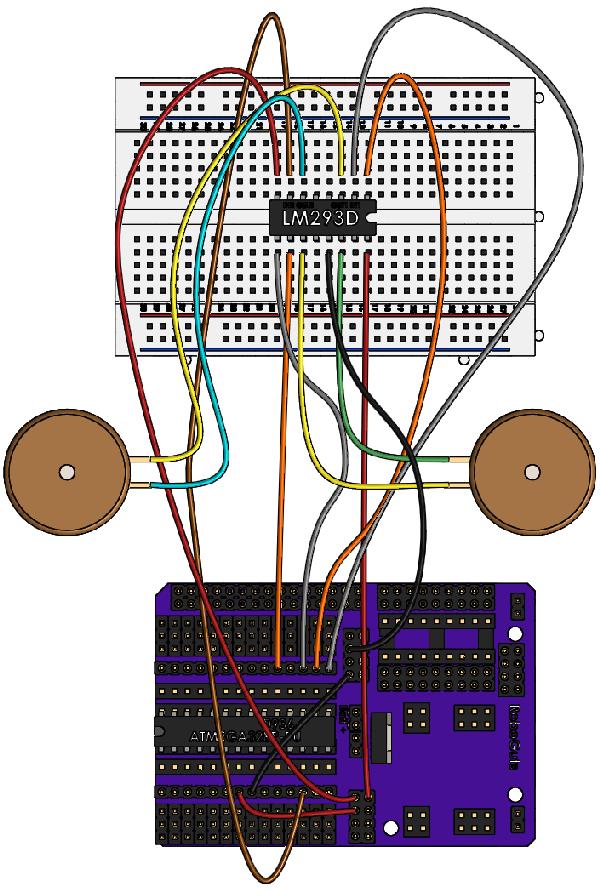

Lesson 22: L293D Motor Driver H-Bridge

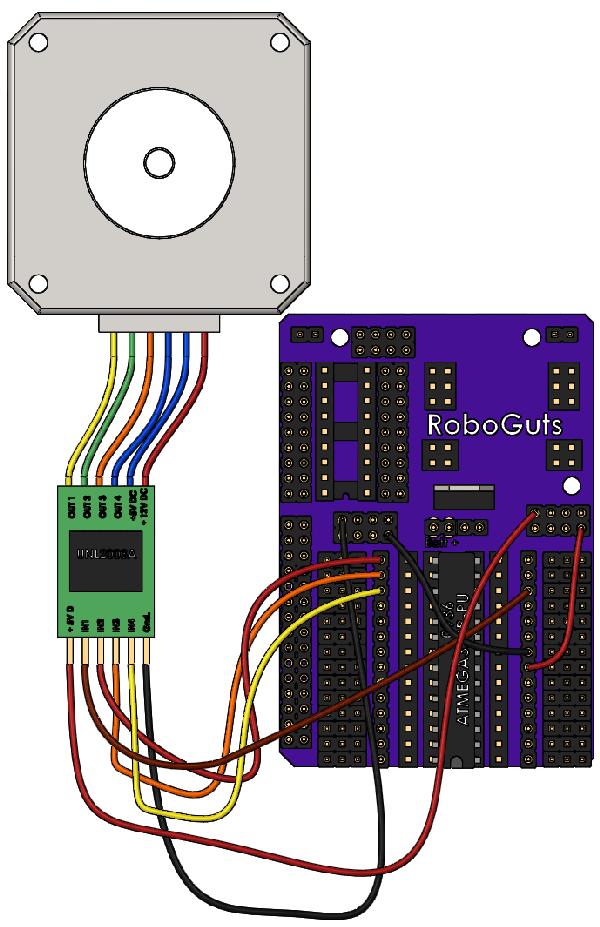

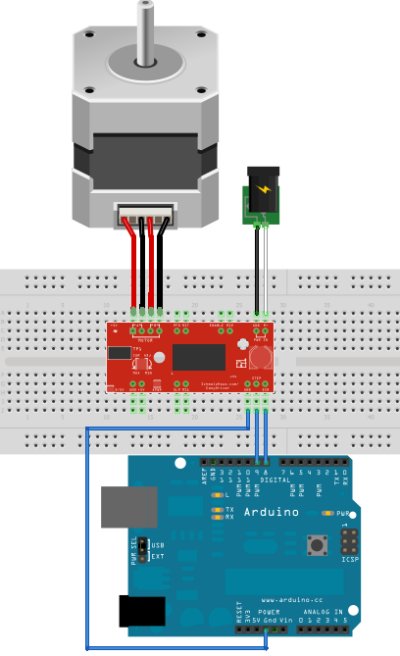

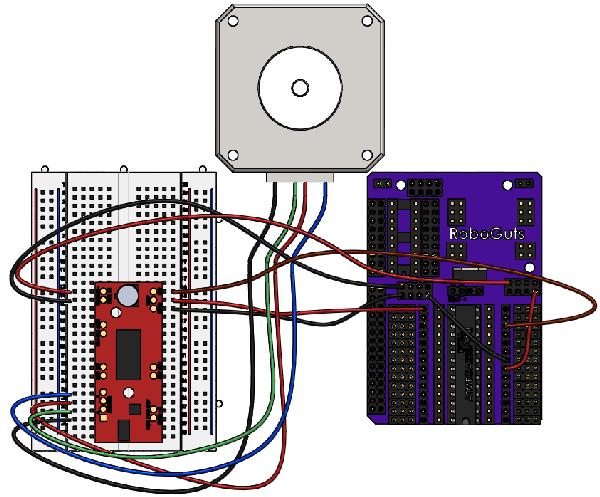

Lesson 23: EasyDriver Stepper Motor Driver

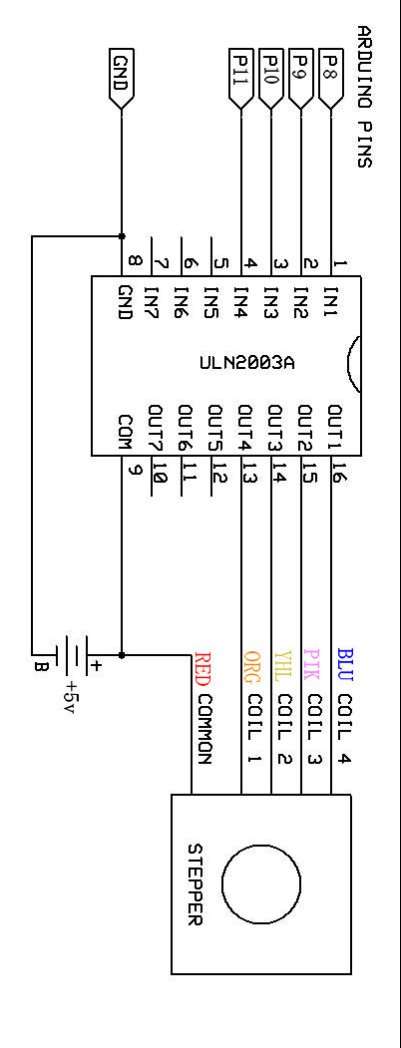

Lesson 24: UNL2003 Stepper Motor Driver

Lesson X0


Lesson X1


Lesson X2


Lesson X3


Lesson X4
