Ready-2-Play Robotics
5t4nd1ng @ th3 3dg3 0f 5p3ct4t10n!

Give a child a toy and they're happy for an hour.
Teach a child how to make their own toys, and they're happy for life!


Don't just learn the Programming Board, learn a chip!

You can find all the programming code on the internet, but buy a RoboGuts™ Kit and get all sorts of reference code in one place!

Here you see how a chip connects to the RoboGuts™ circuit board so you can build projects in one day.

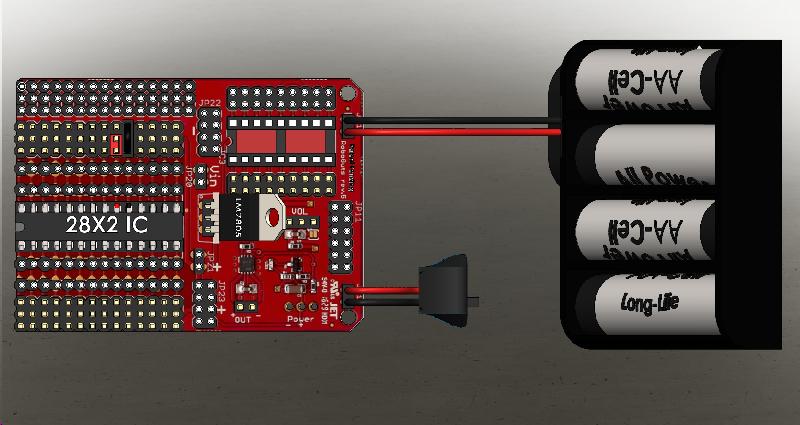

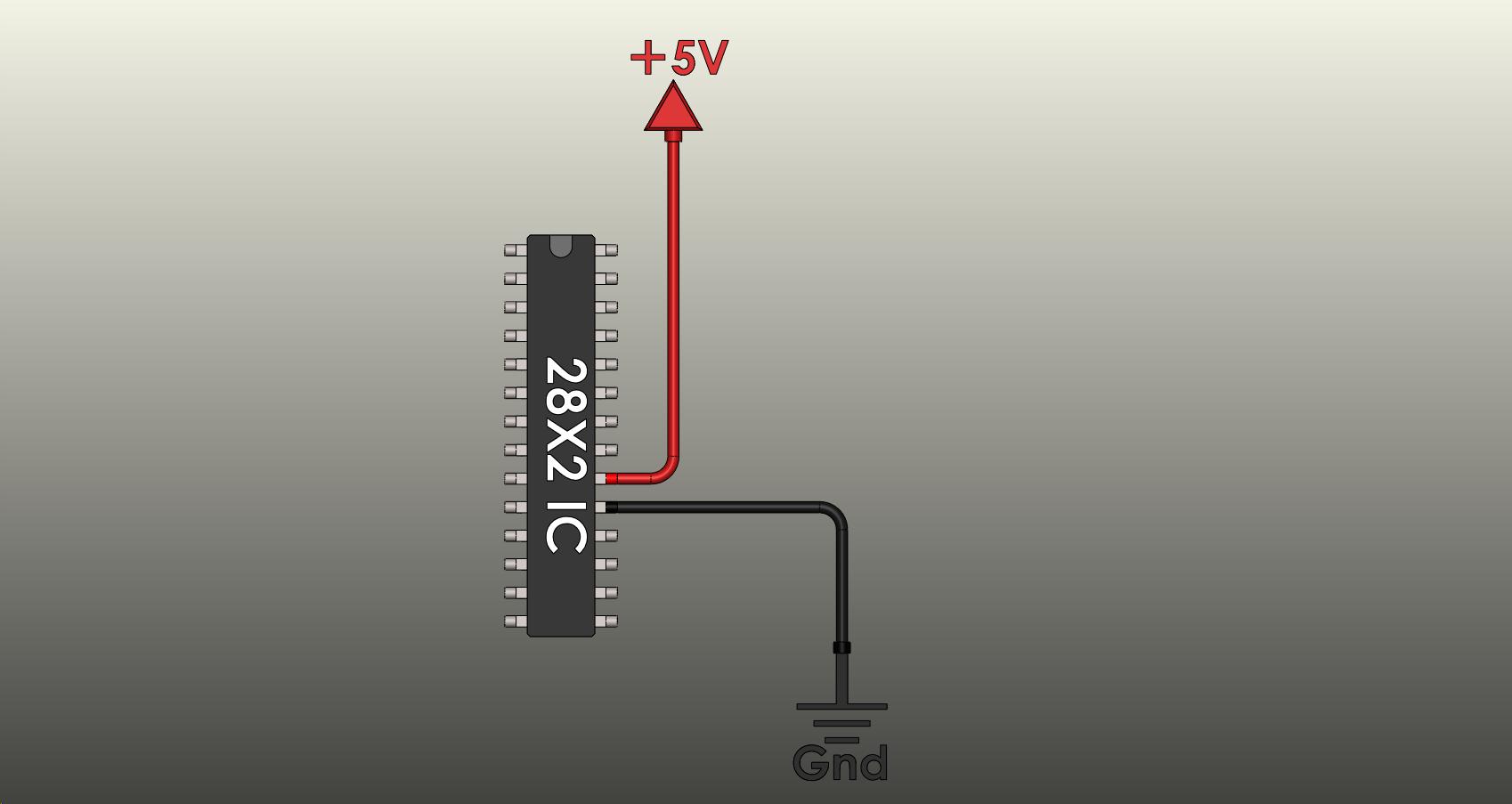

Experiment 00 Power IN

JP20 is tied directly to the Battery IN V+/Vin male header of RoboGuts™ circuit board at JP18
Power IN for the PICAXE 28X2 chip is 4.5V to 5V DC

Various ways to power the RoboGuts™ circuit board
Experiment-00-4.5V-5V ... Experiment-00-6V-12V

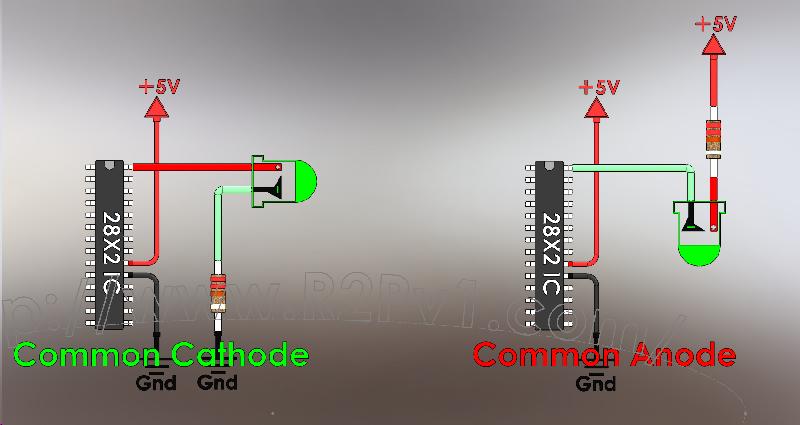

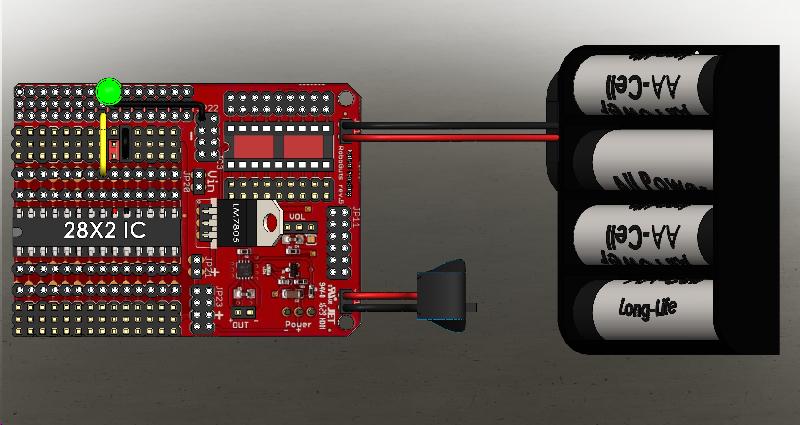

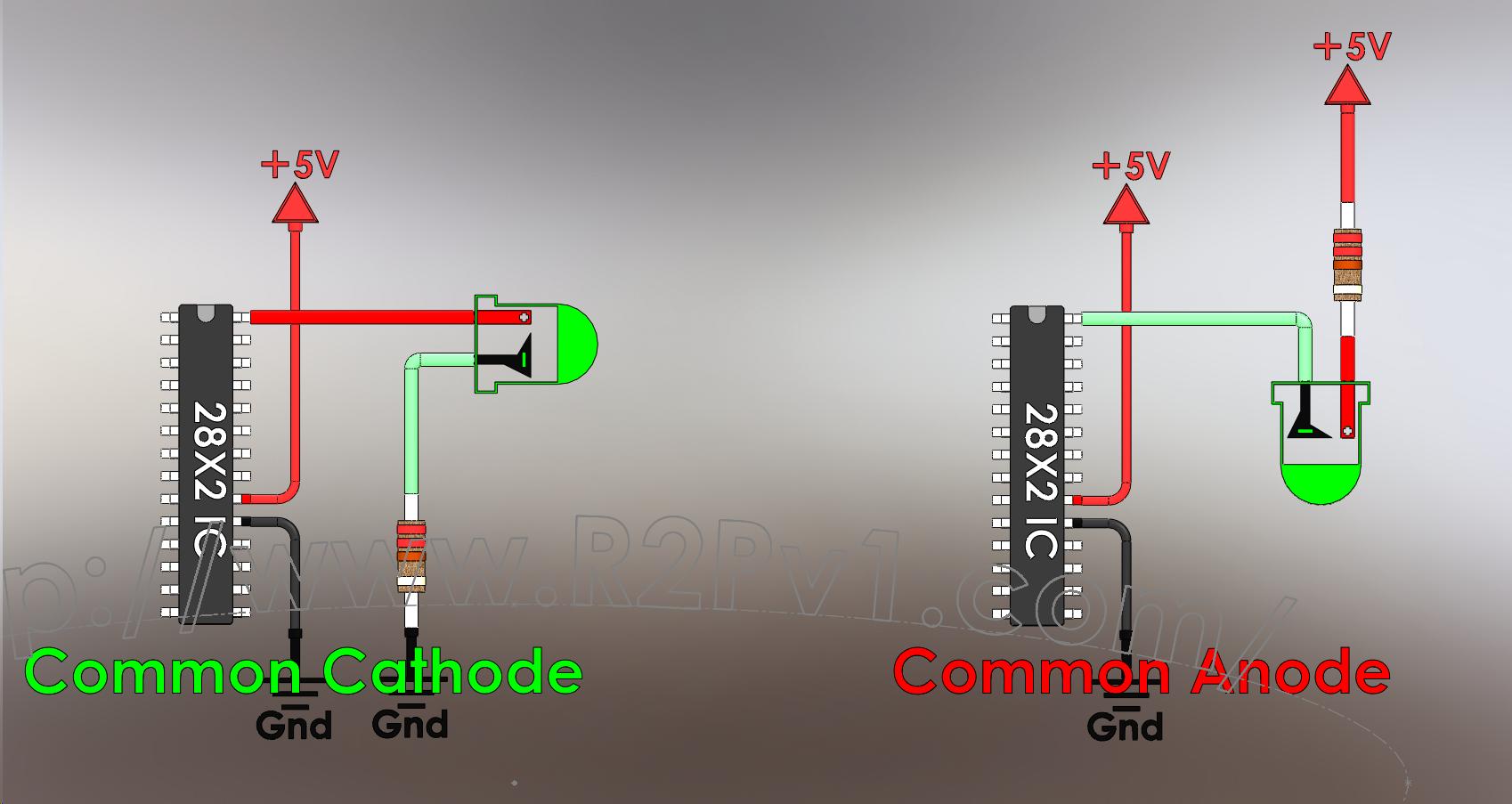

Experiment 1: LED ON & OFF

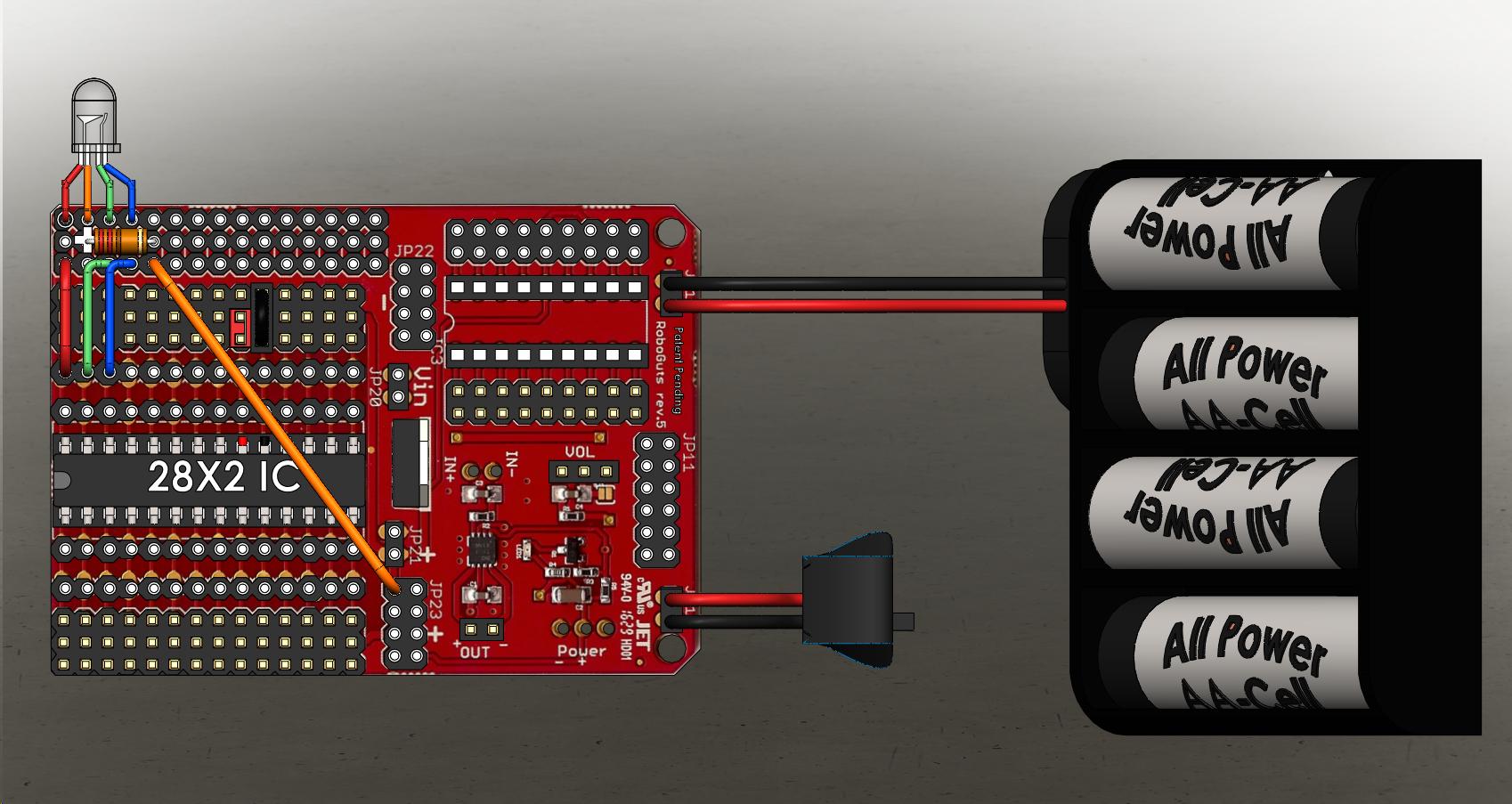

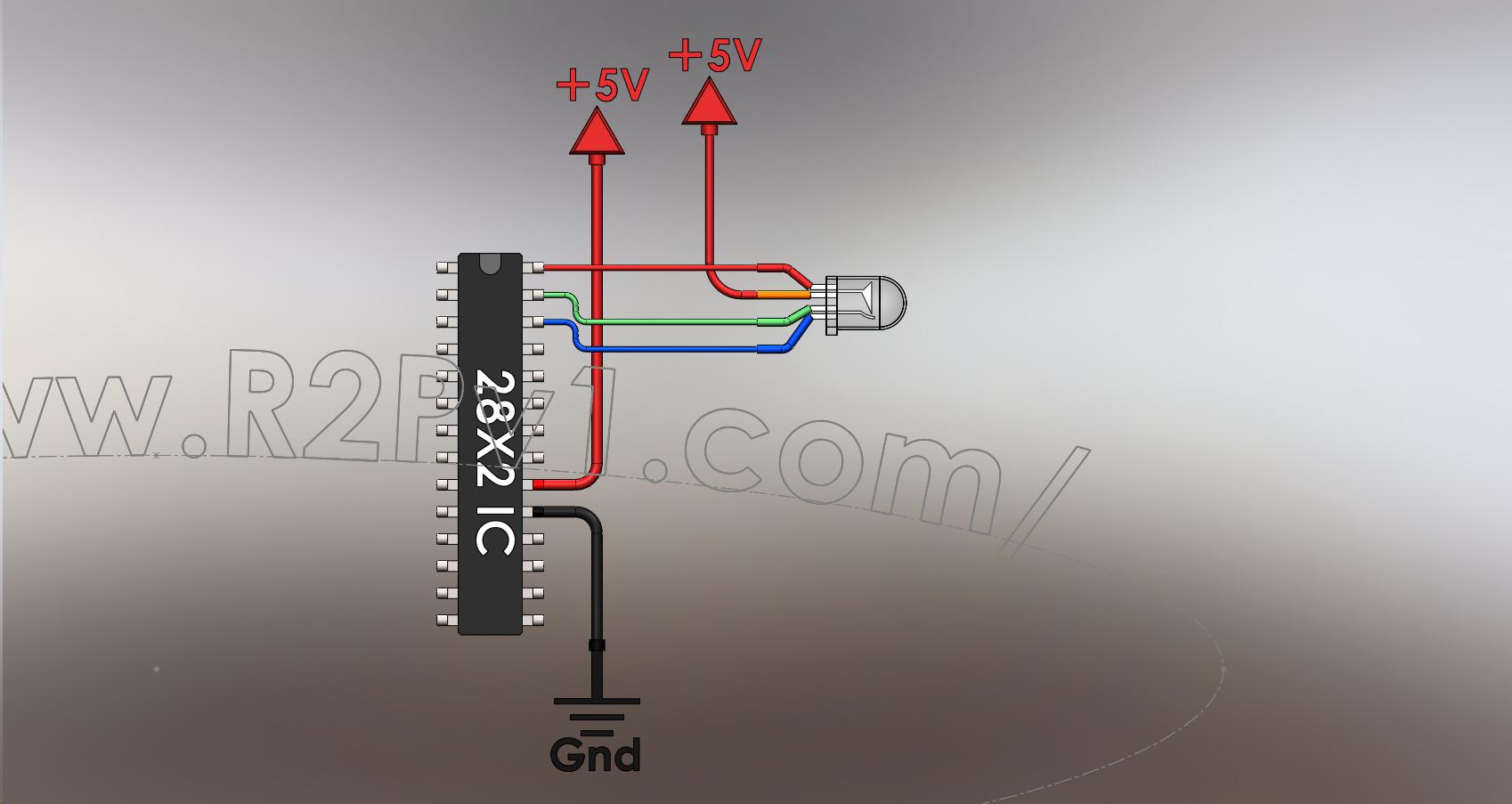

Experiment 2: 3-Color LED ON & OFF, Multi-Colors

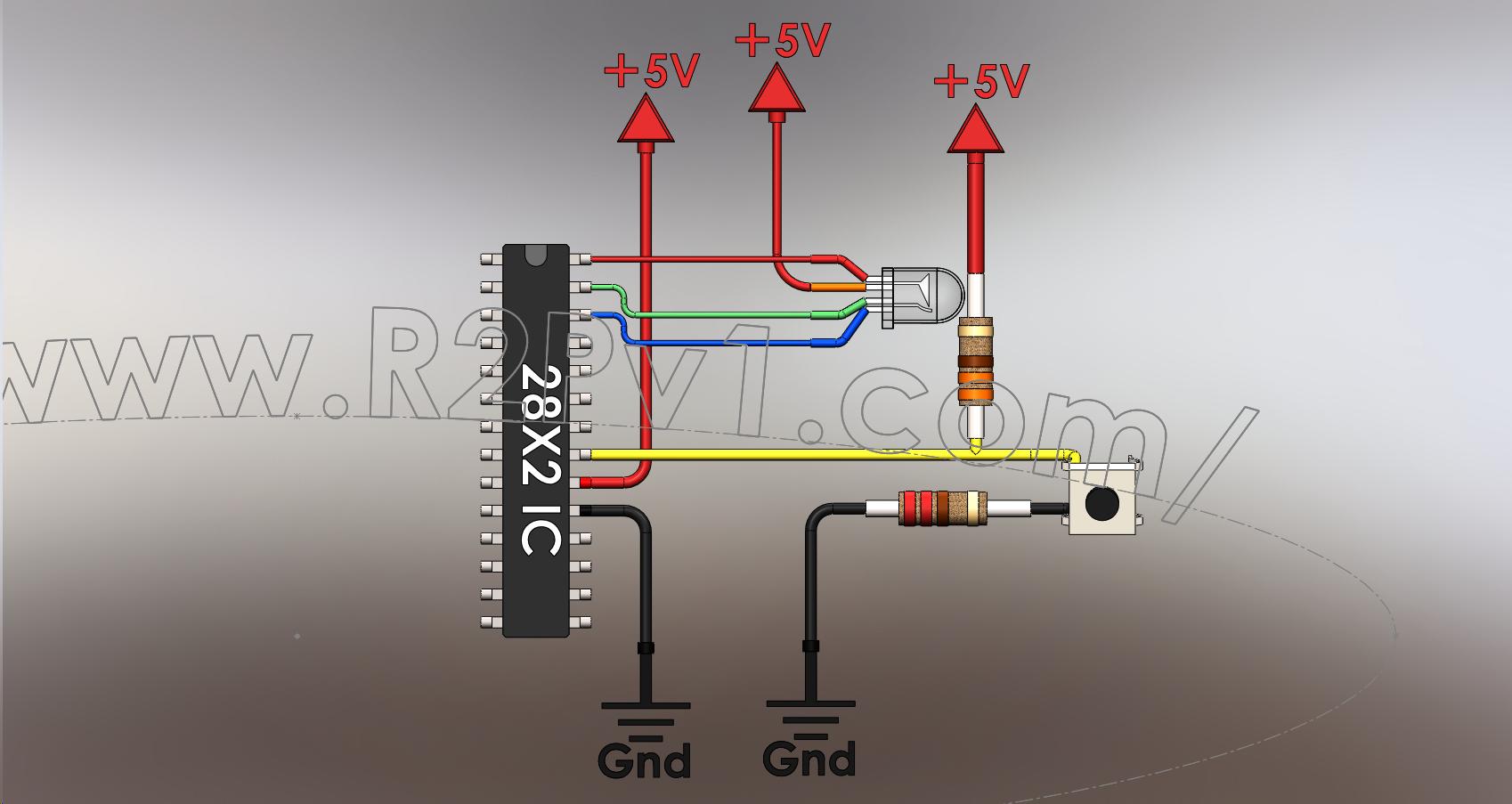

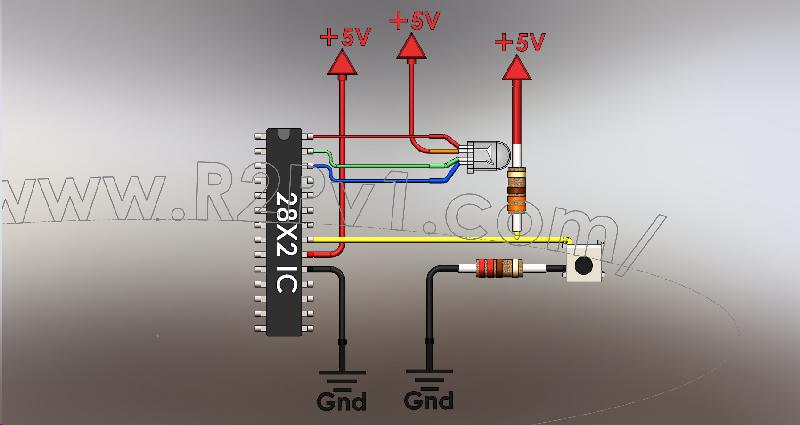

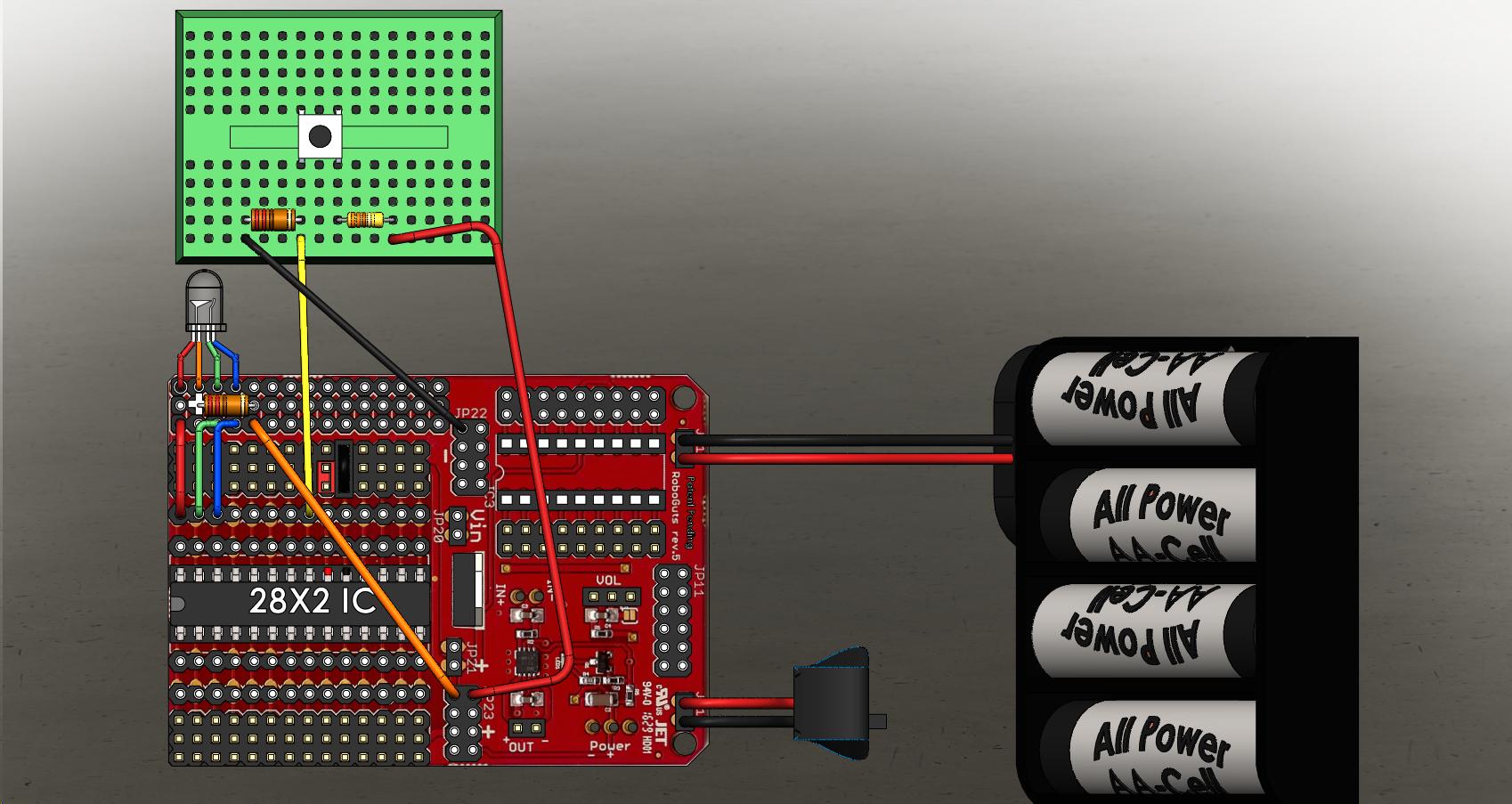

Experiment 3: Momentary Switch ON & OFF

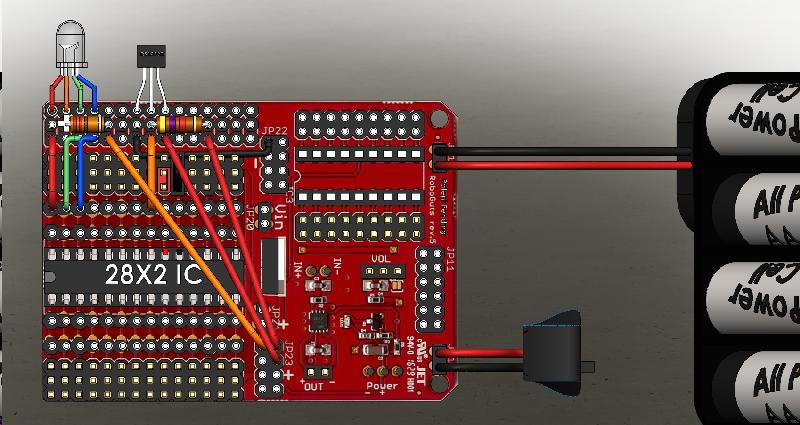

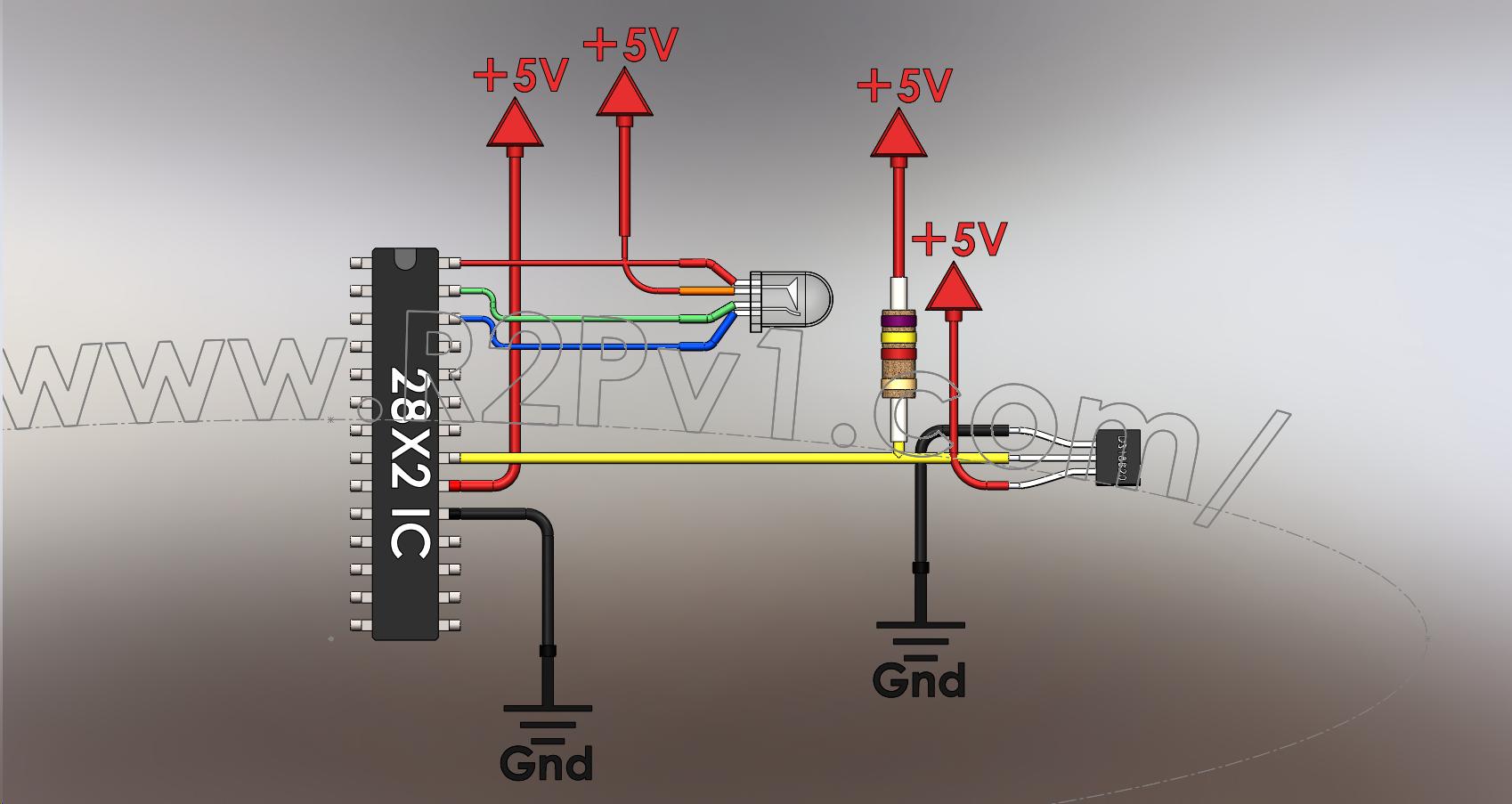

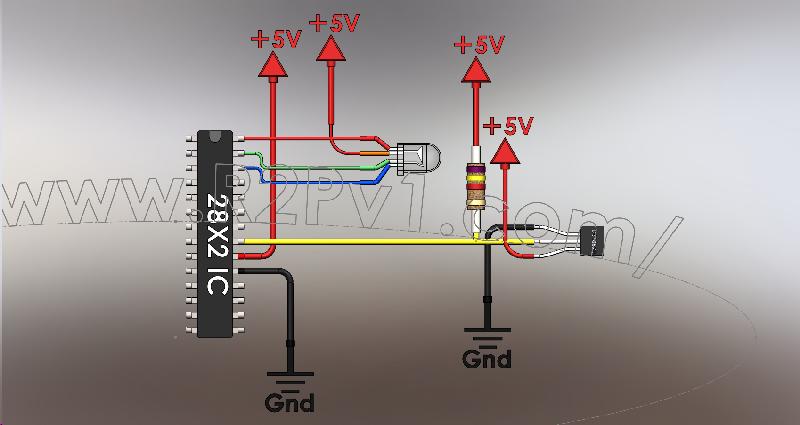

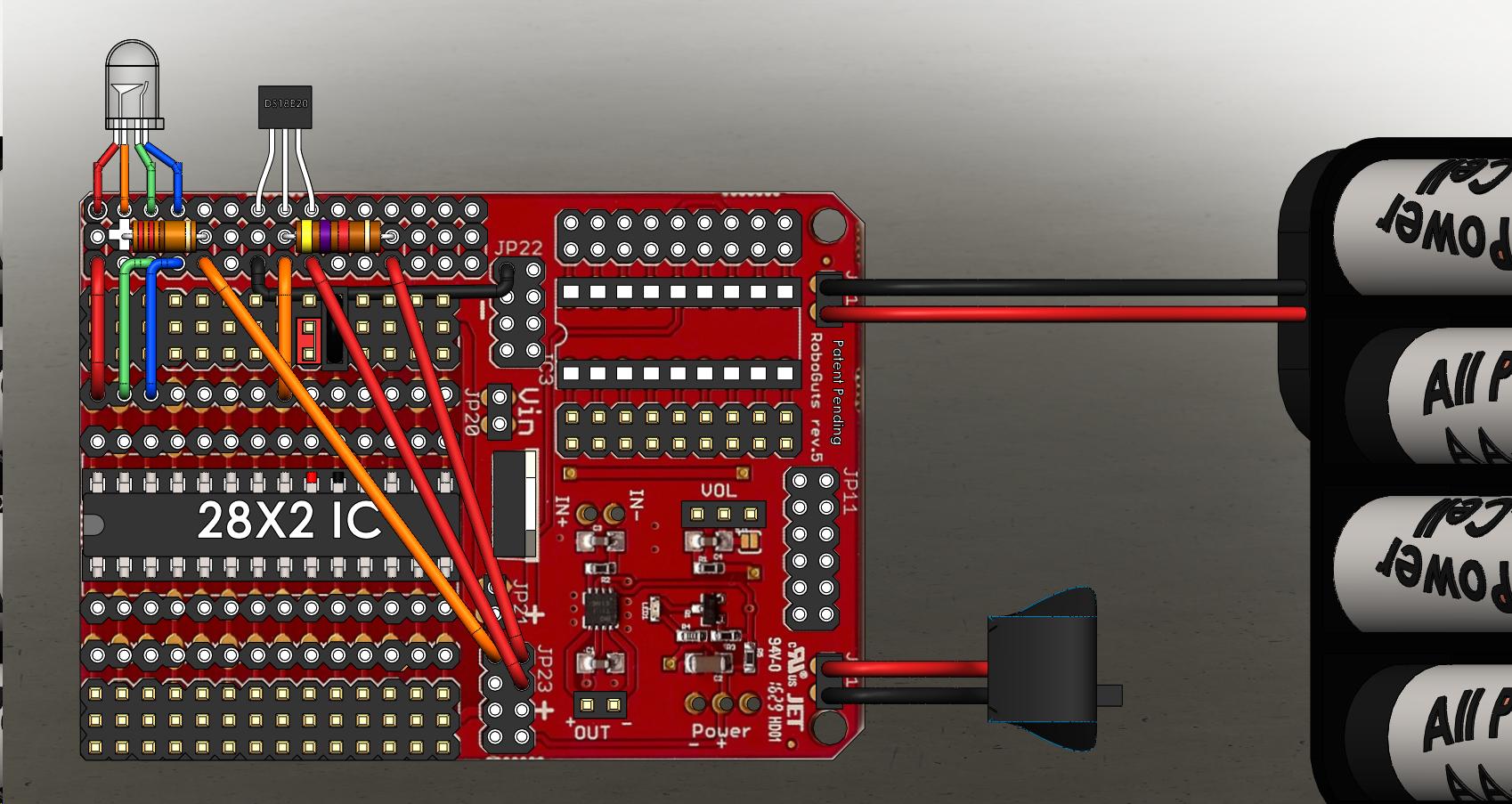

Experiment 4: DS18B20 Temperature

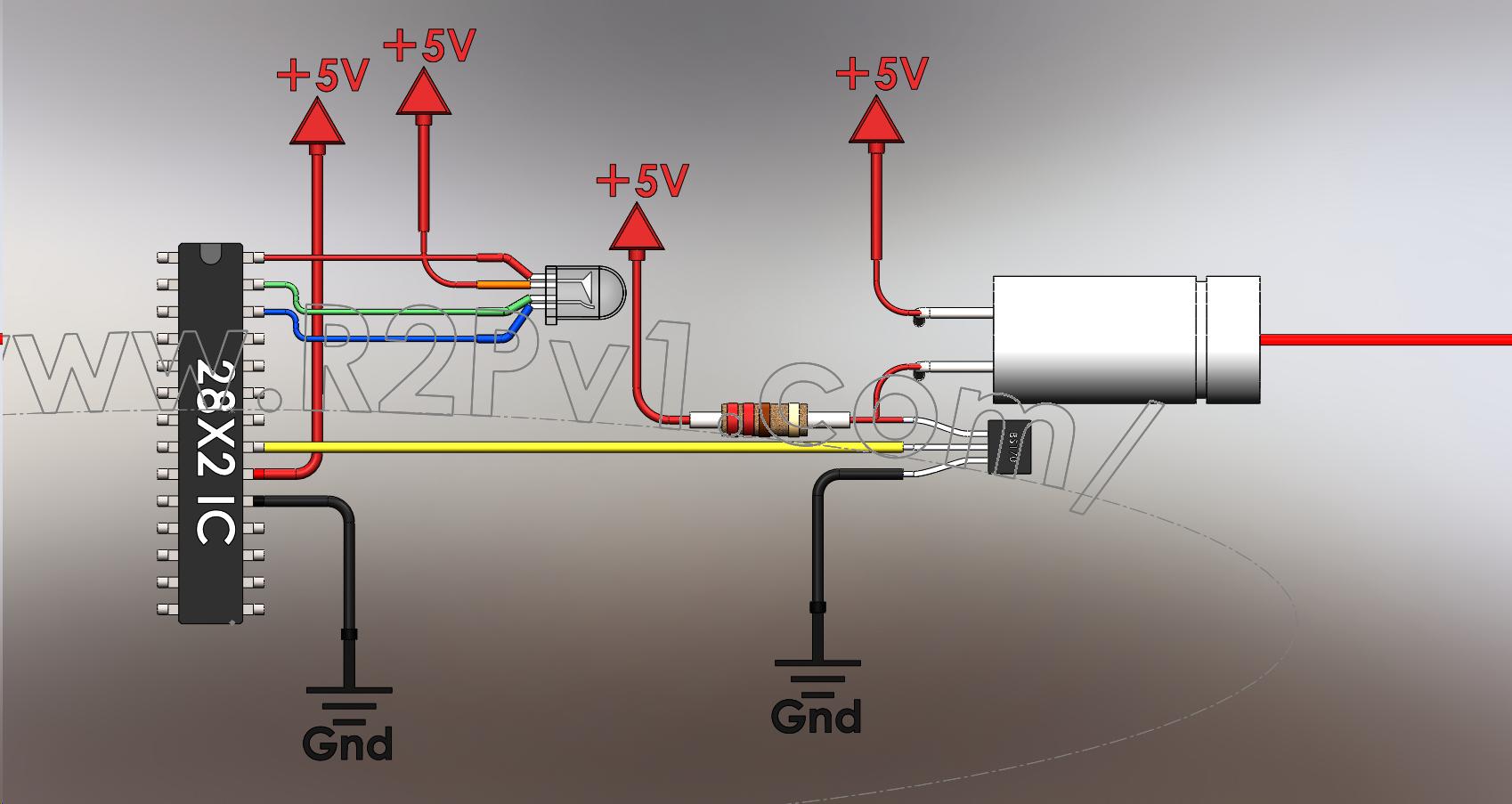

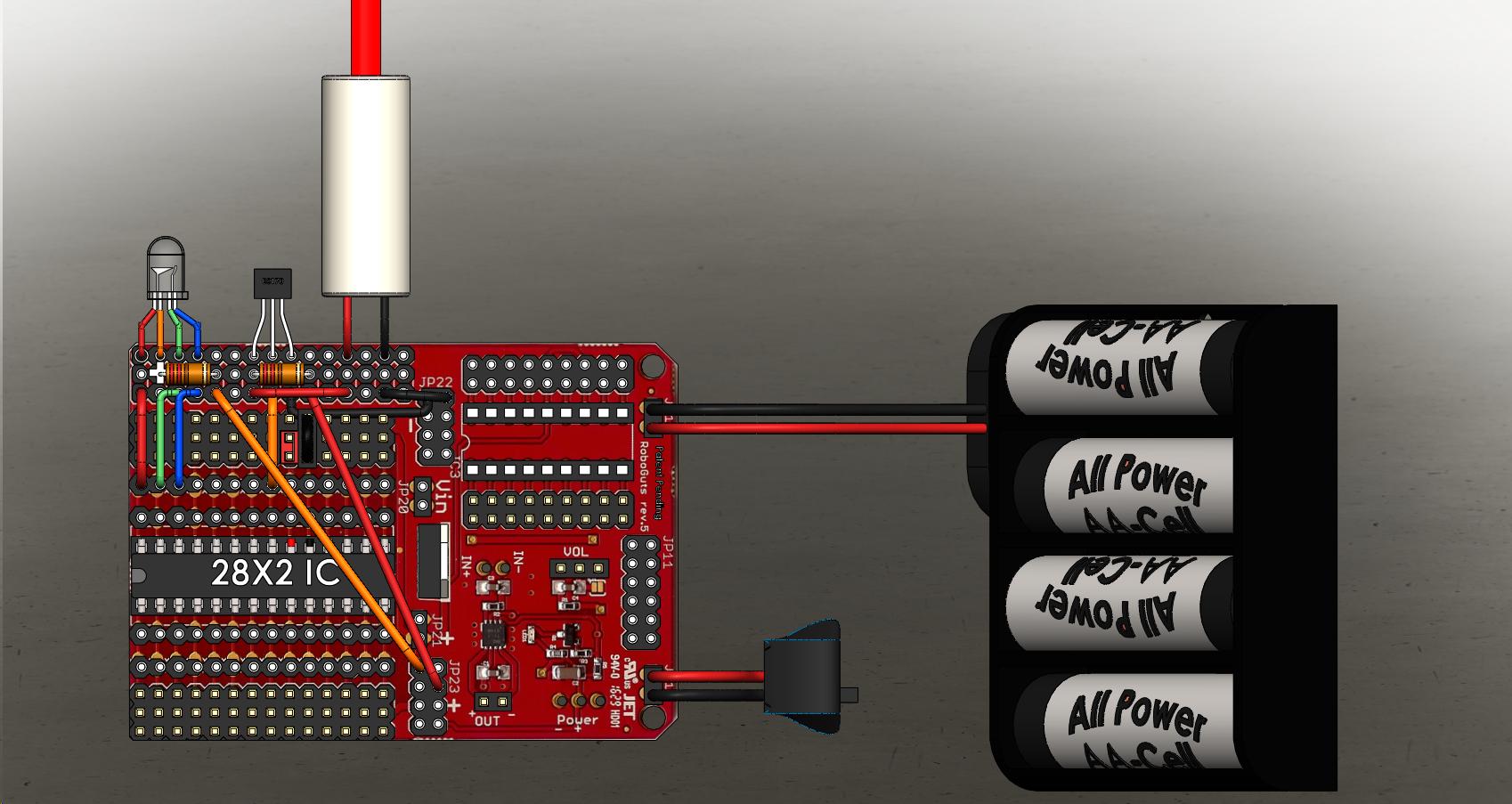

Experiment 5: BS-170 FET & Laser Module

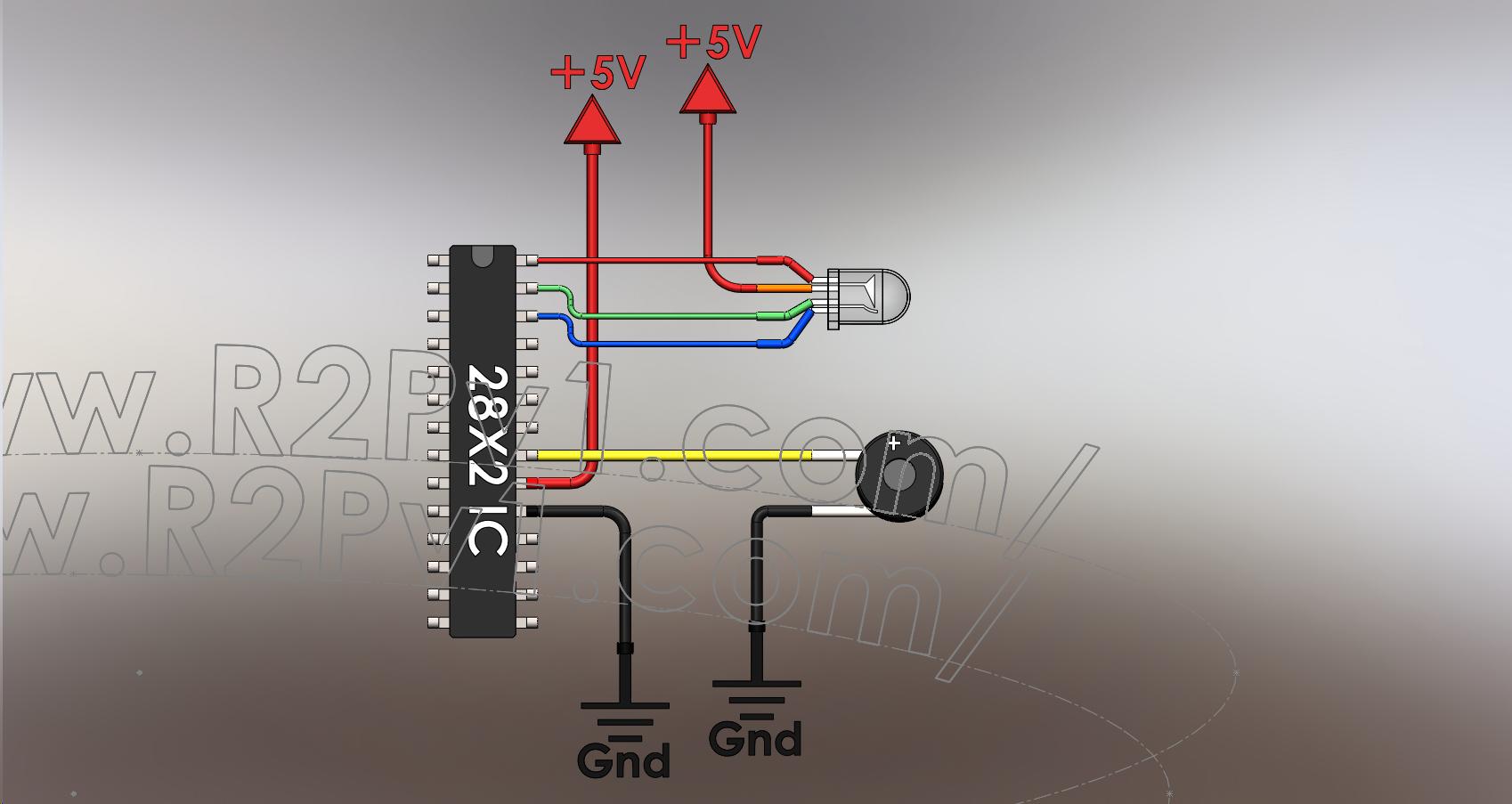

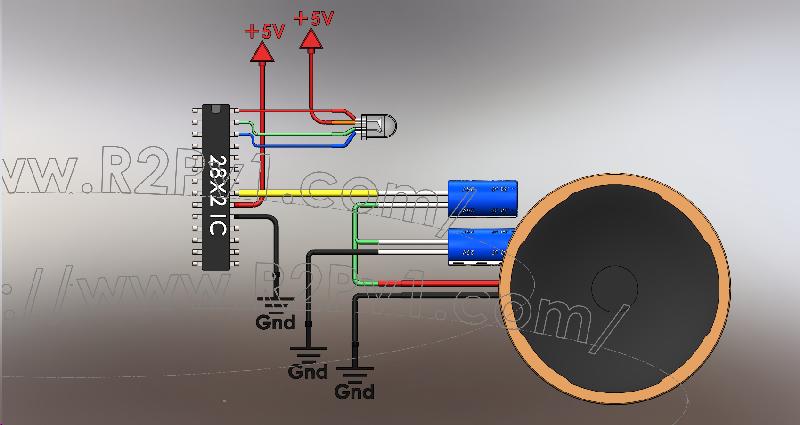

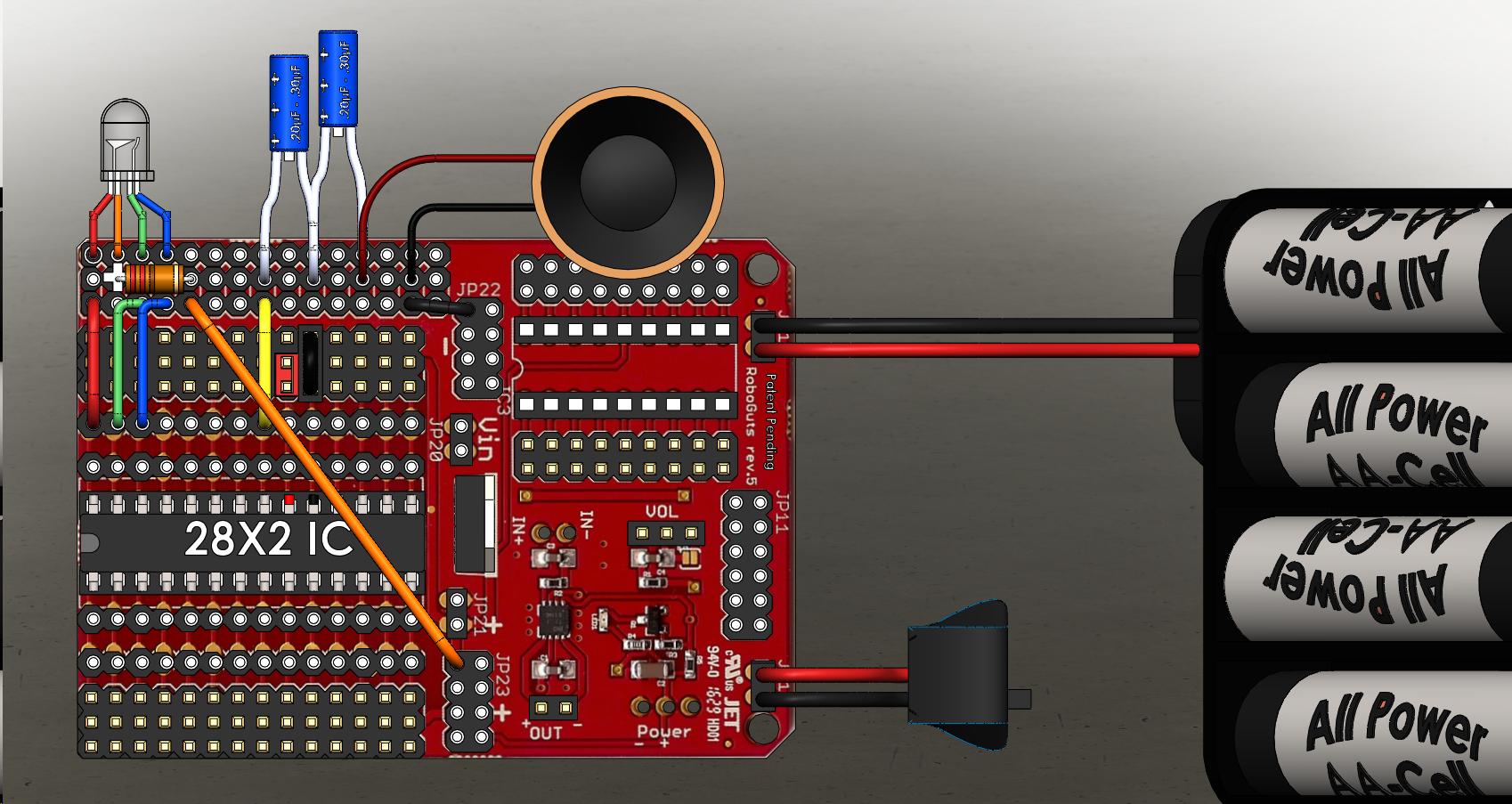

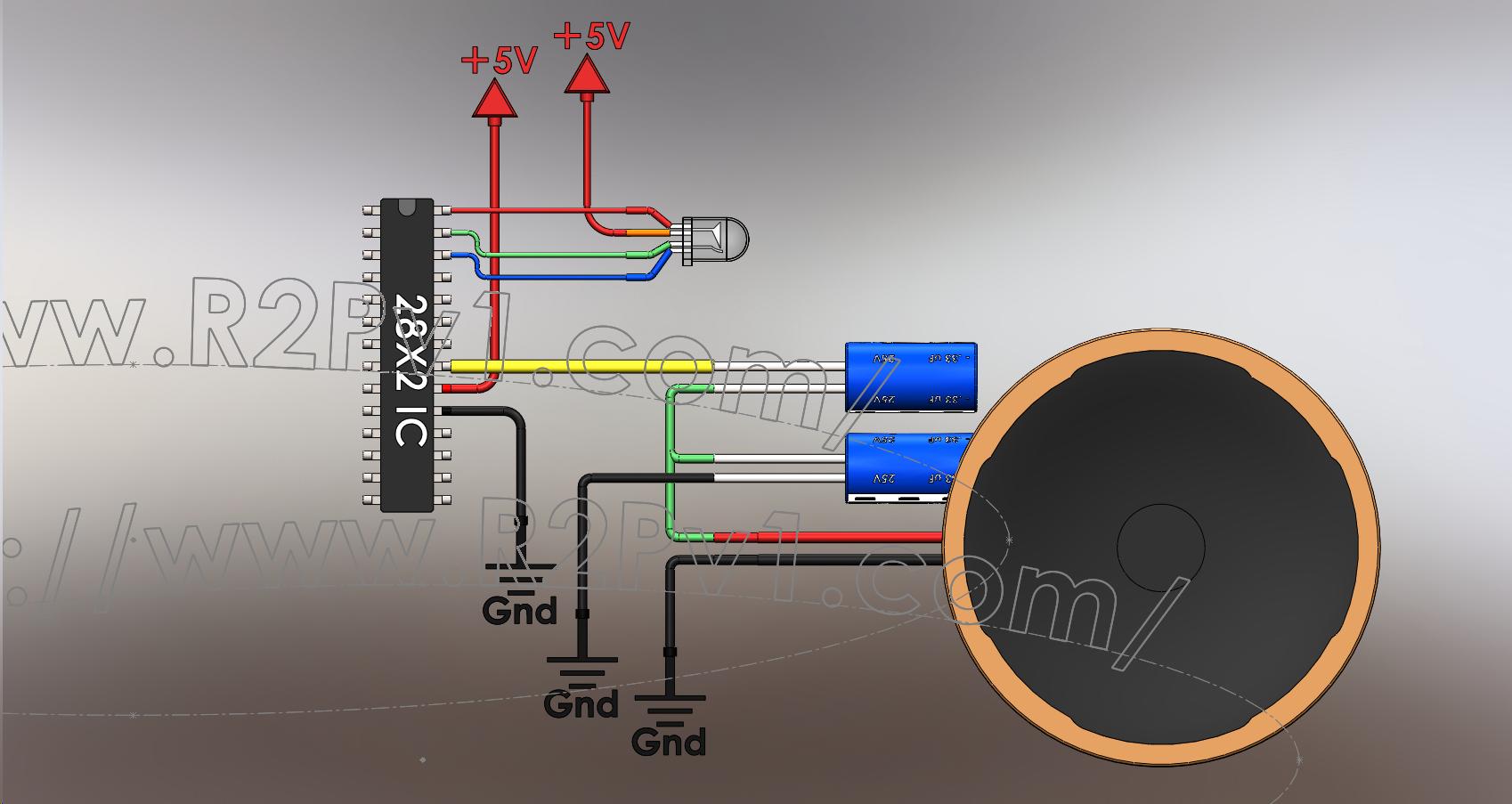

Experiment 6: PC Speaker Sounds & Music

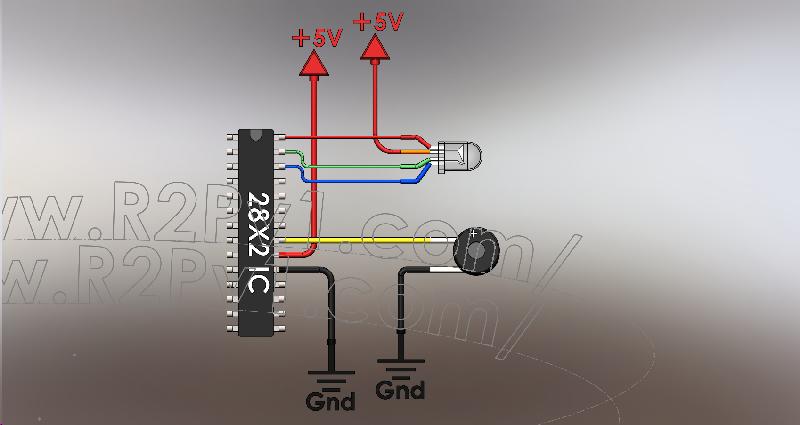

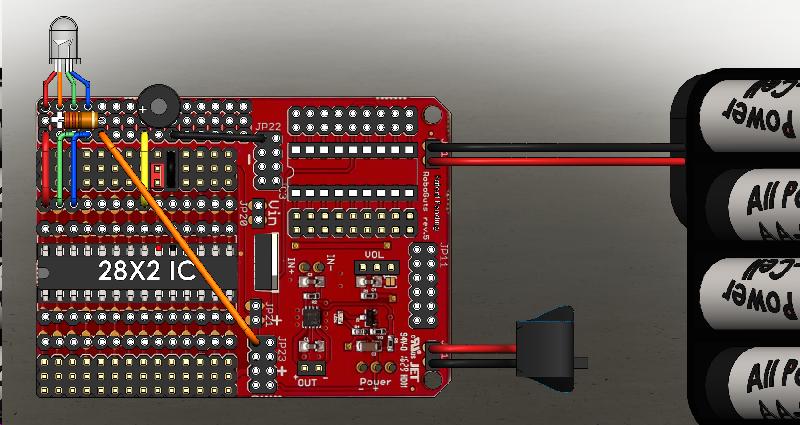

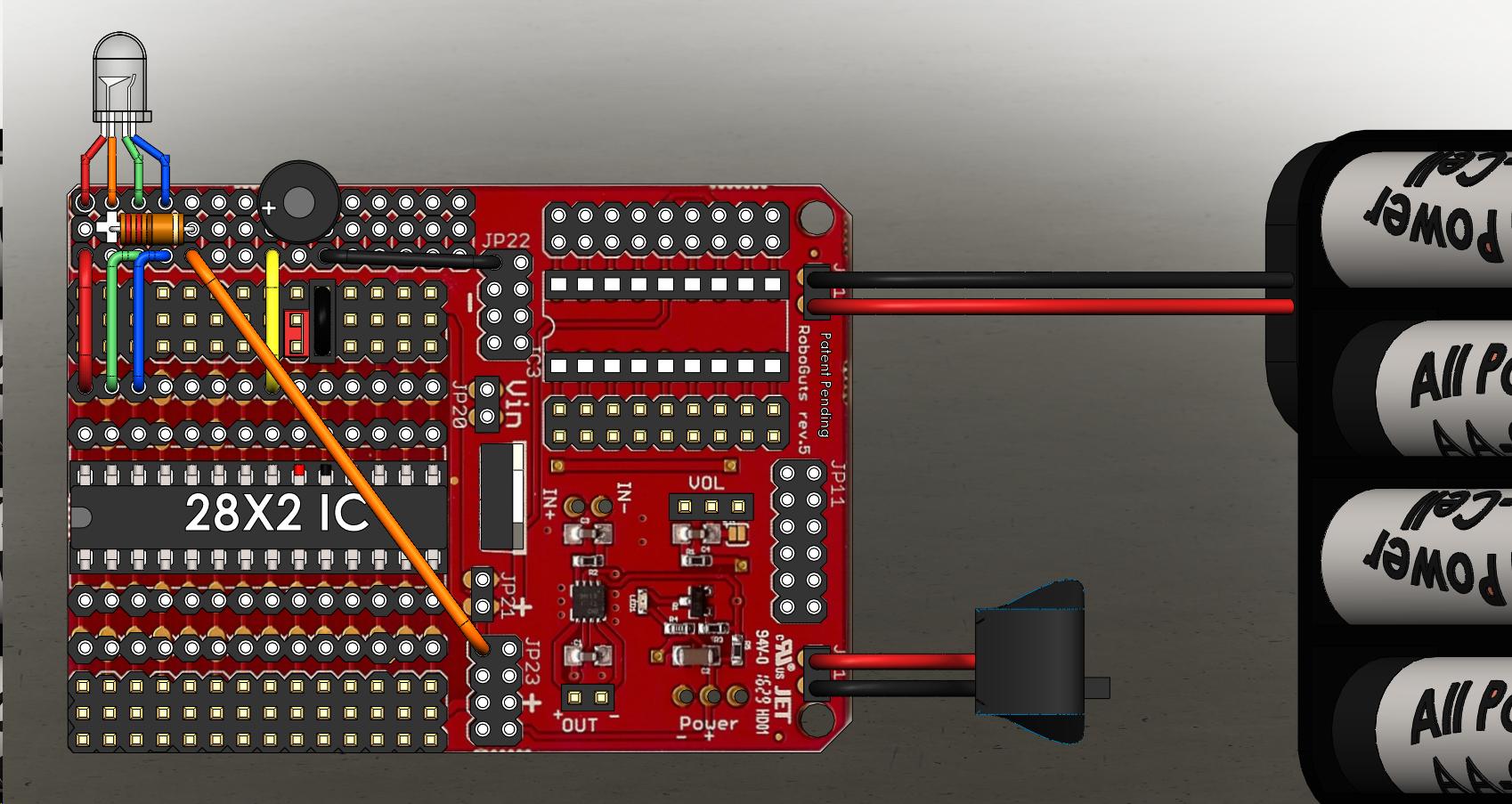

Experiment 7: Piezo Speaker Sounds & Music

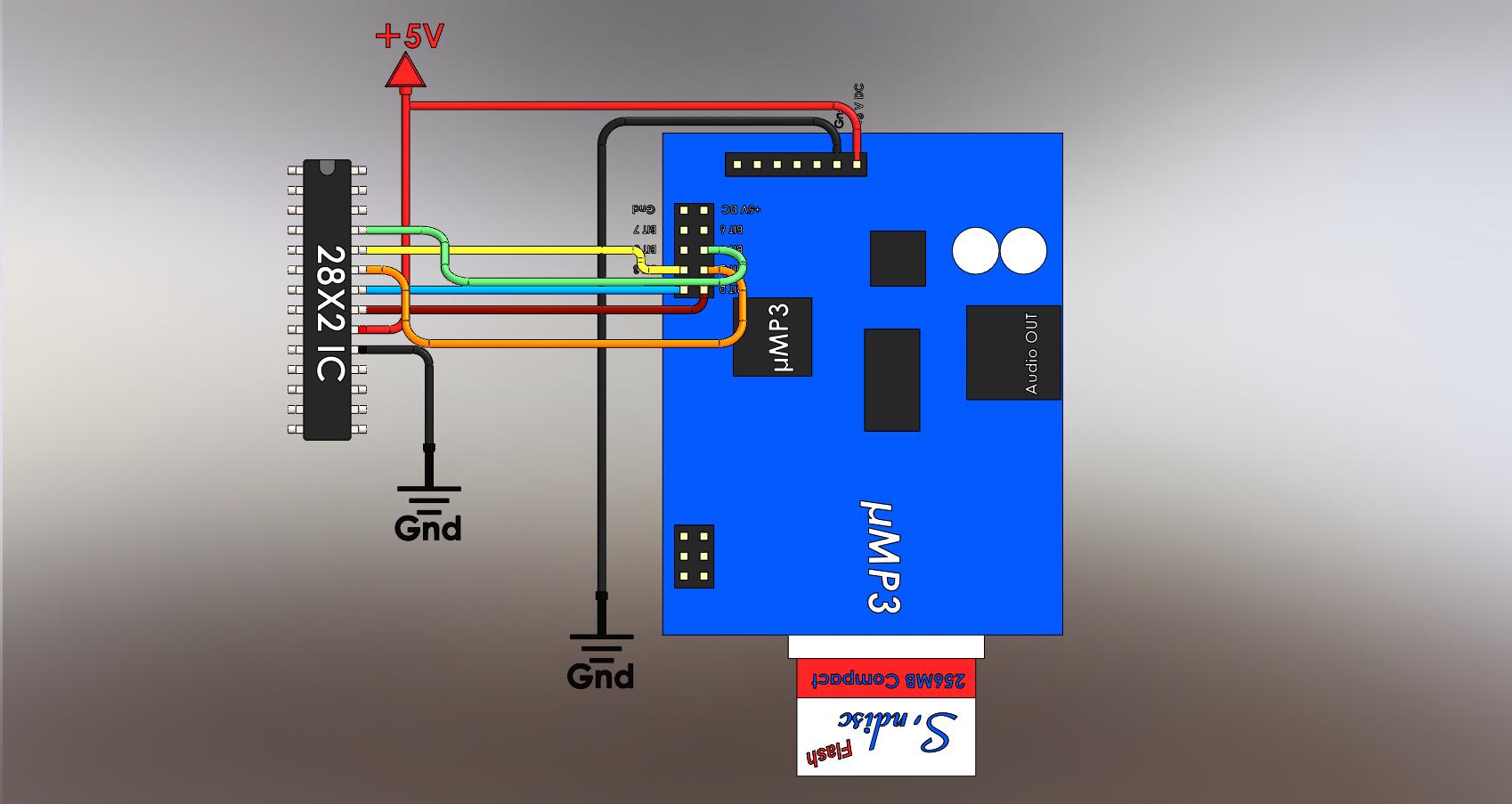

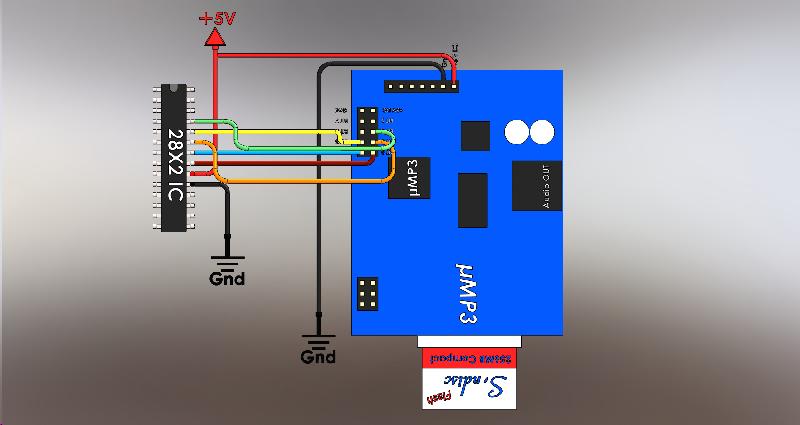

Experiment 8: Rogue Robotics µMP3

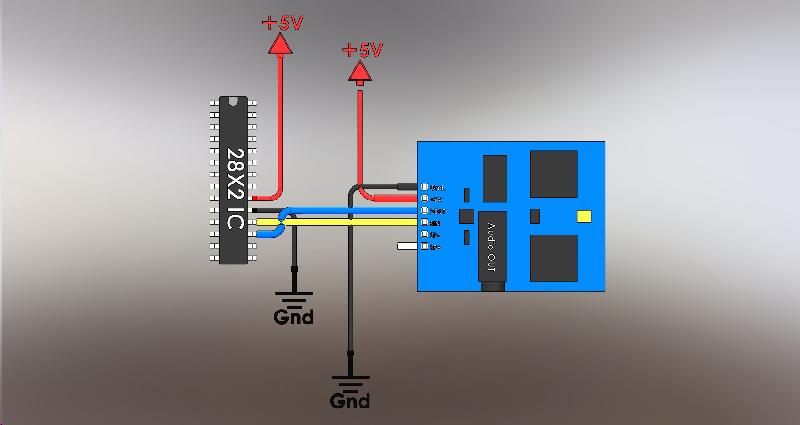

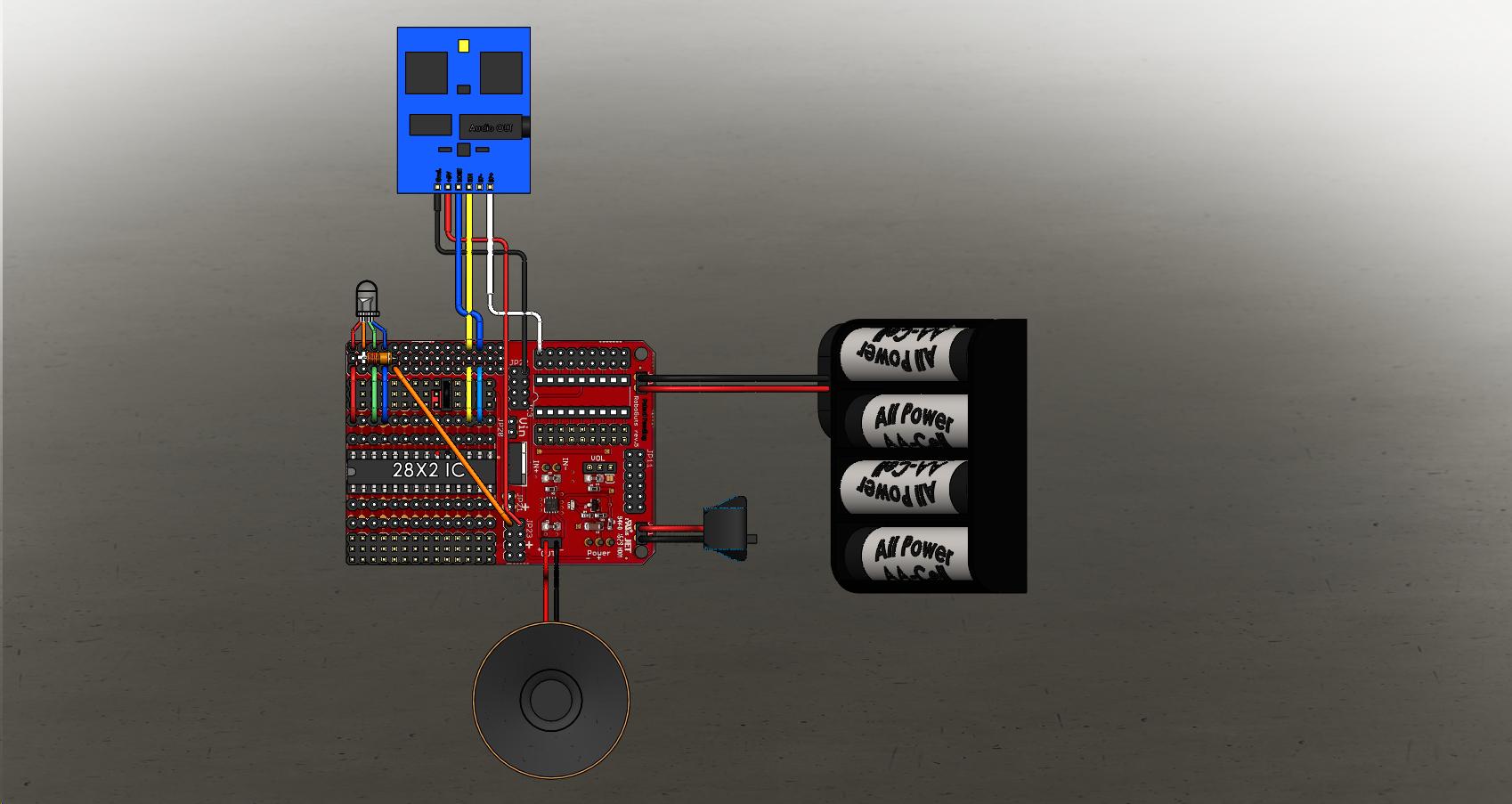

Experiment 9: Parallax Emic2

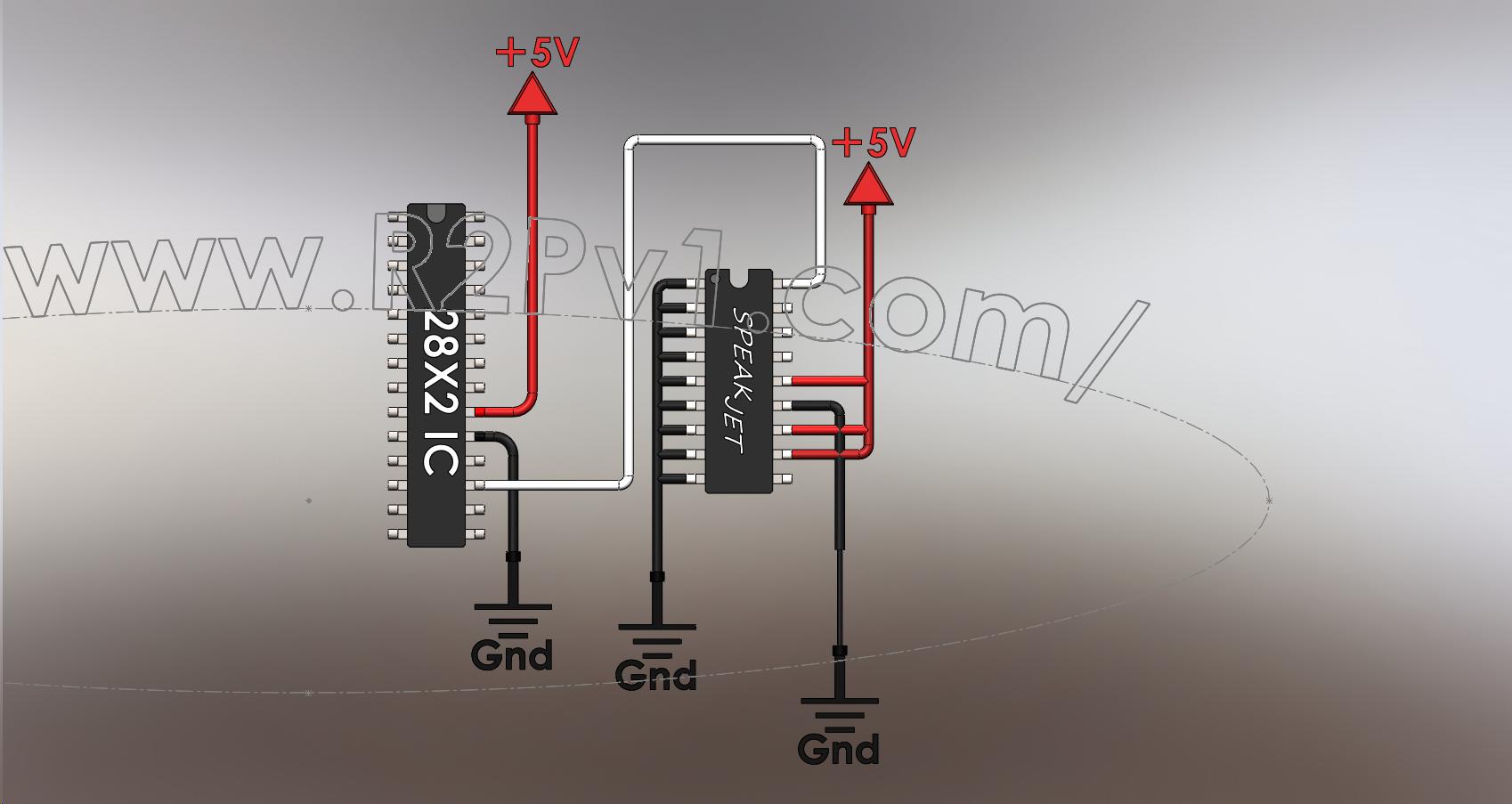

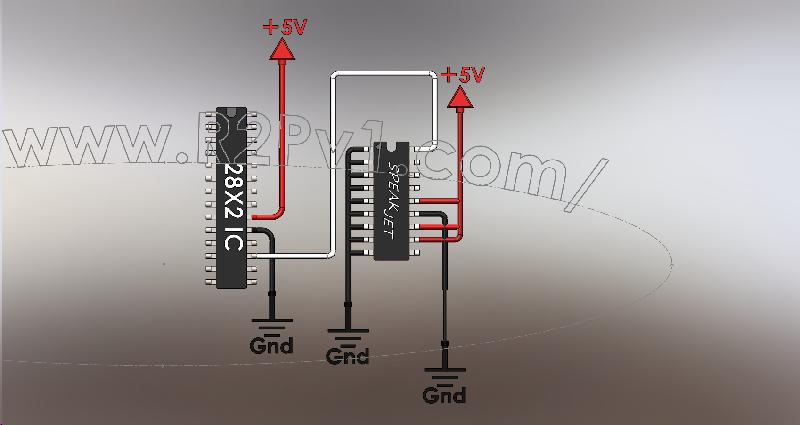

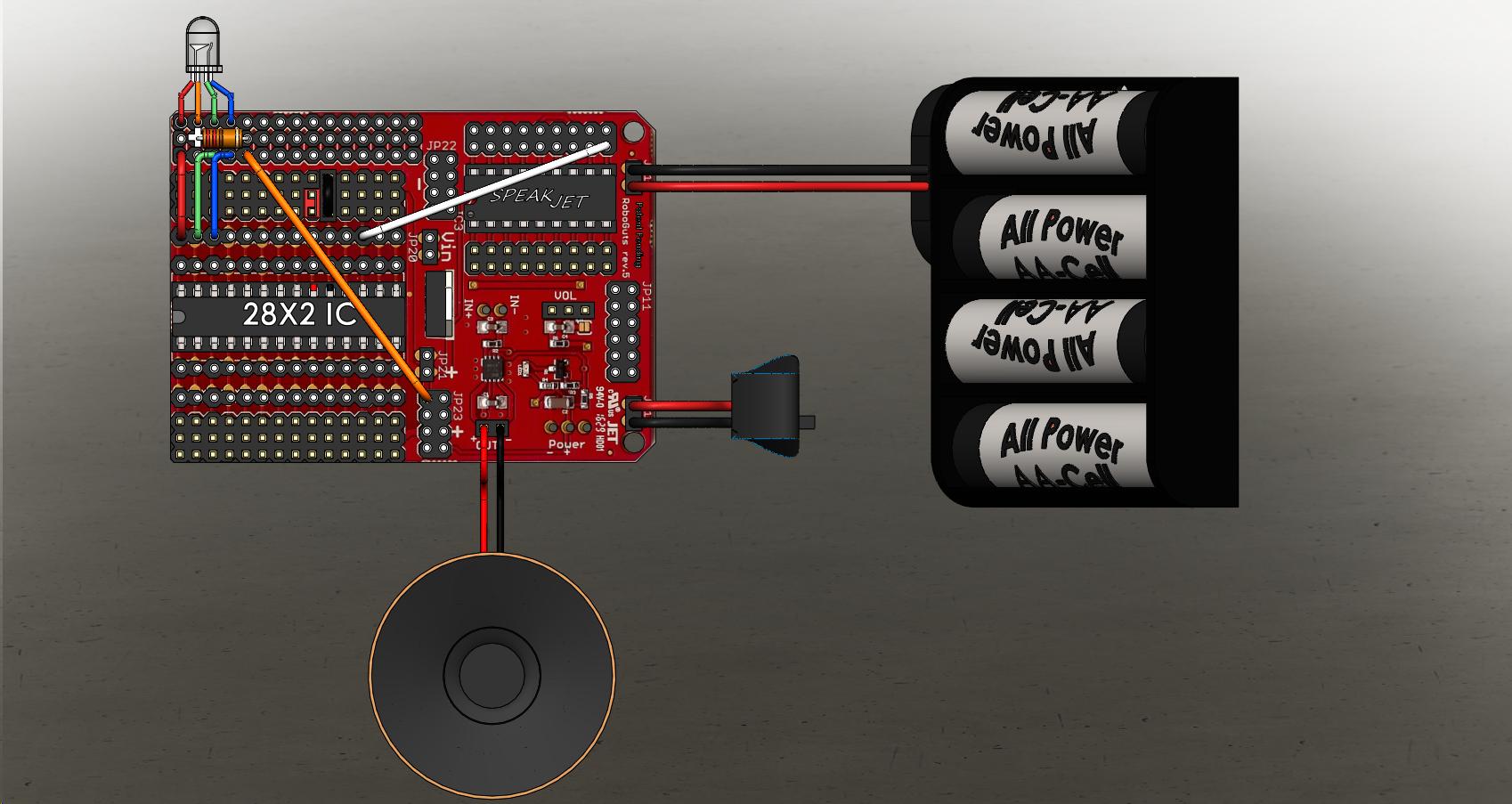

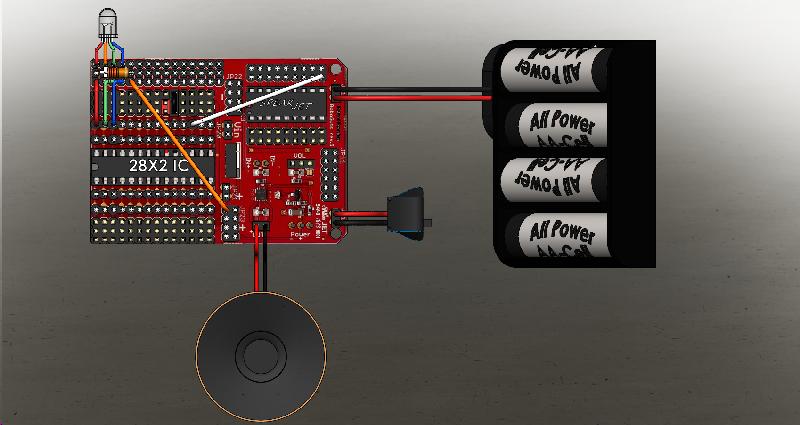

Experiment 10: SpeakJet chip

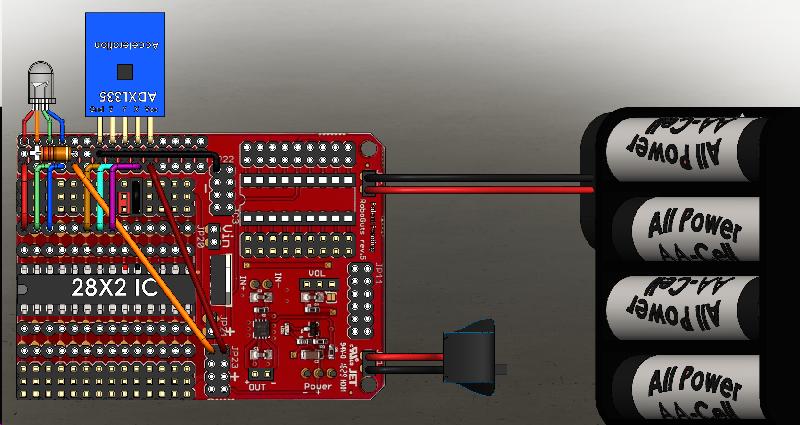

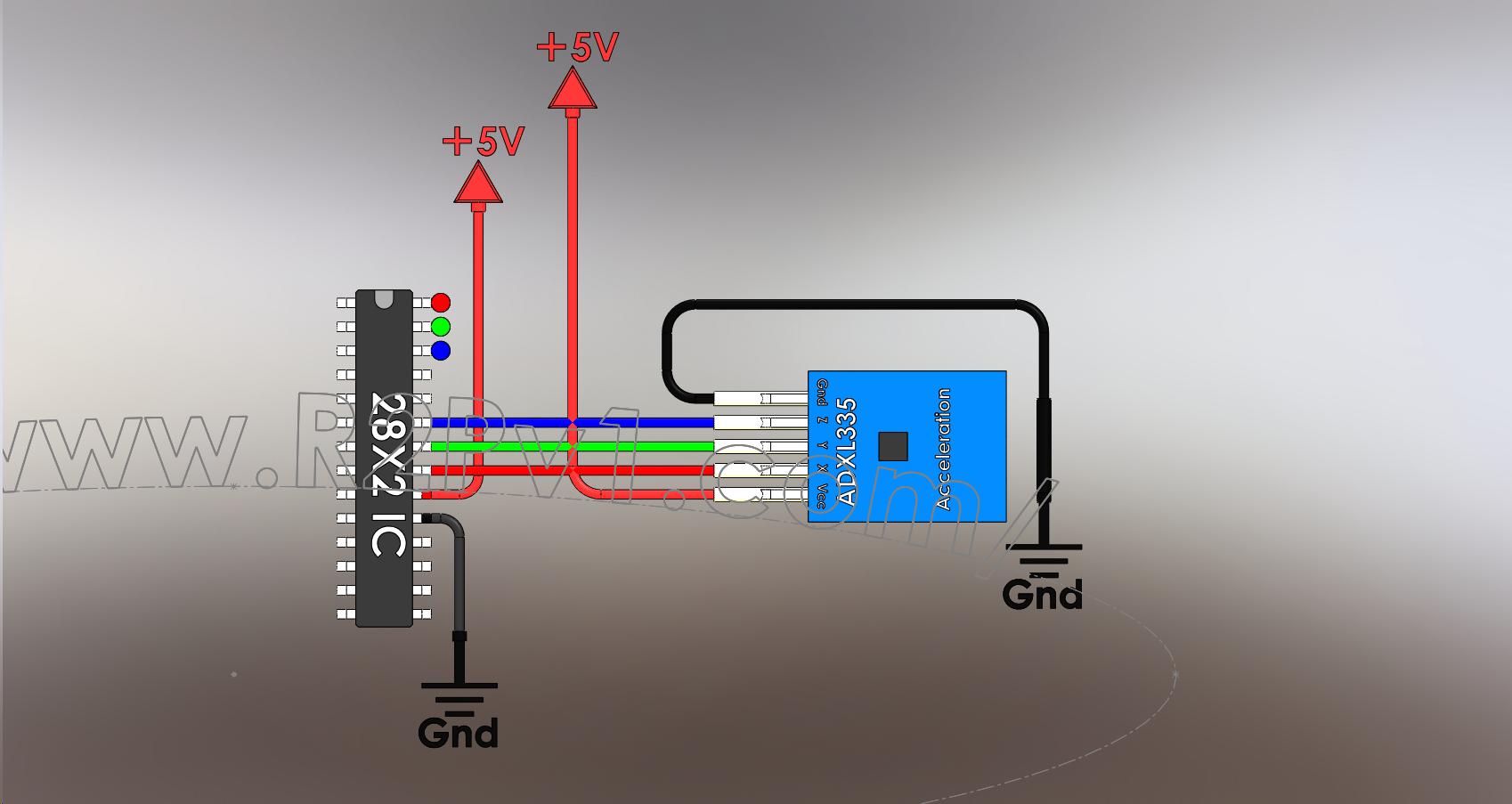

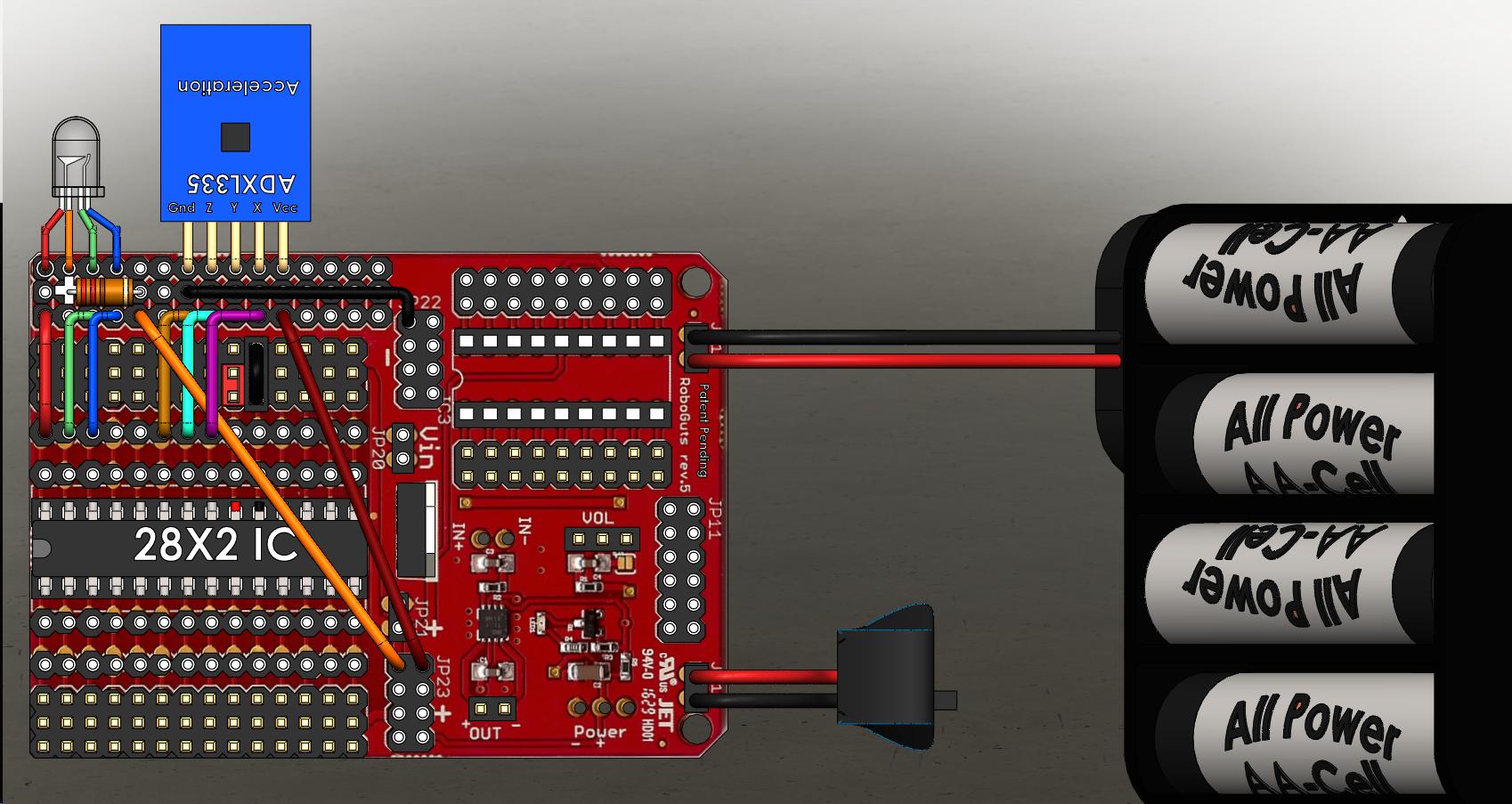

Experiment 11: Acceleration Module ADXL335

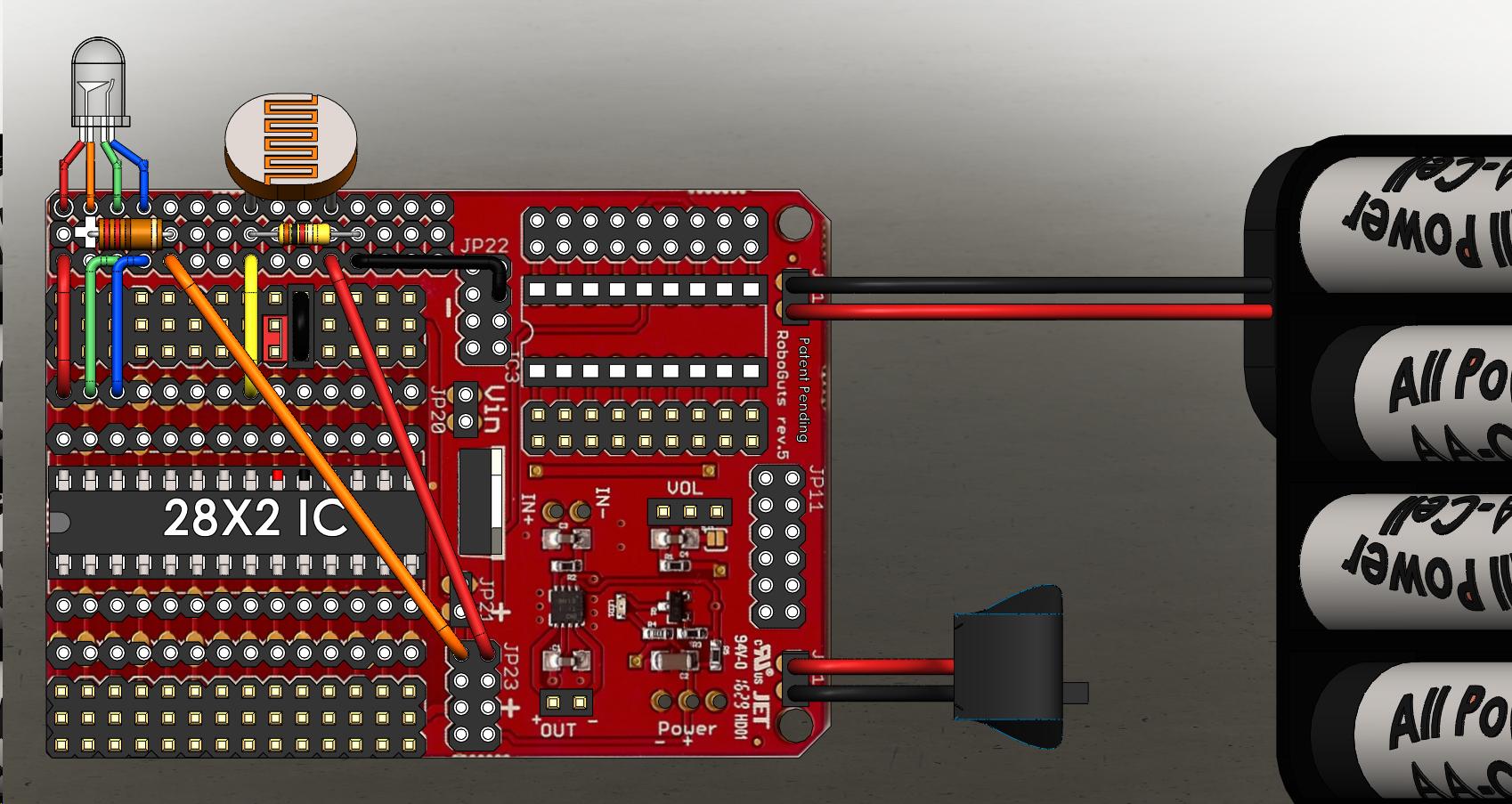

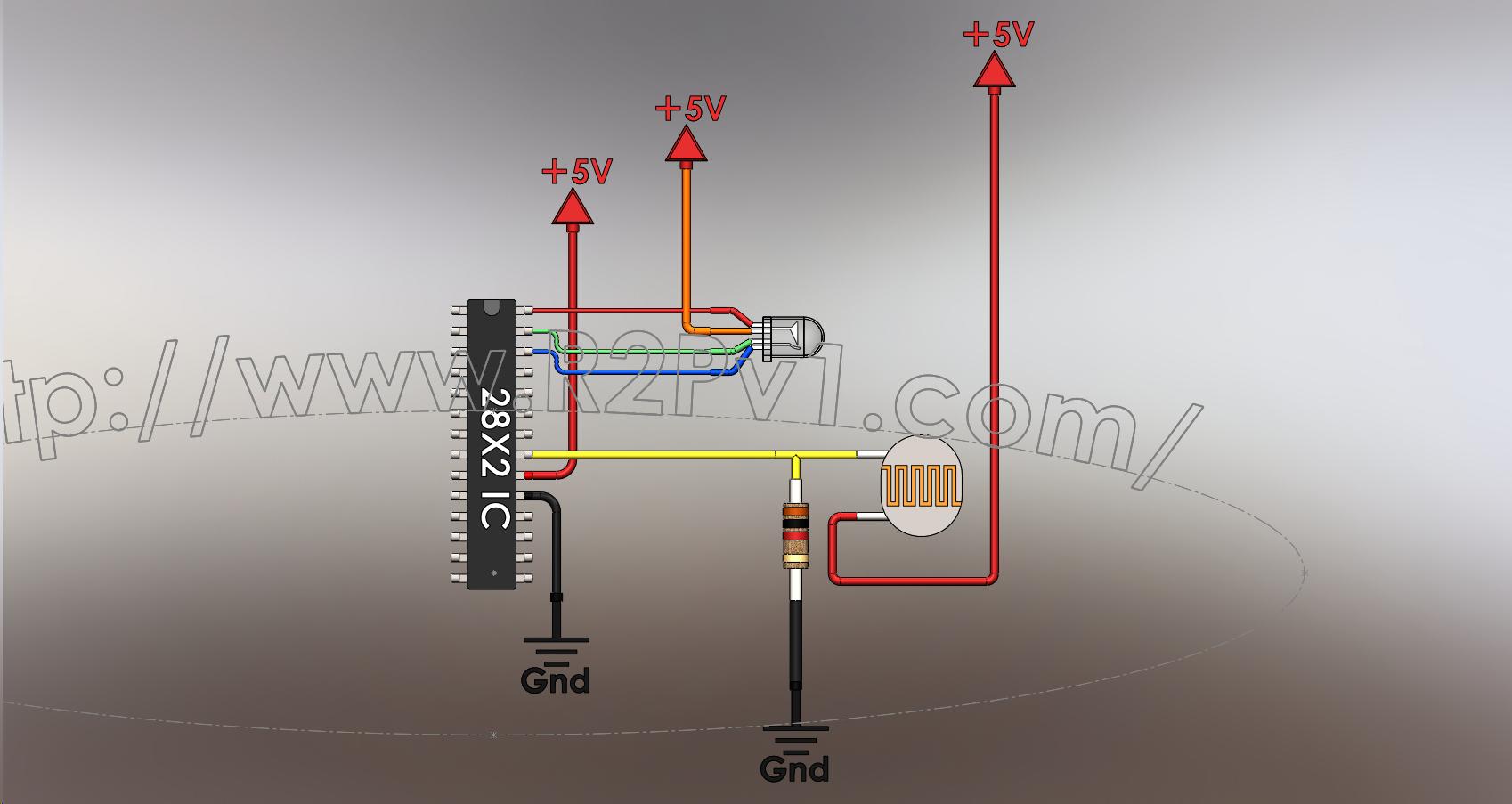

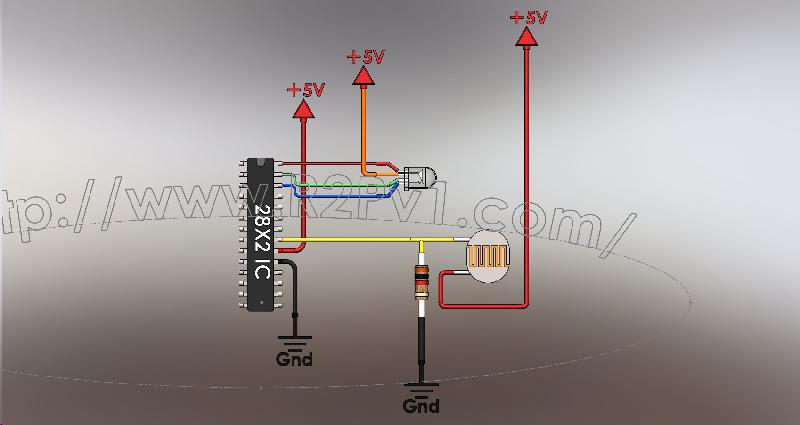

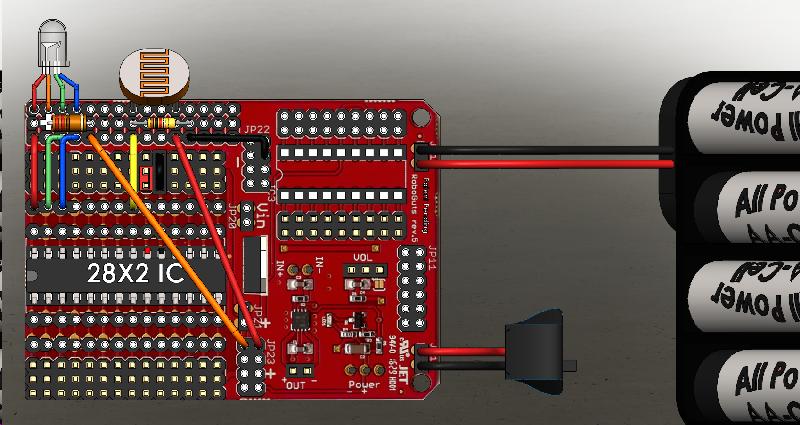

Experiment 12: Light Dependent Resistor or Photoresistor

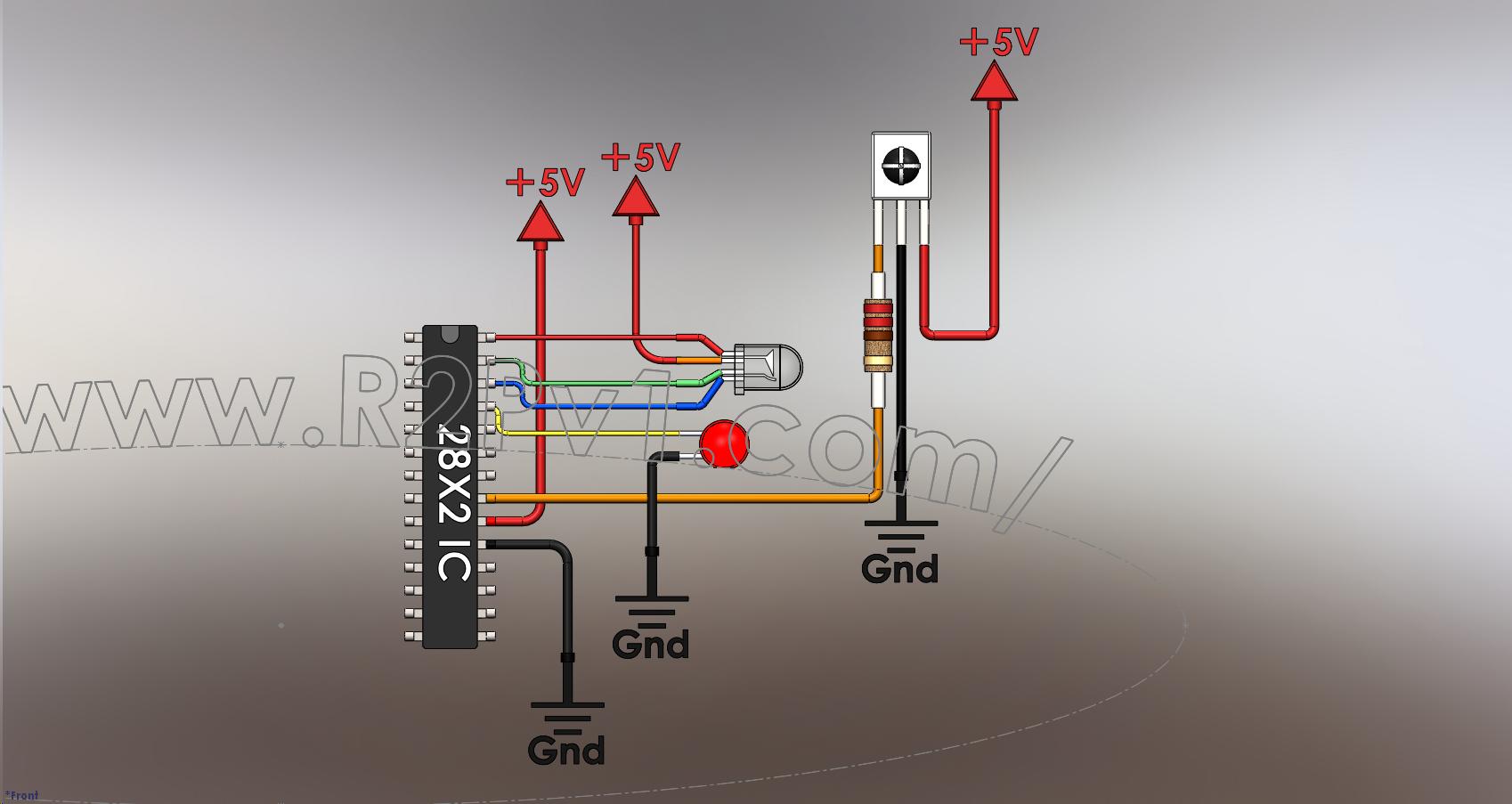

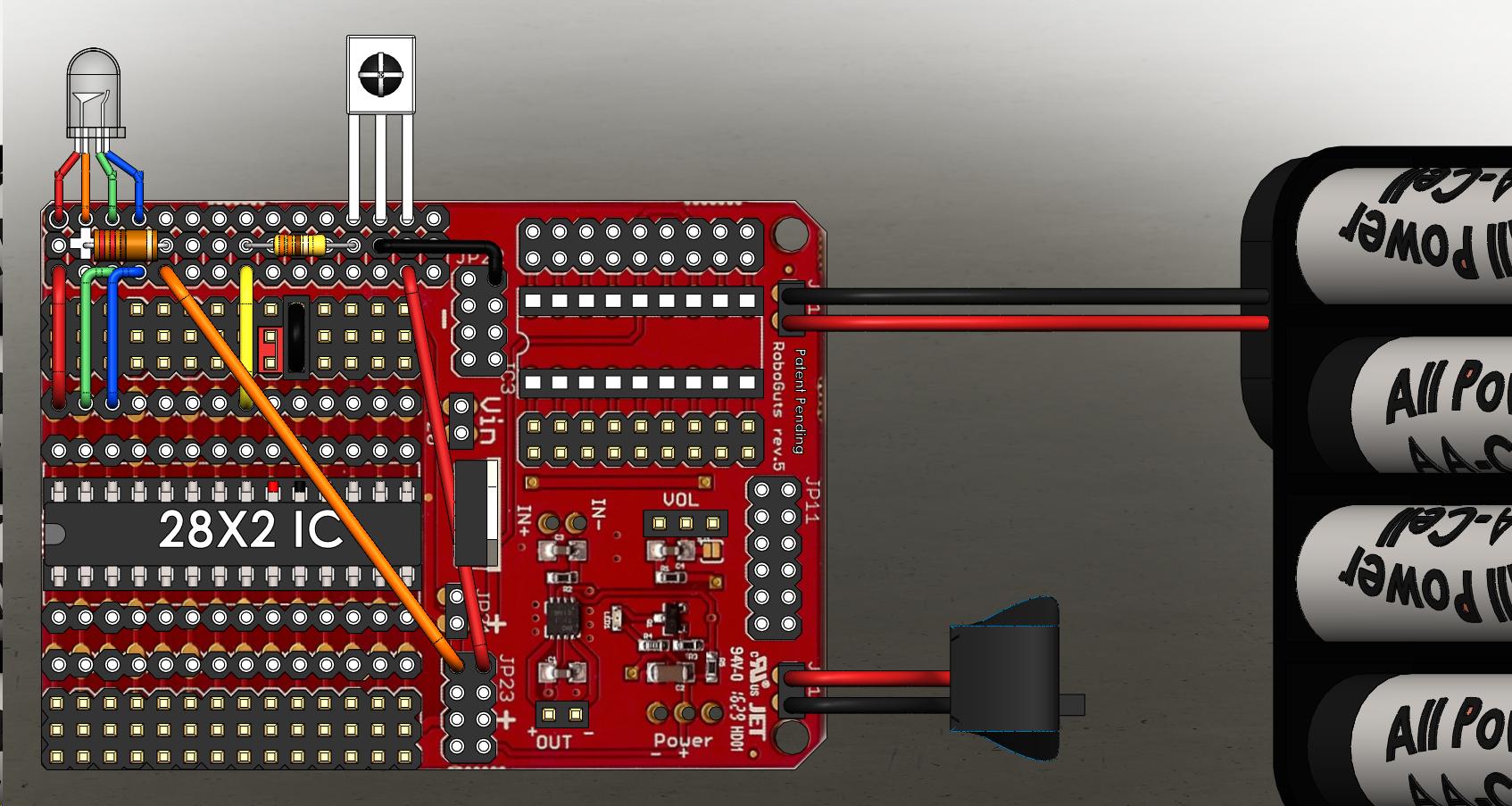

Experiment 13: IRR IR Receiver

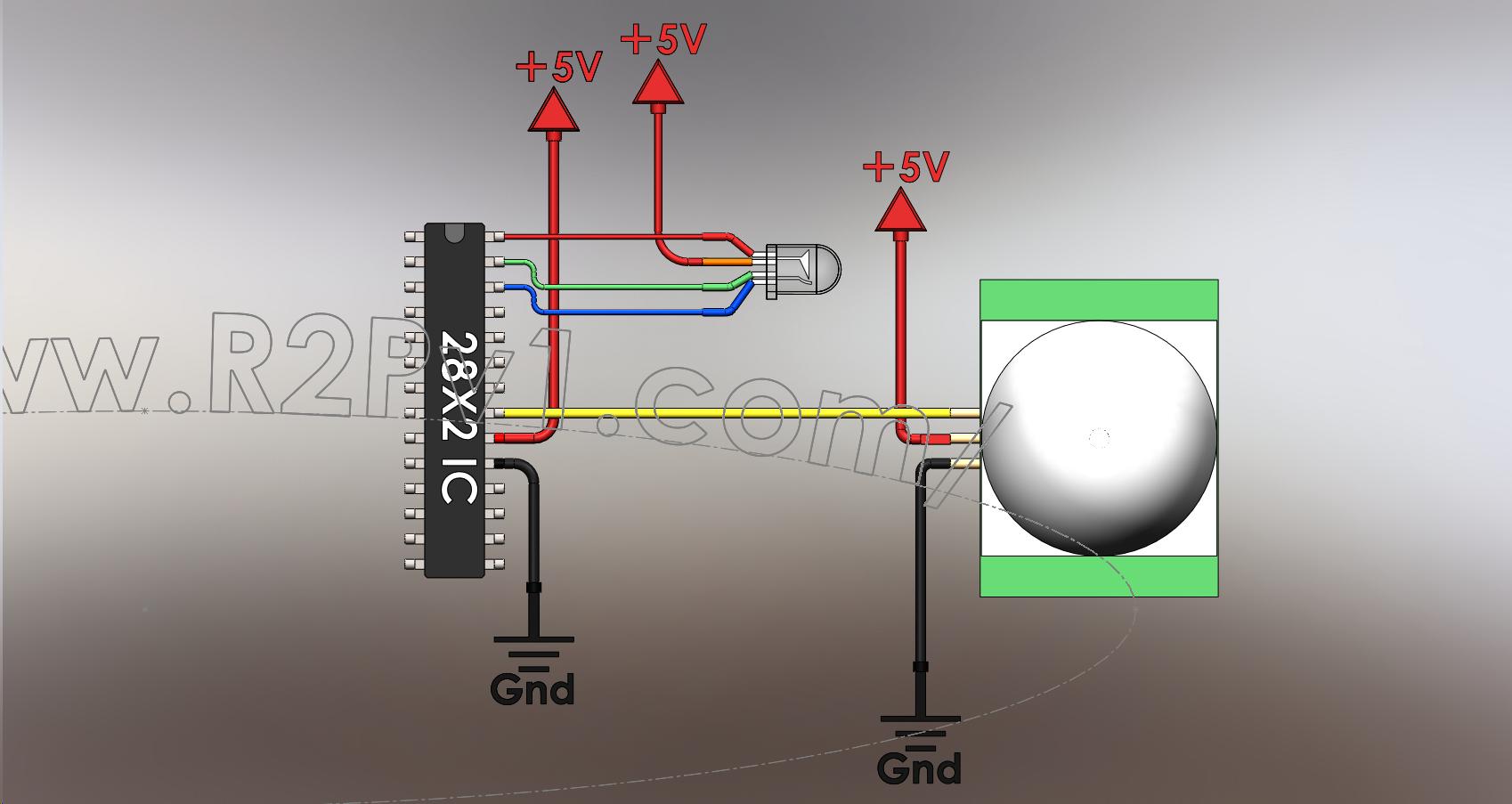

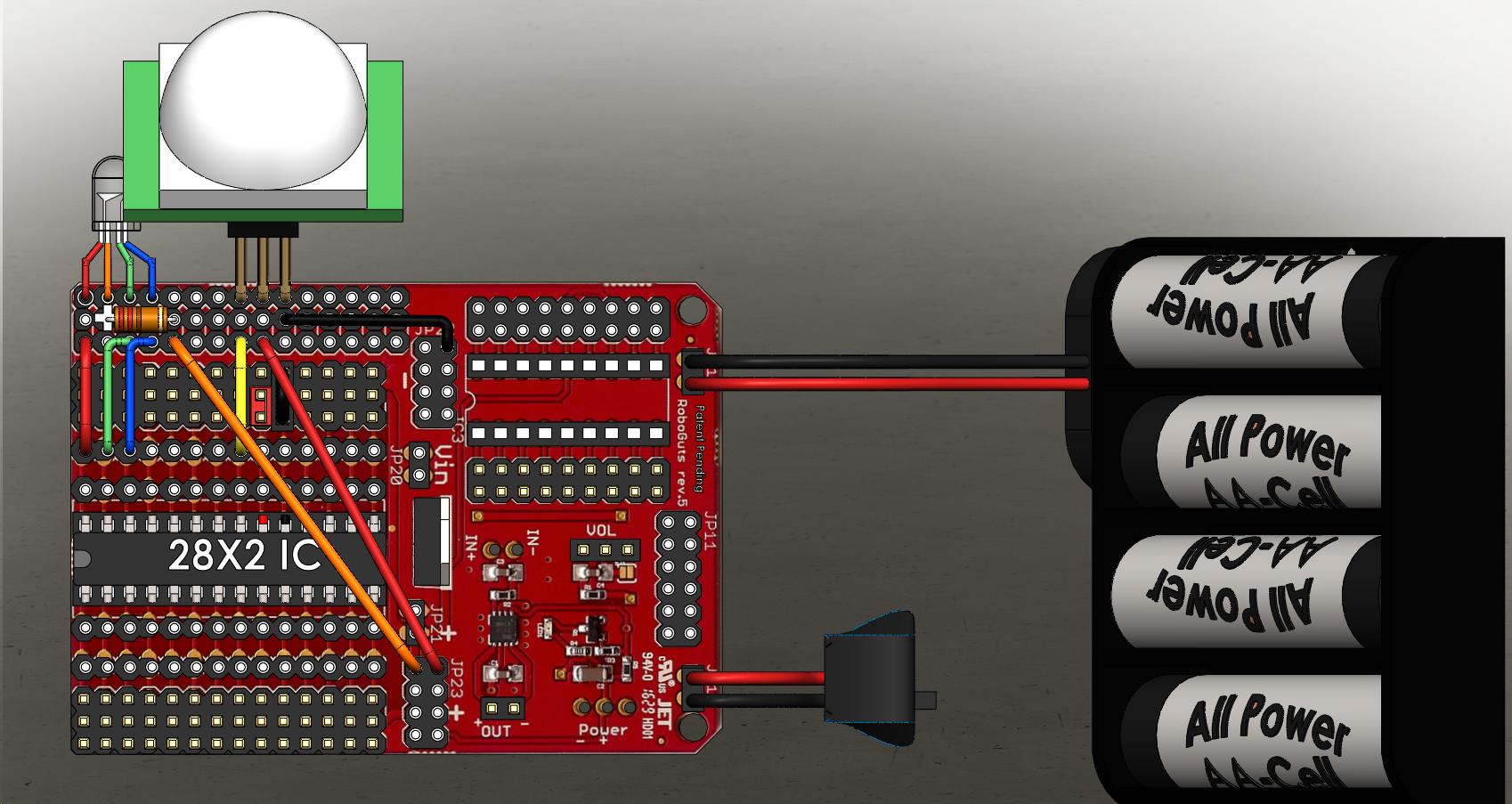

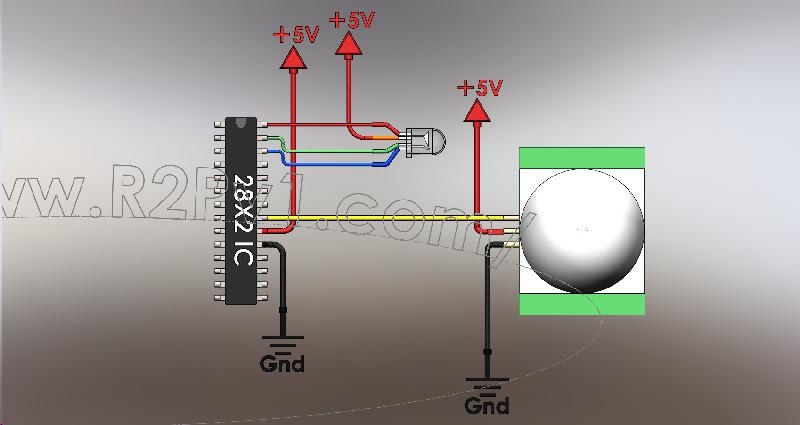

Experiment 14: Parallax PIR

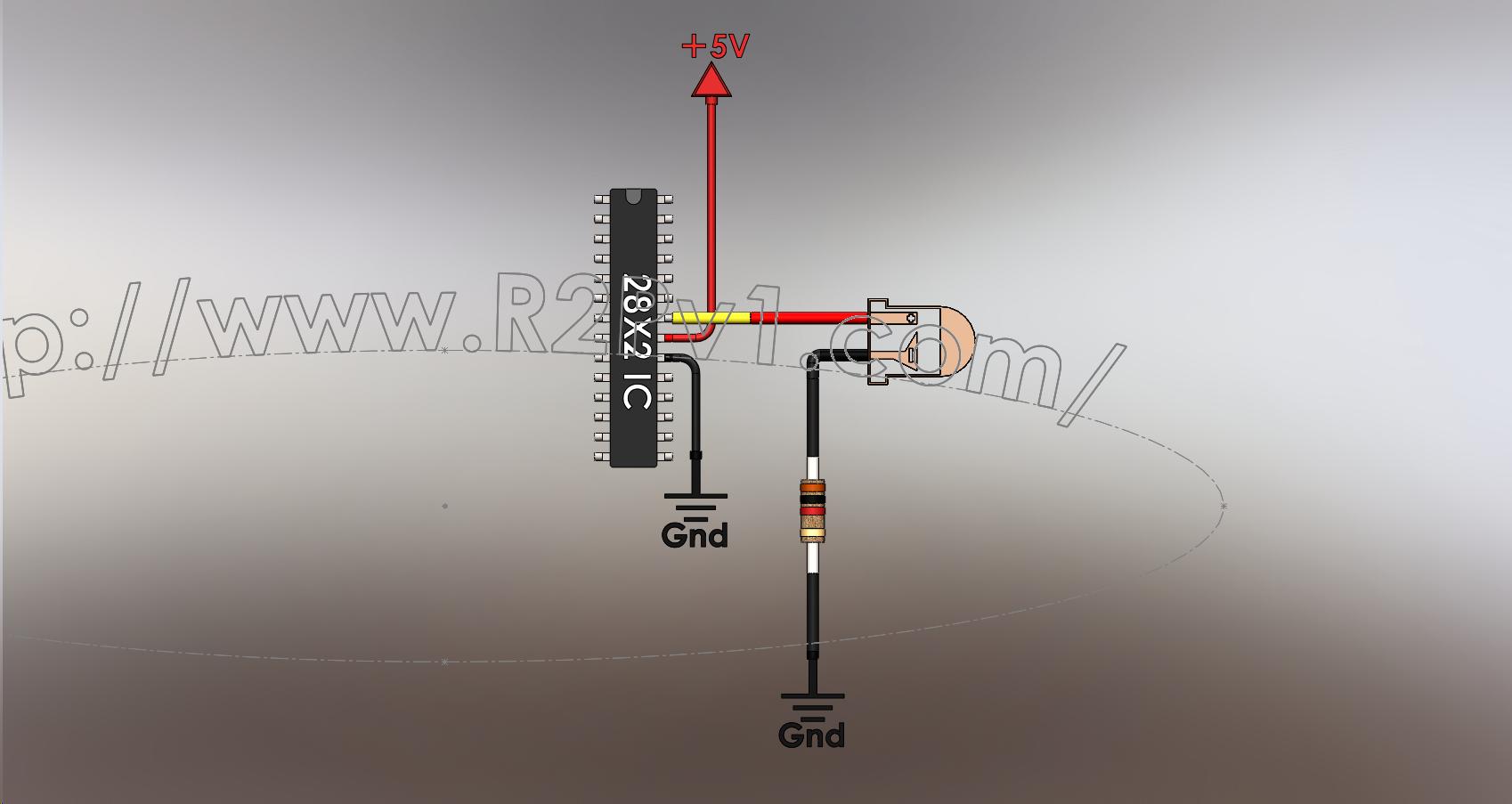

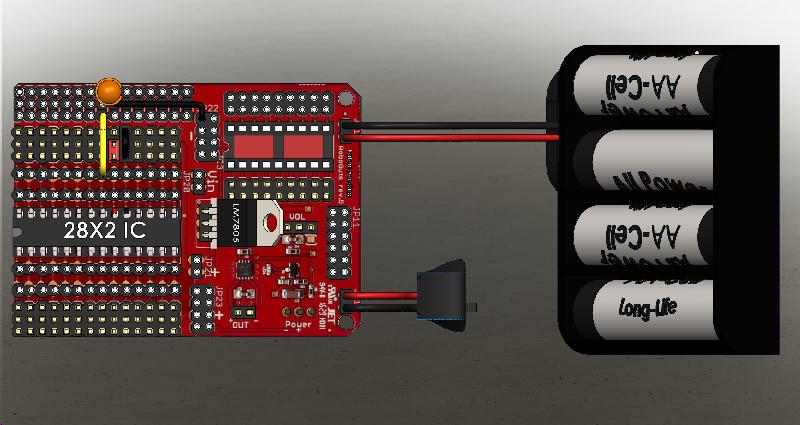

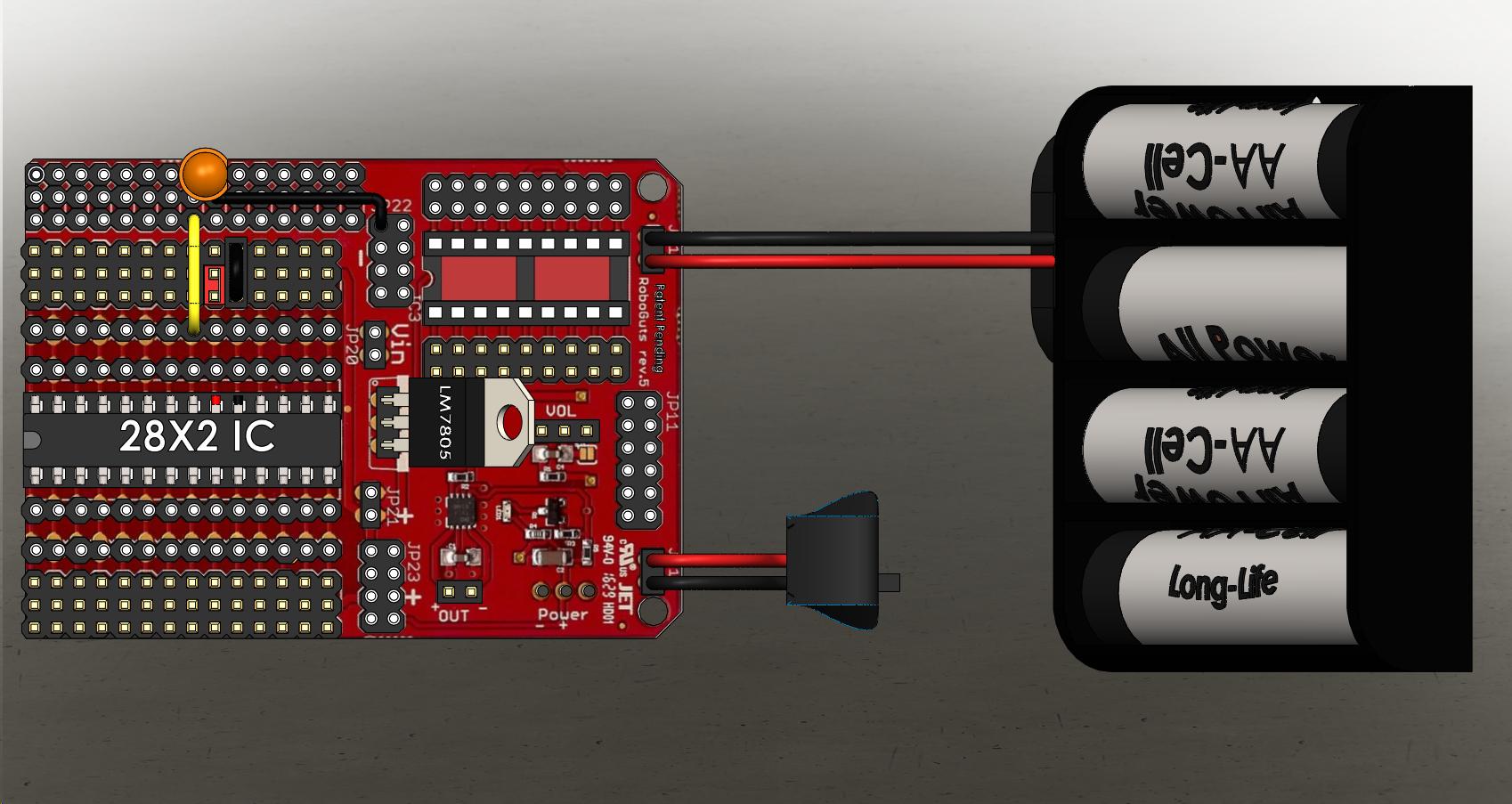

Experiment 15: IR LED

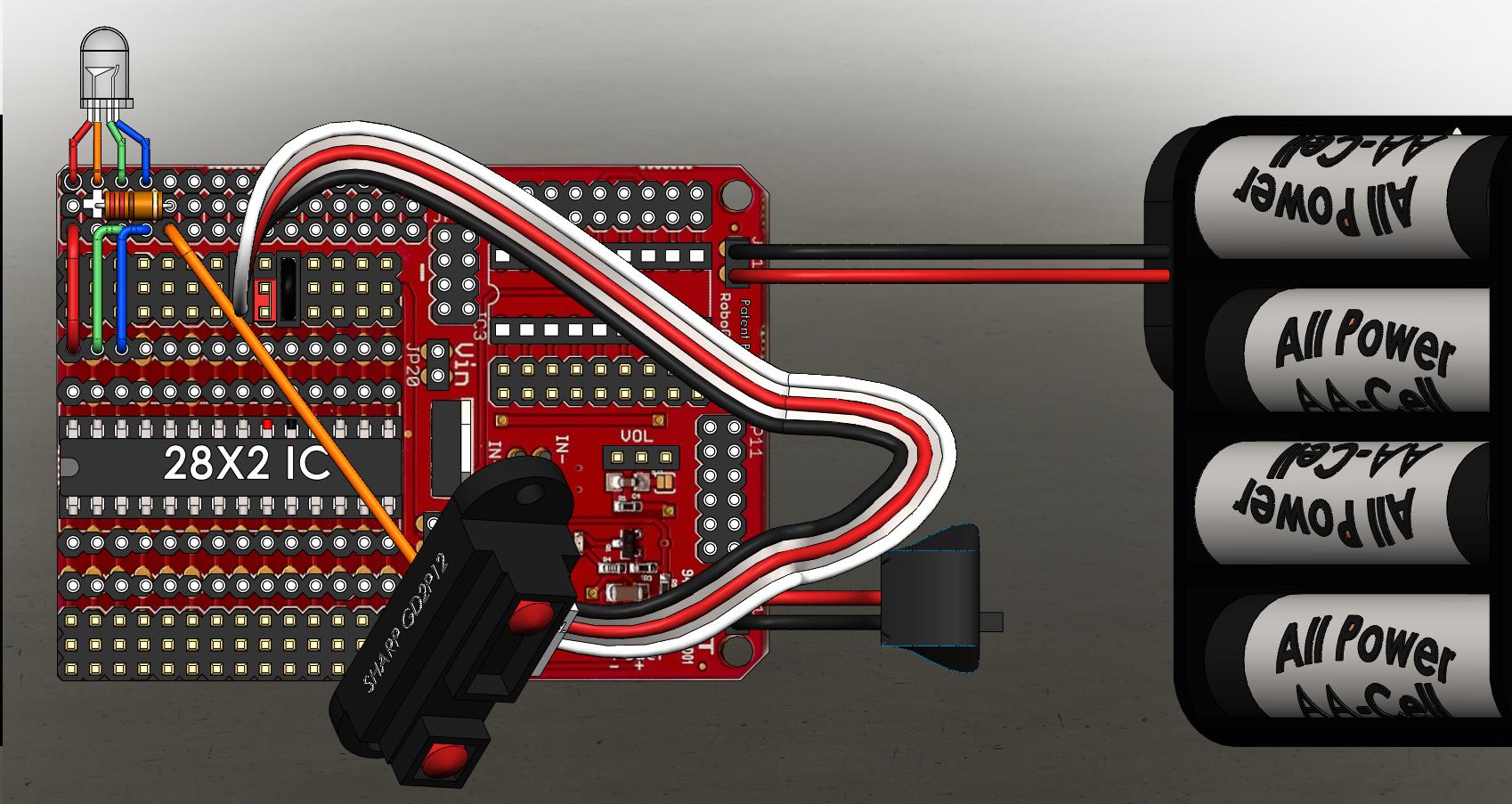

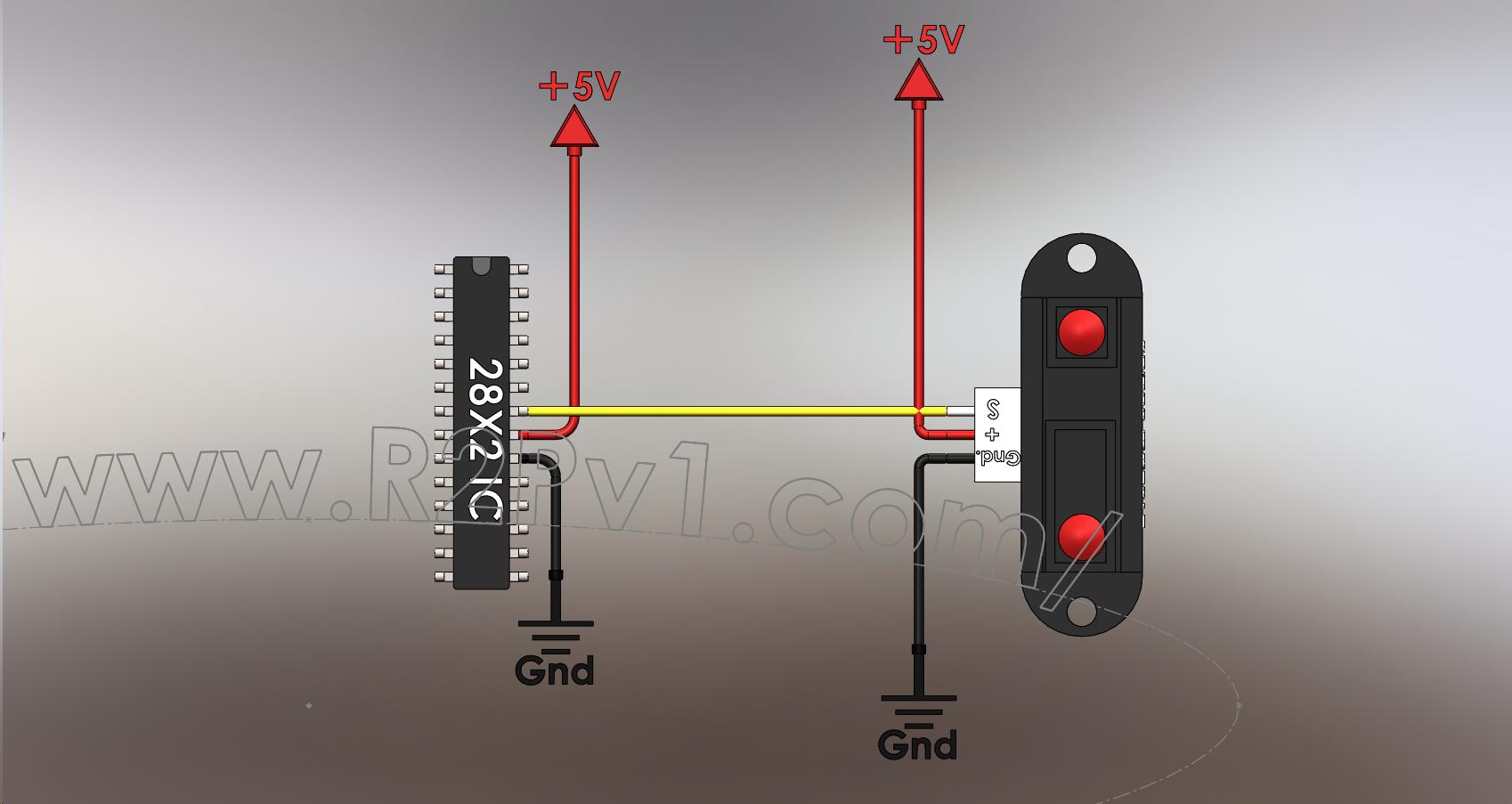

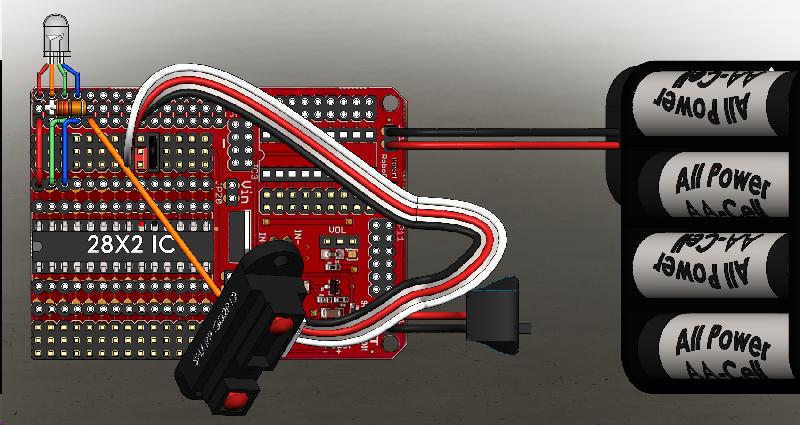

Experiment 16: SHARP GP2D12 IR Range Finder

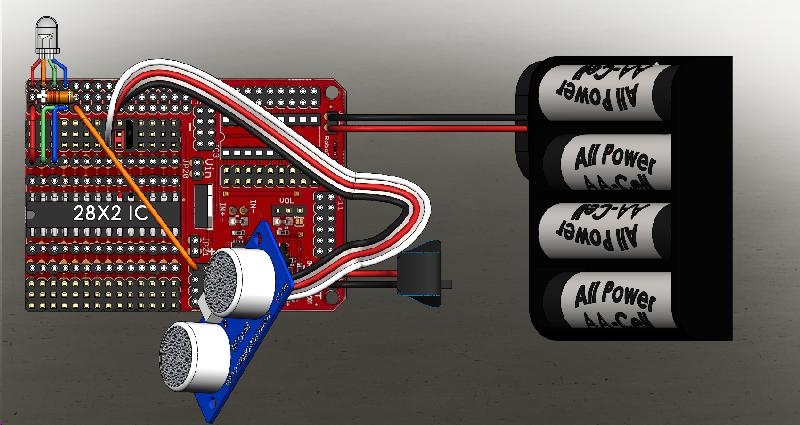

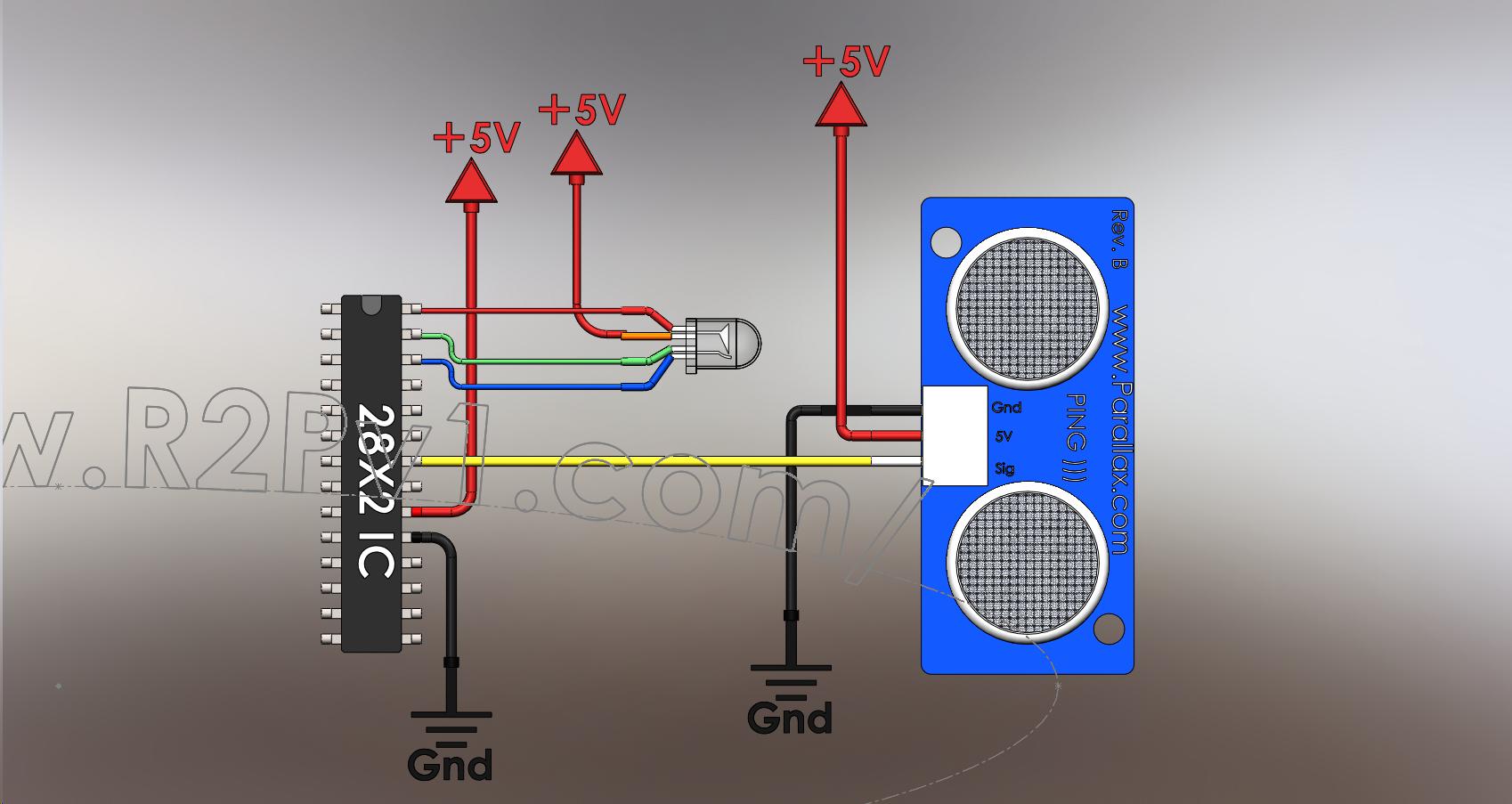

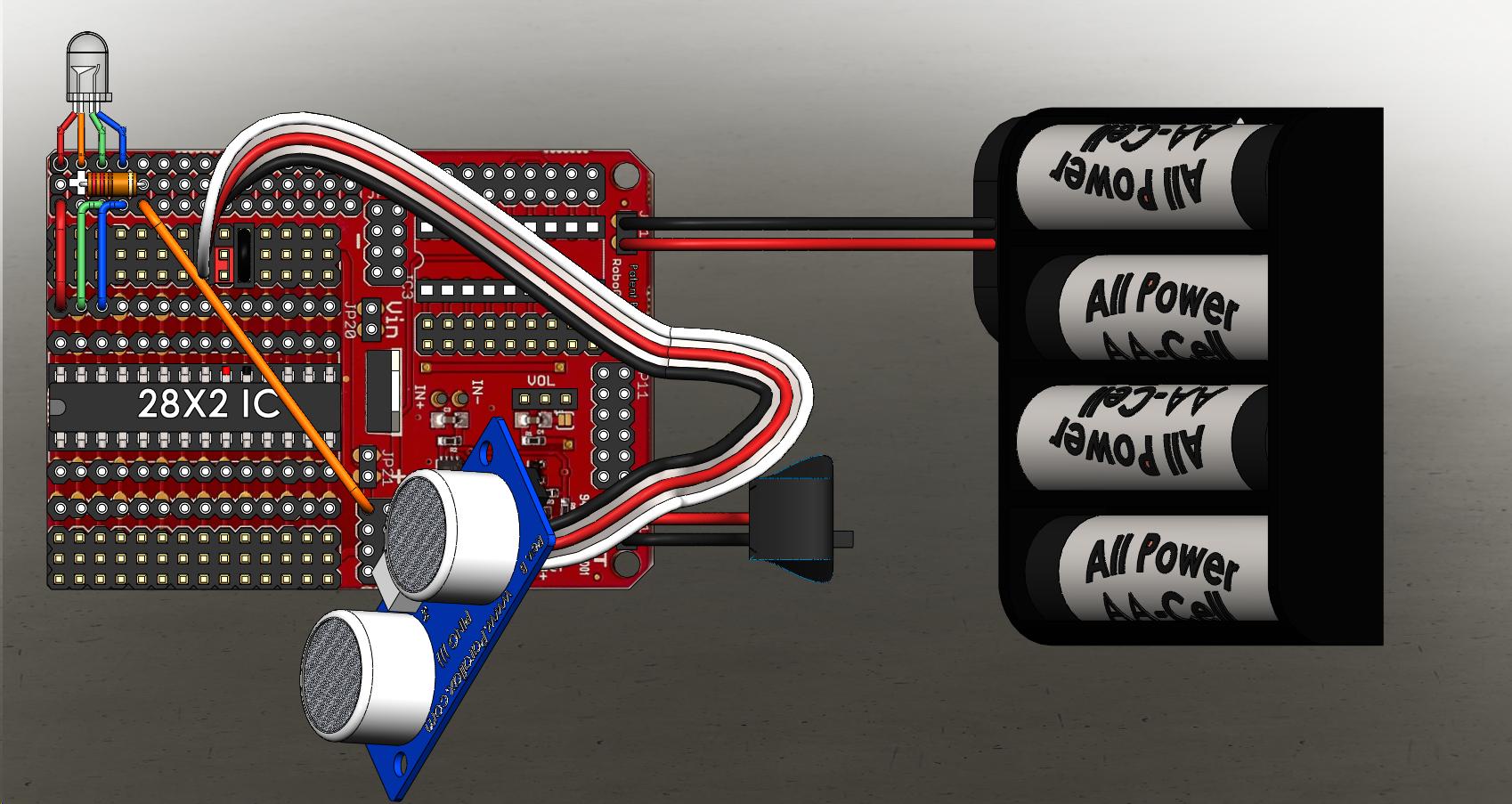

Experiment 17: Parallax PING Ultra Sonic Range Finder

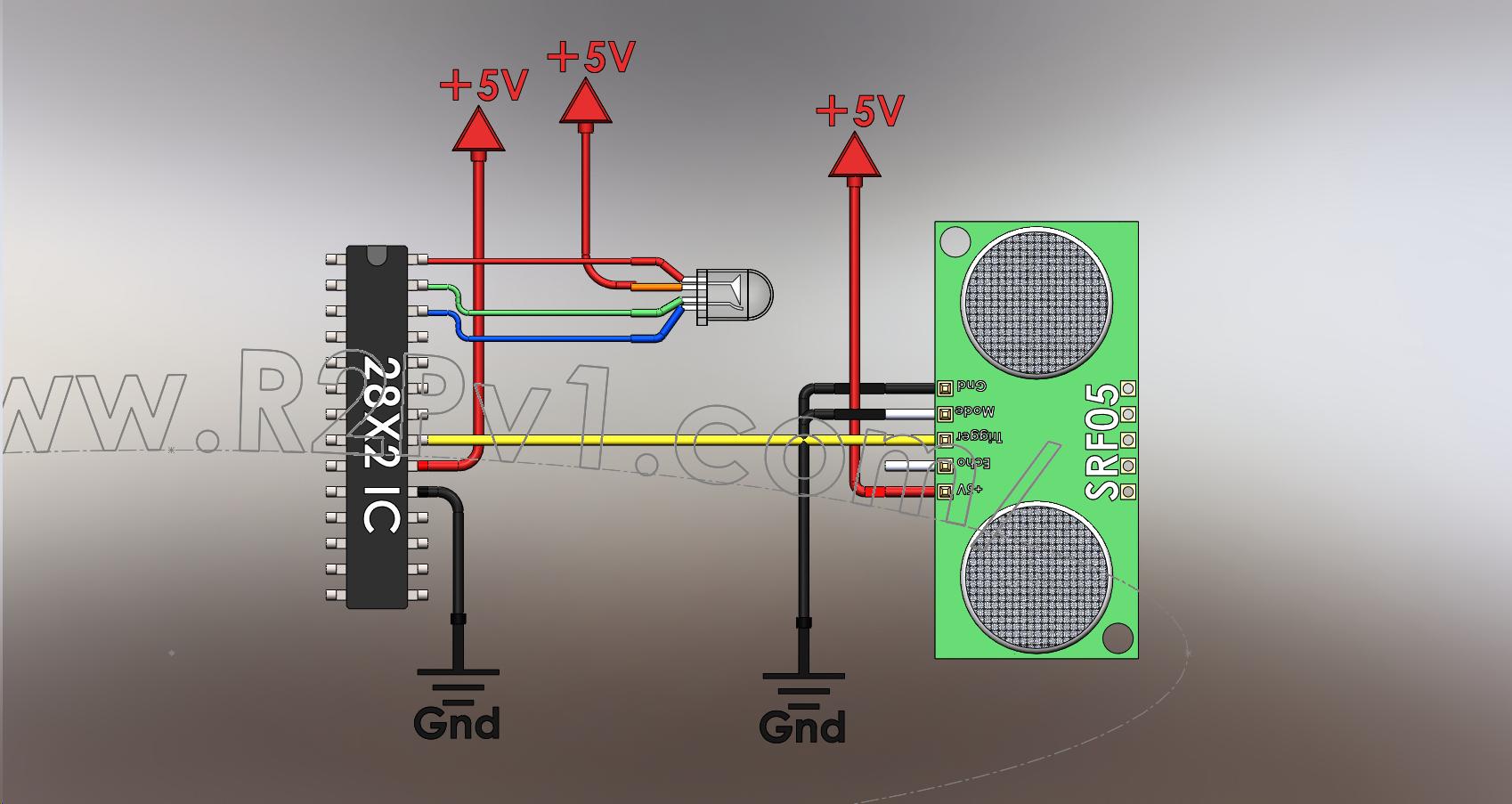

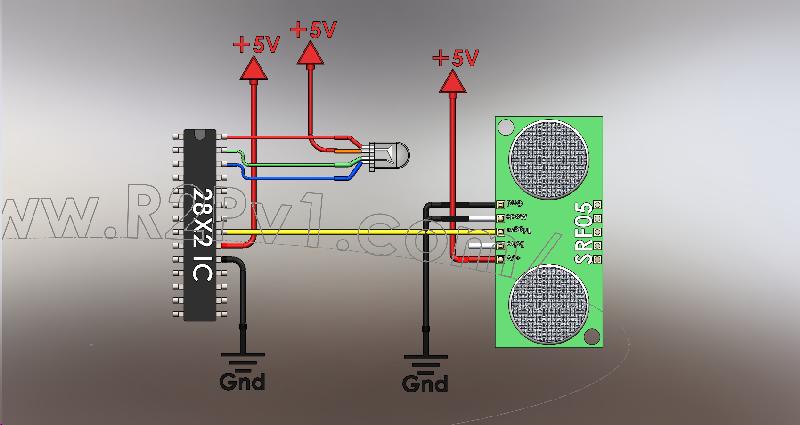

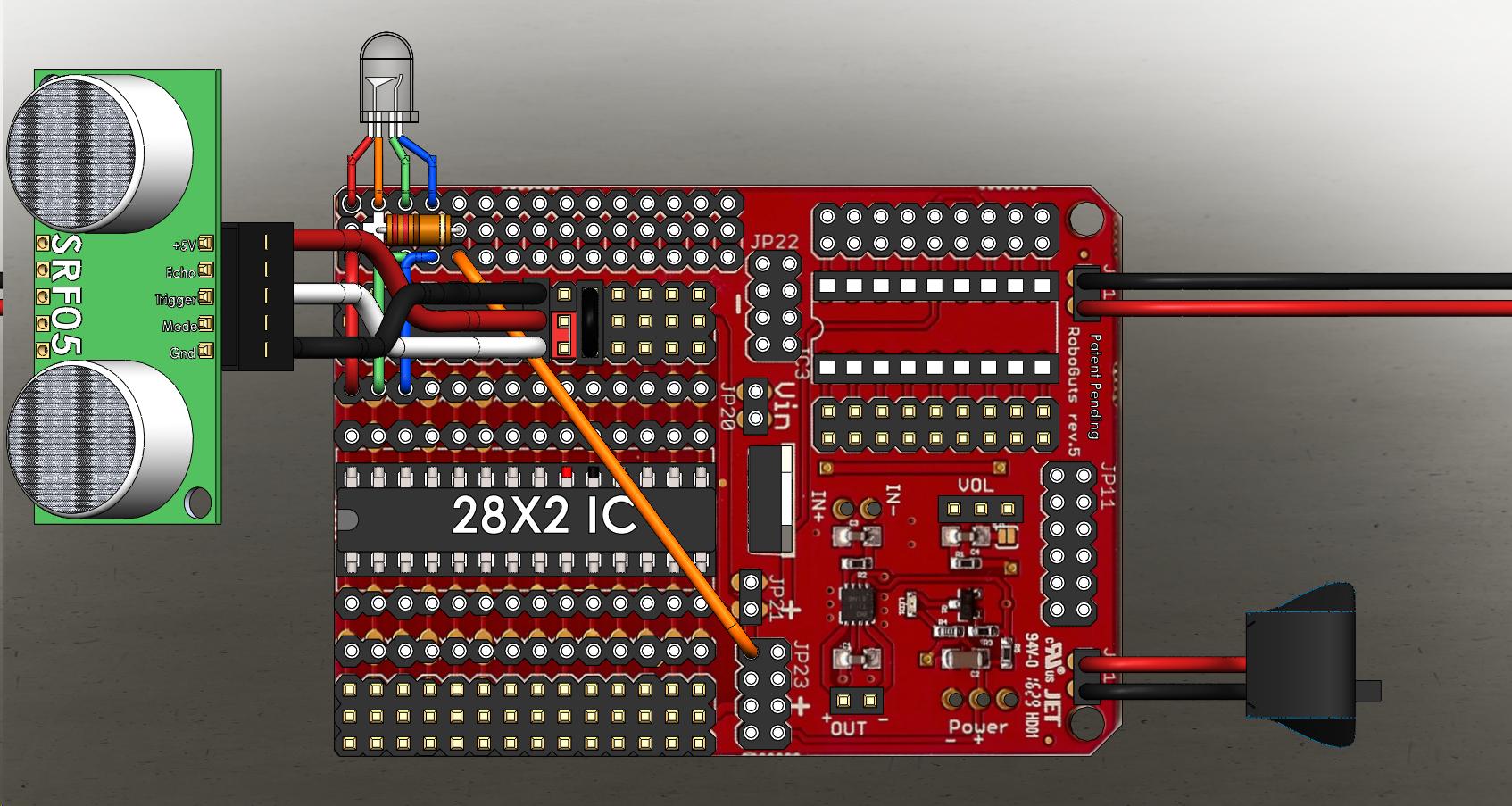

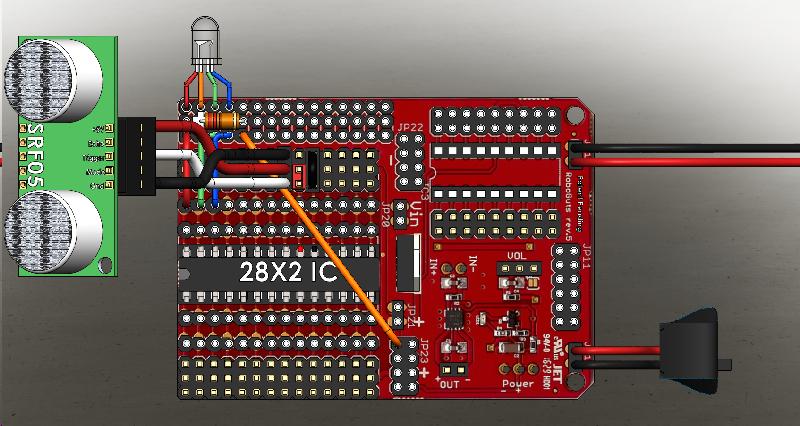

Experiment 18: SRF-05 Ultra Sonic Range Finder

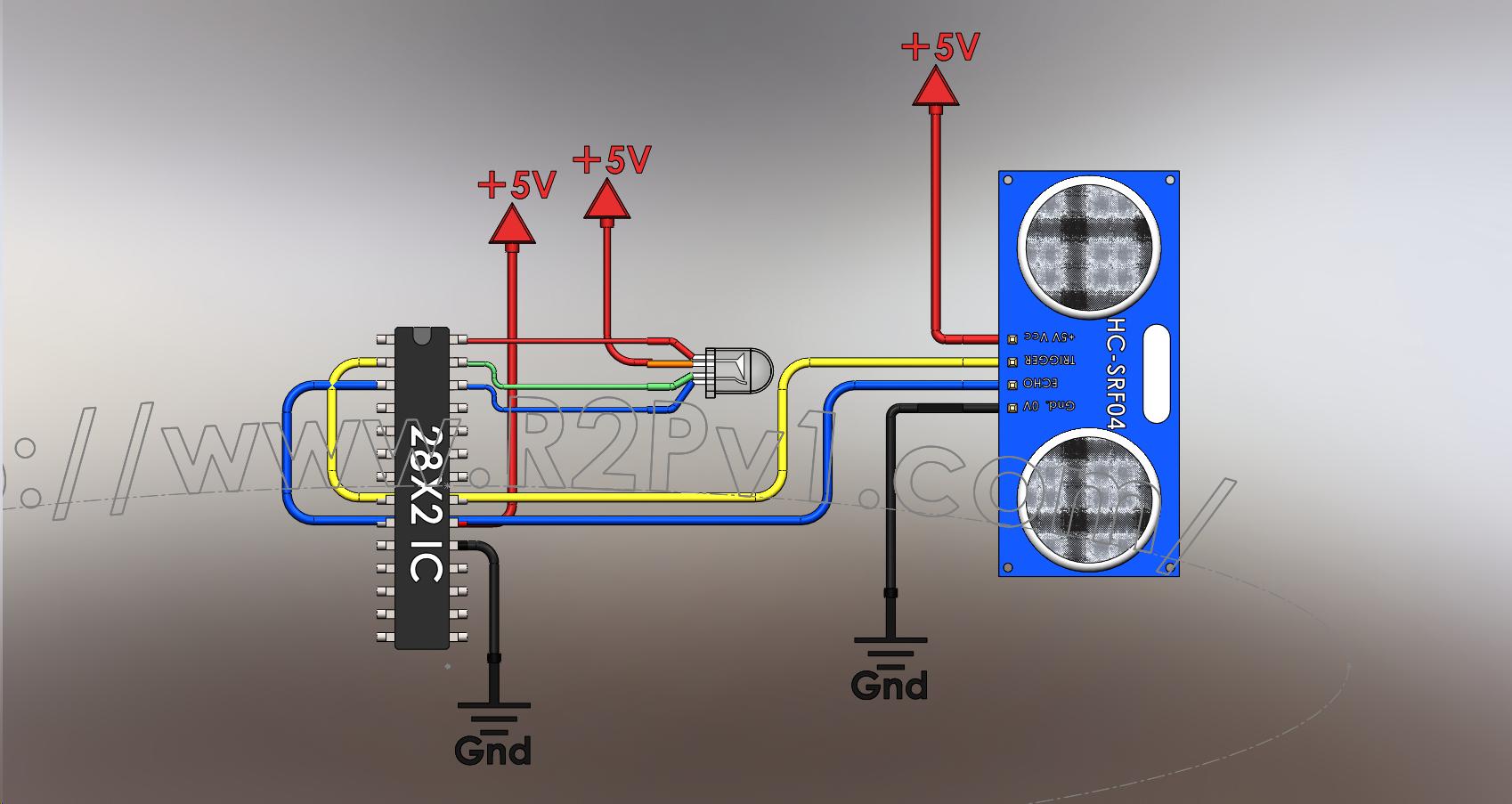

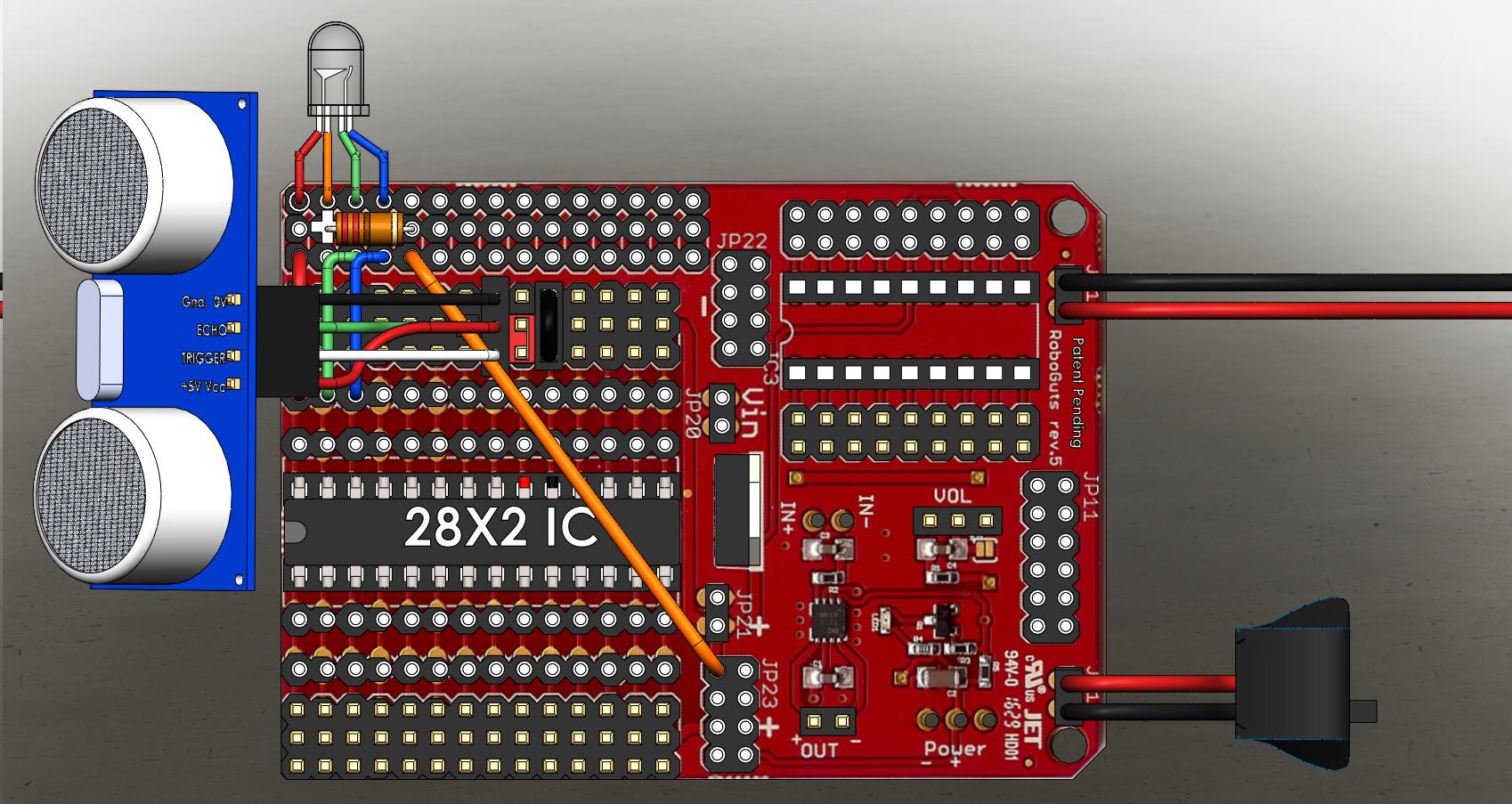

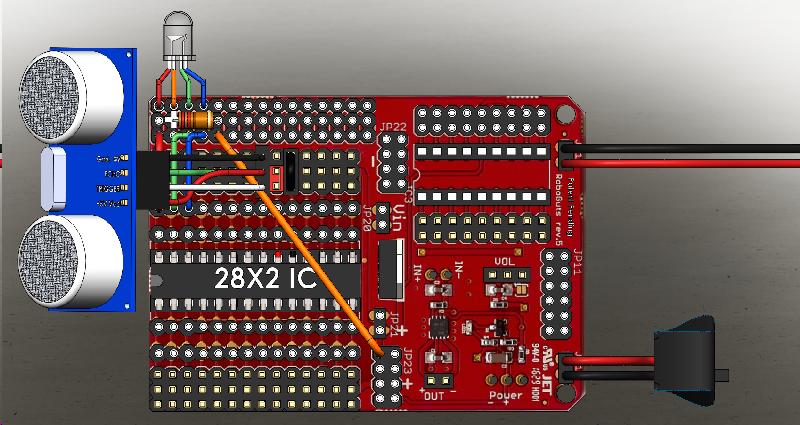

Experiment 19: SRF-04 Ultra Sonic Range Finder

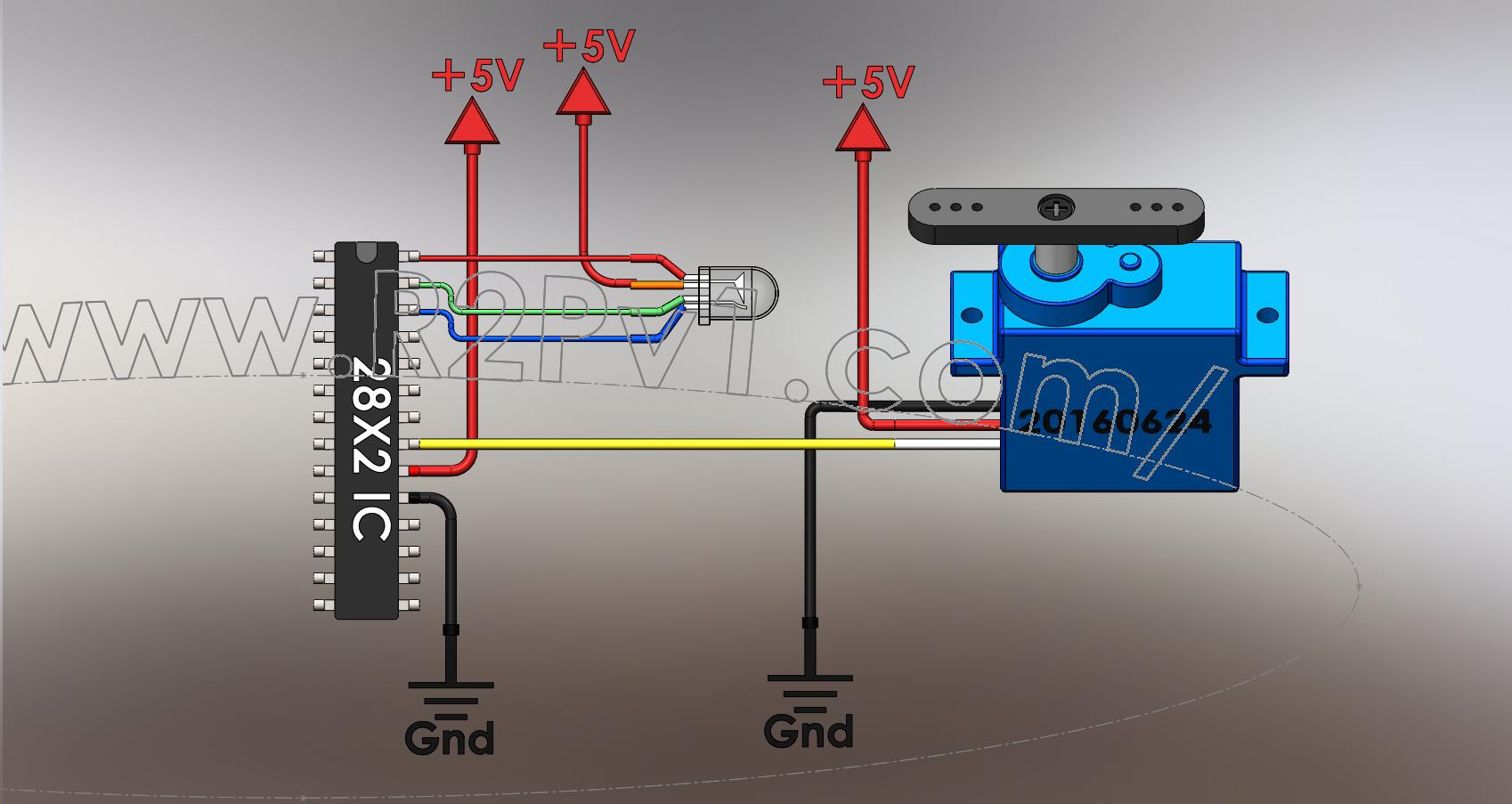

Experiment 20: Standard Servo Motor

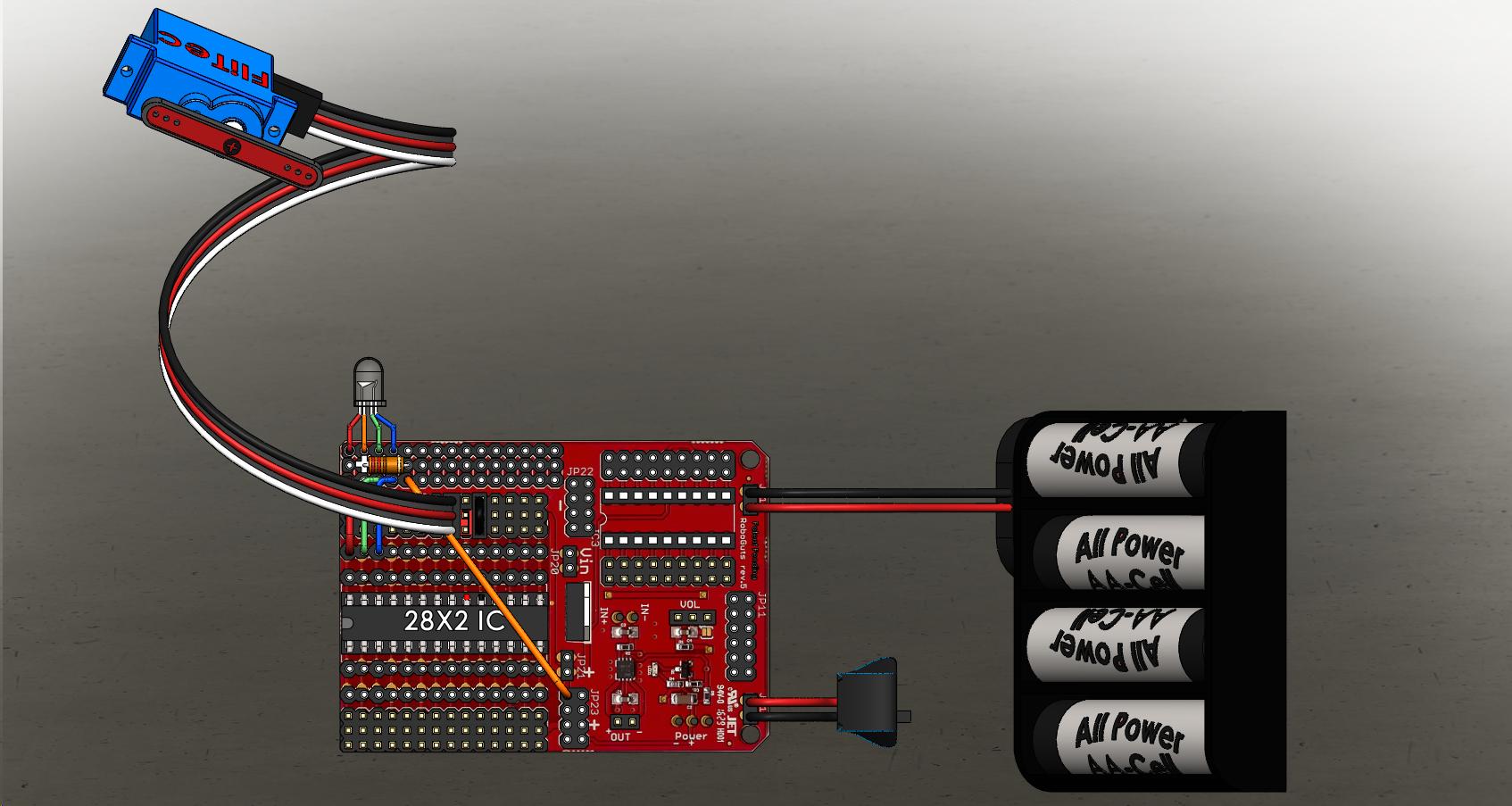

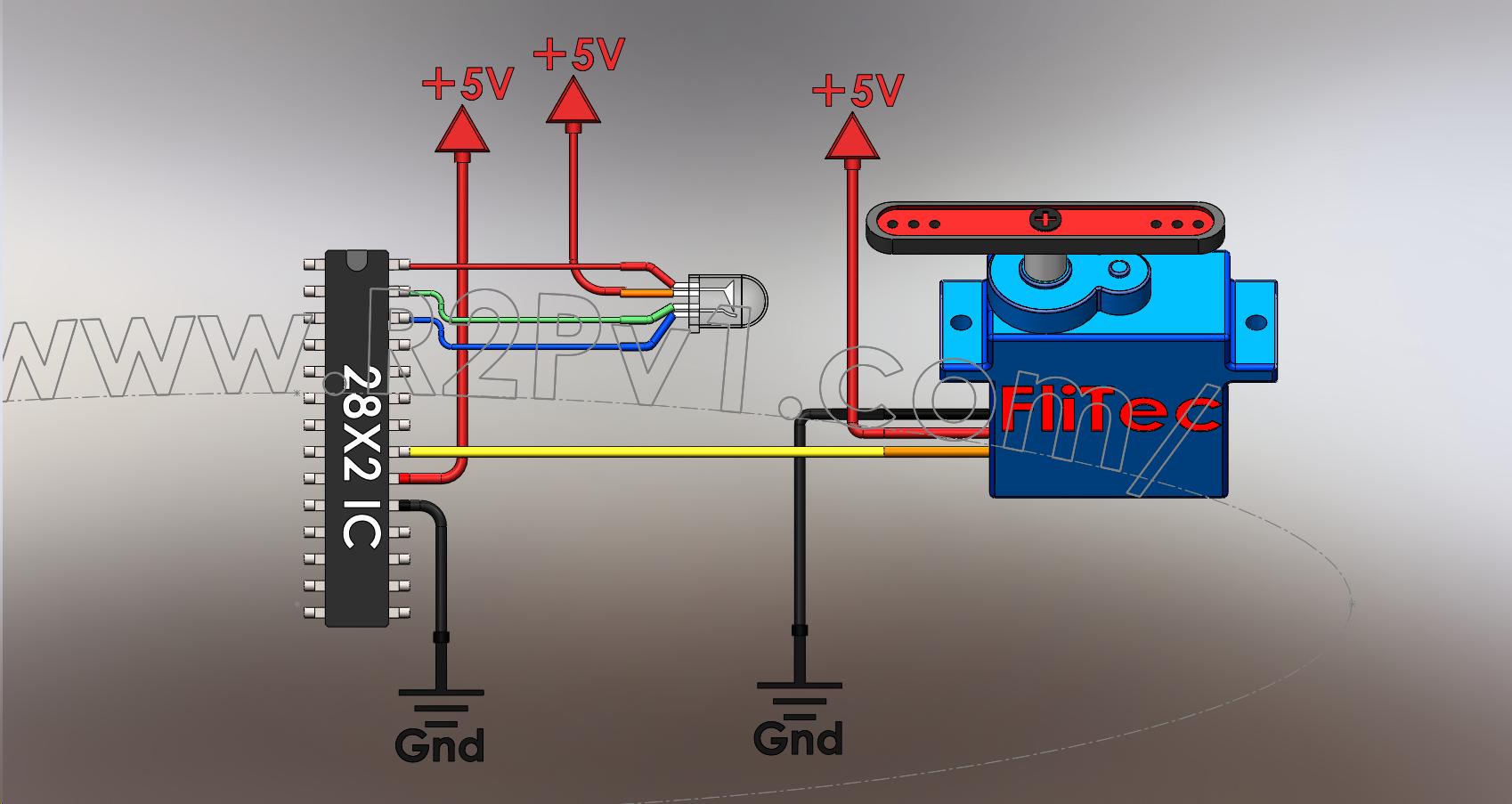

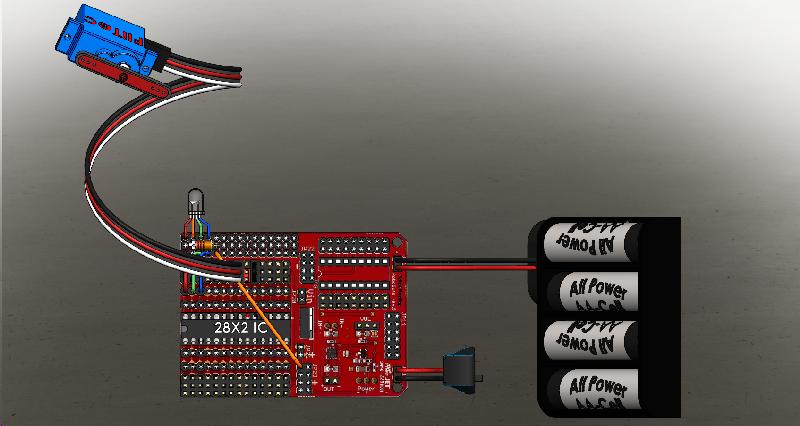

Experiment 21: Continuous Rotating Servo Motor

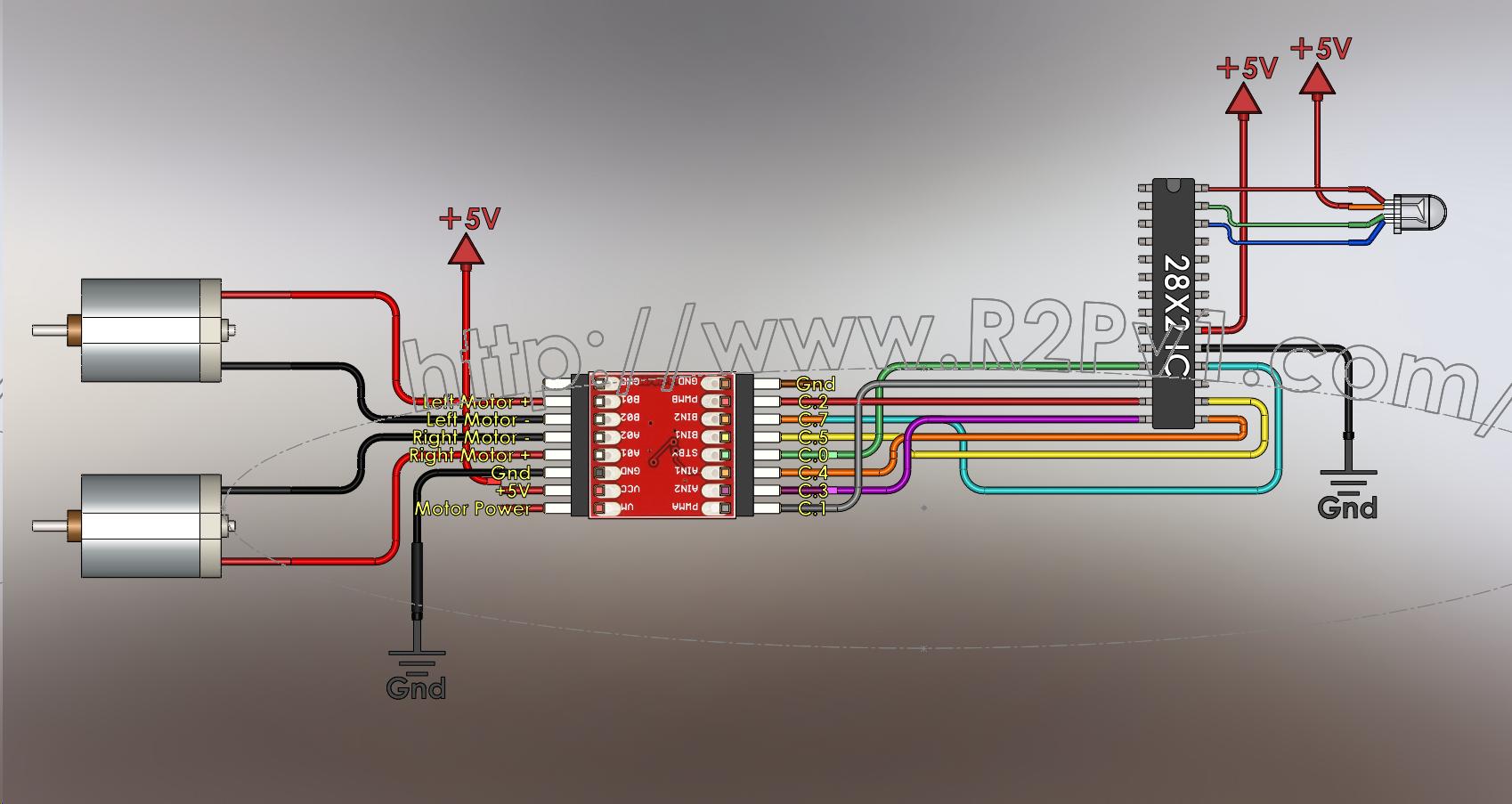

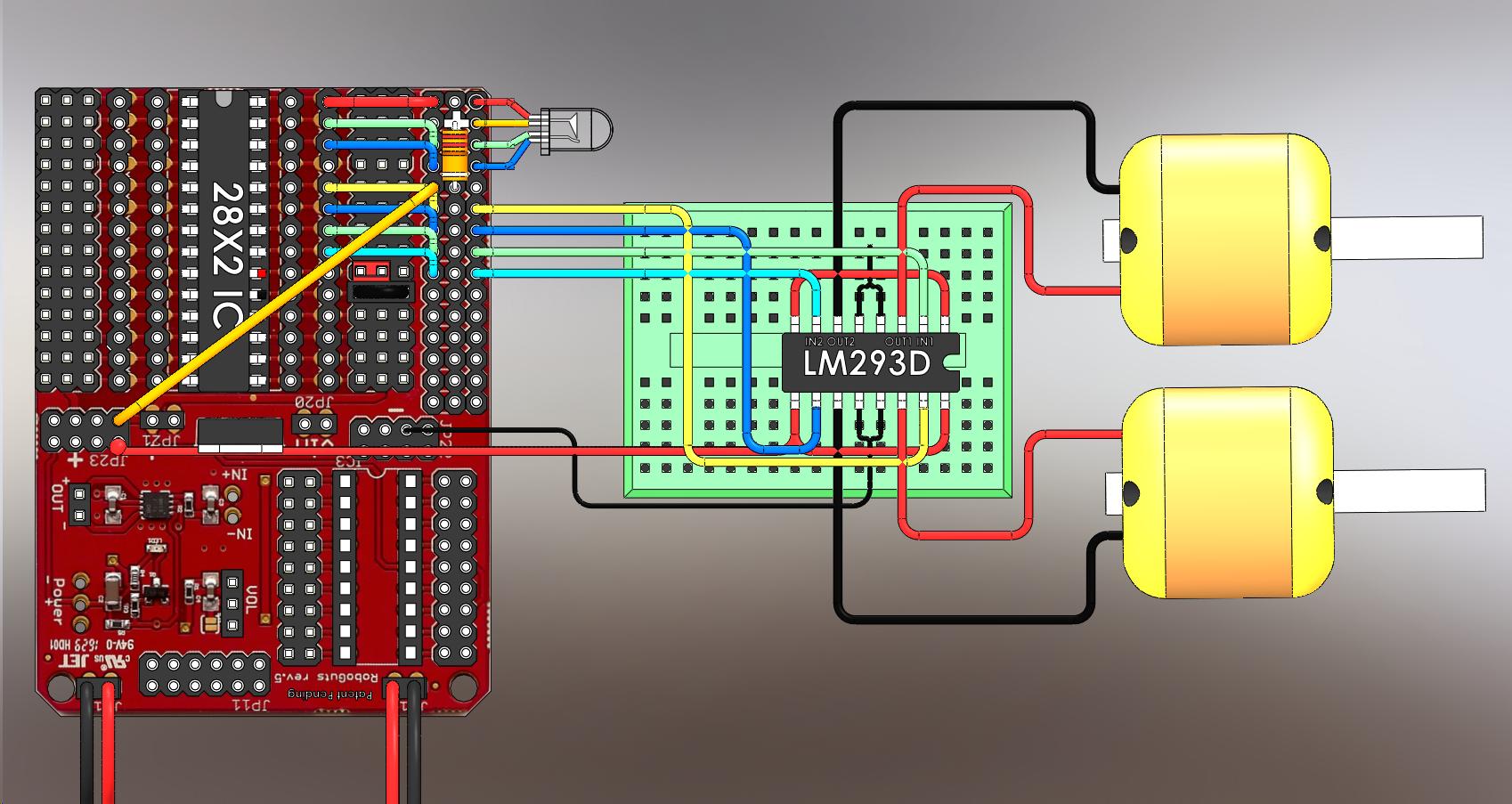

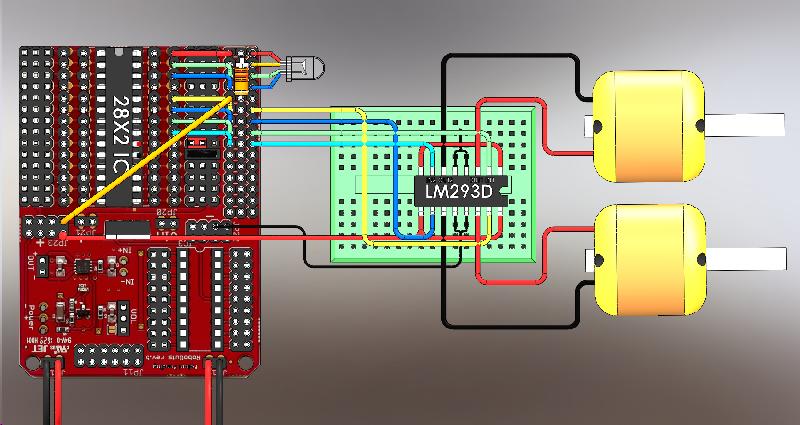

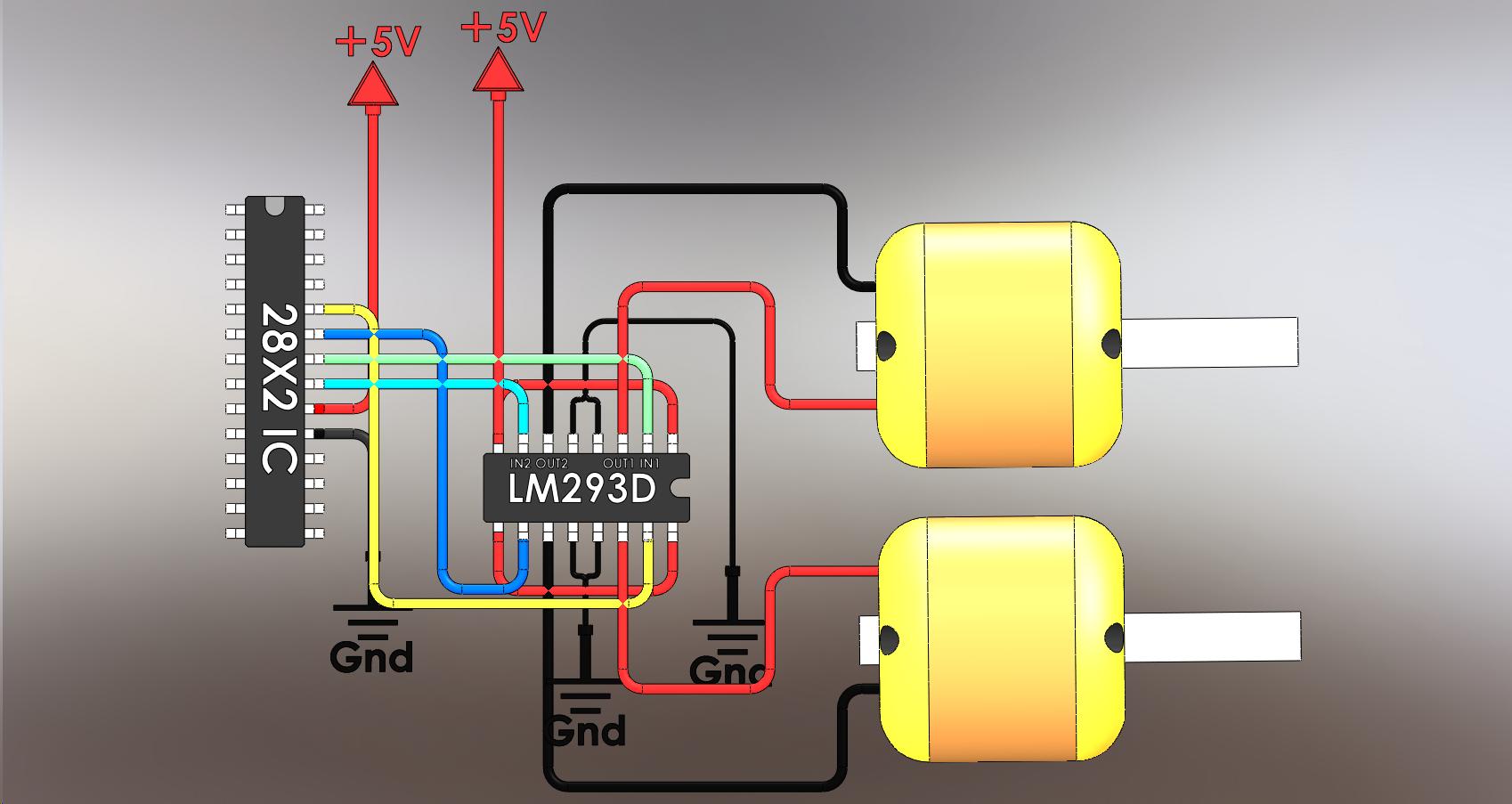

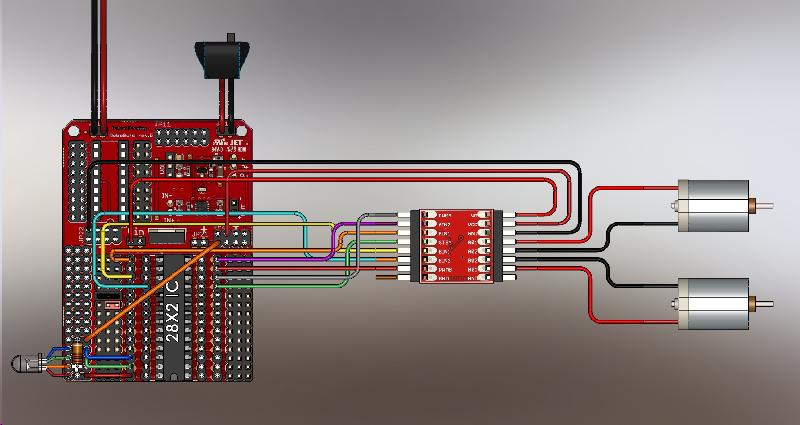

Experiment 22: L293D Motor Driver H-Bridge

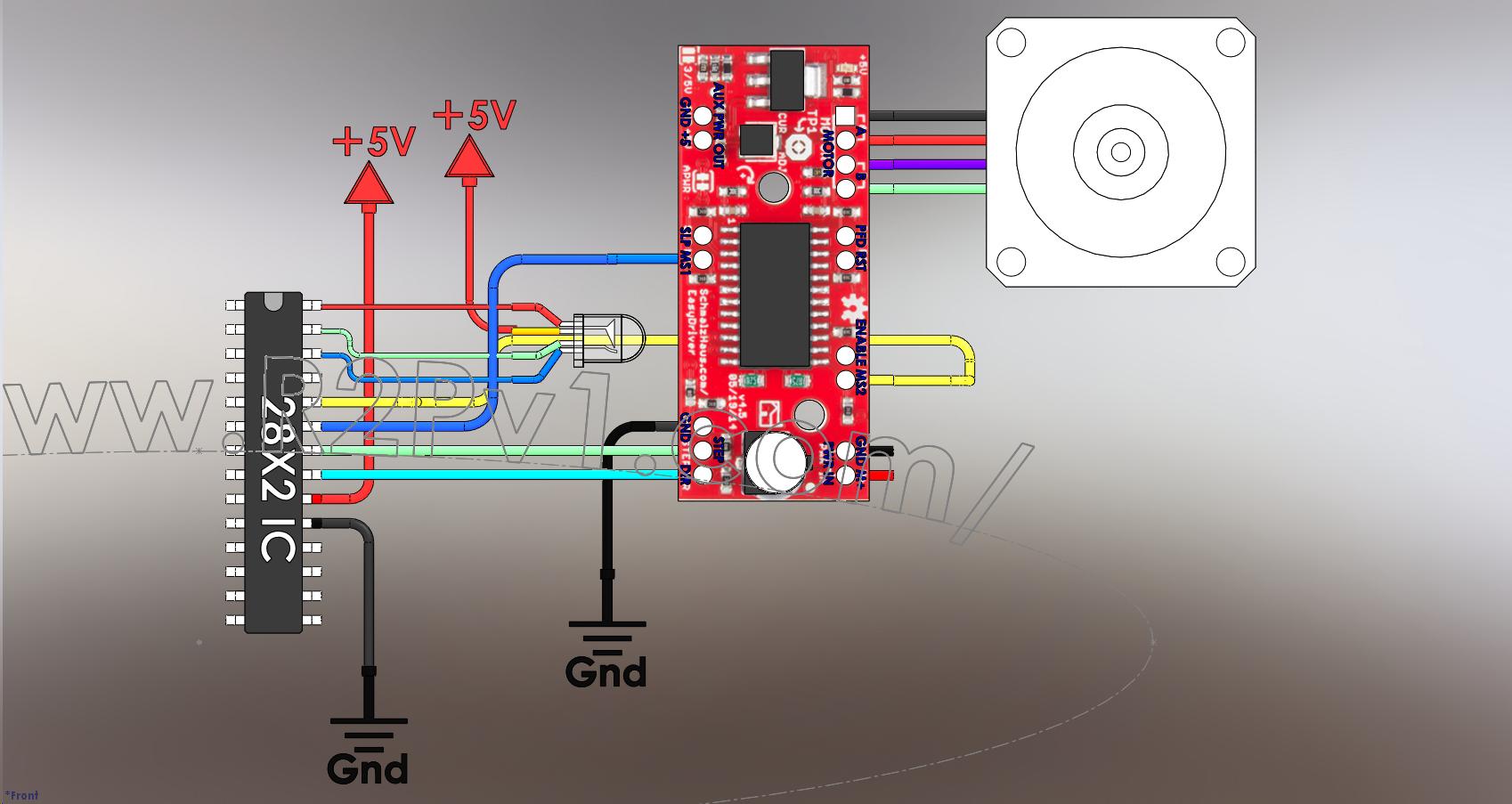

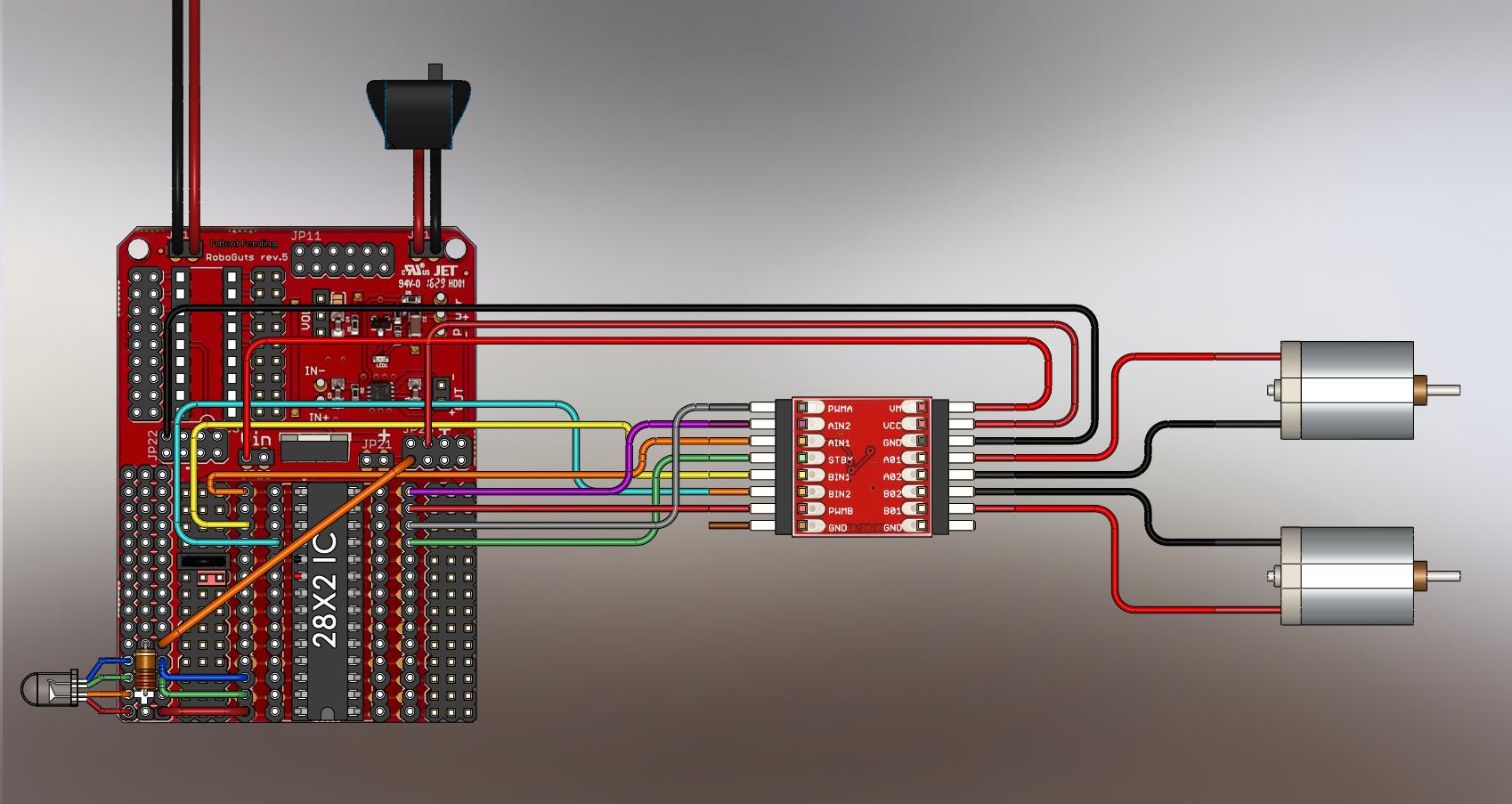

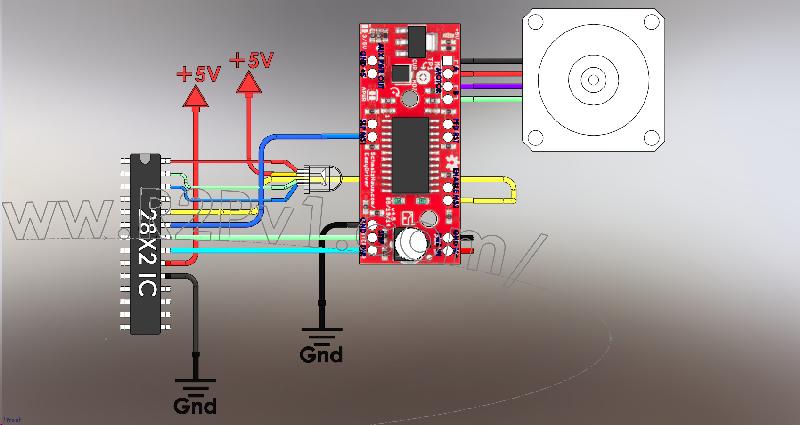

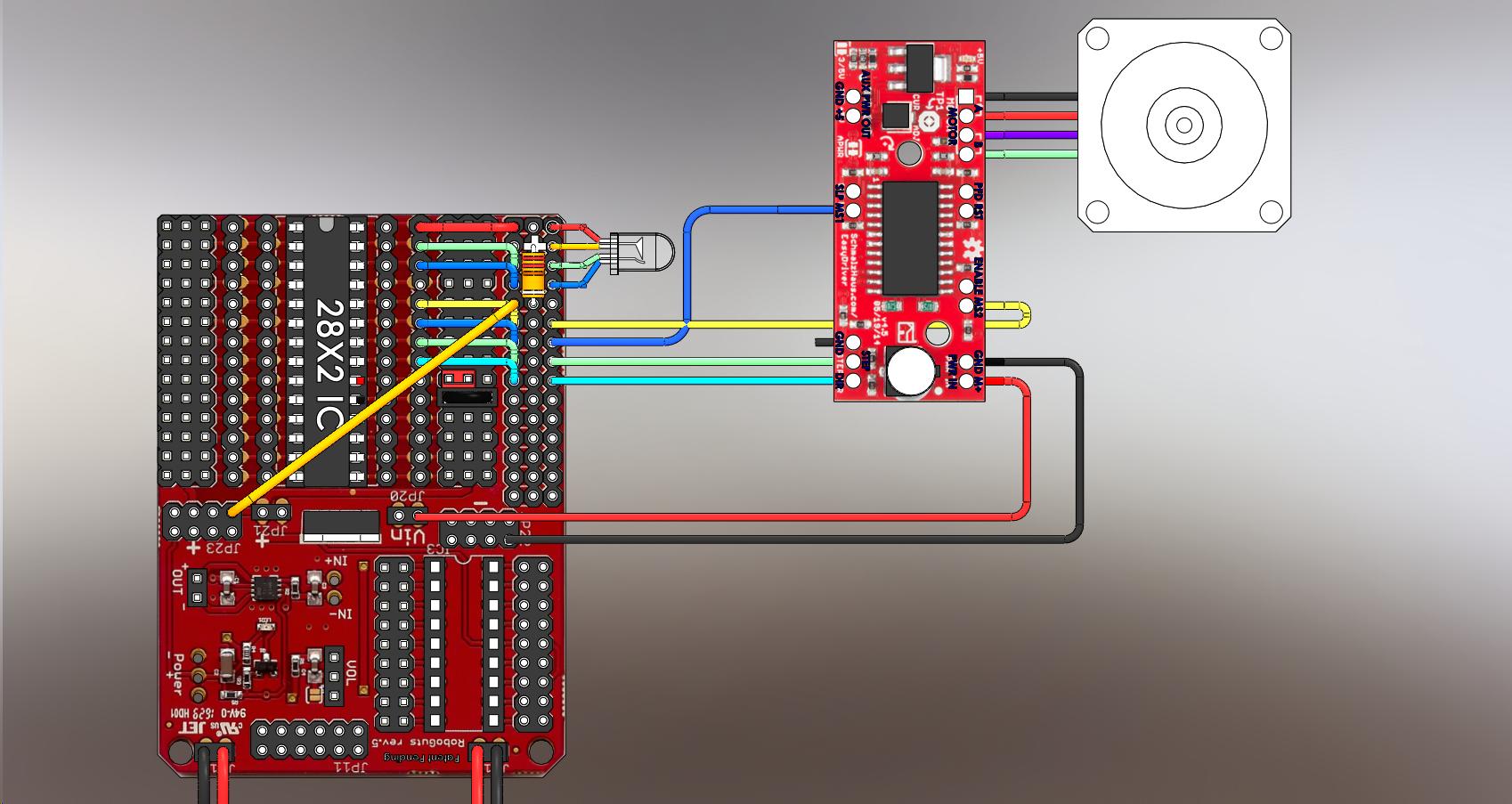

Experiment 23: EasyDriver Stepper Motor Driver

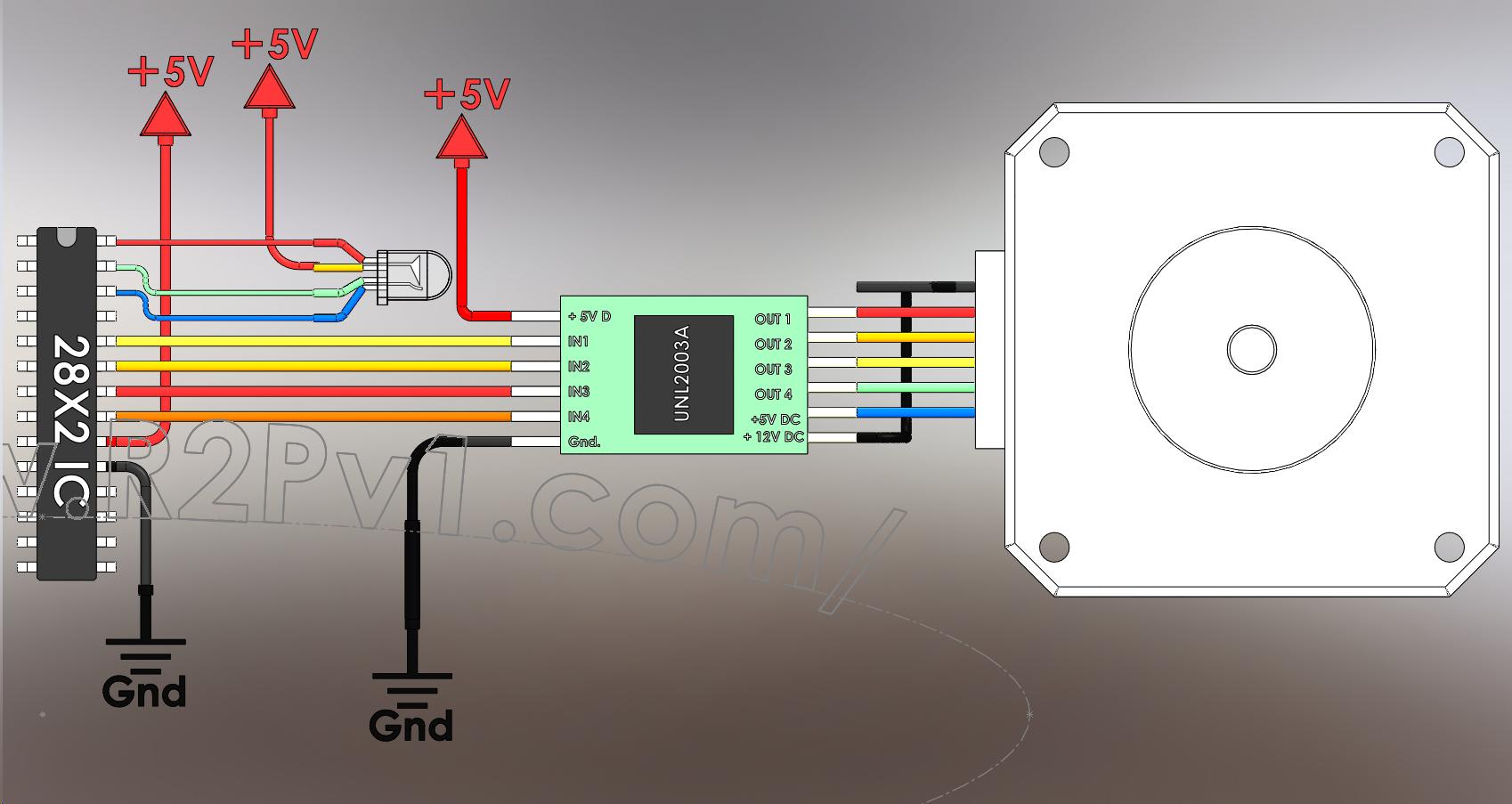

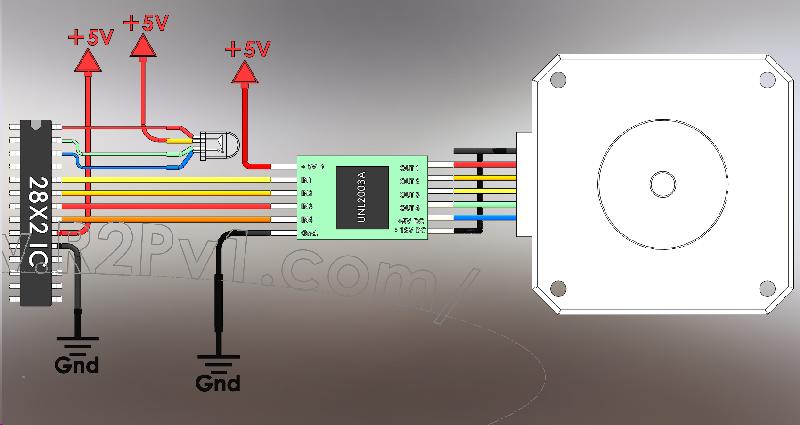

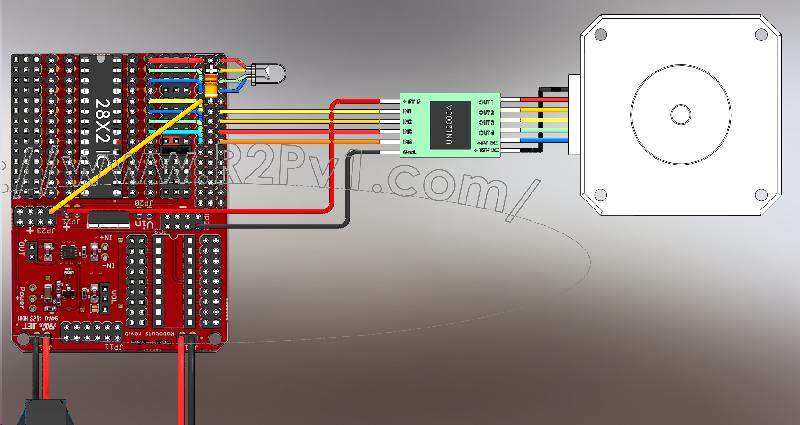

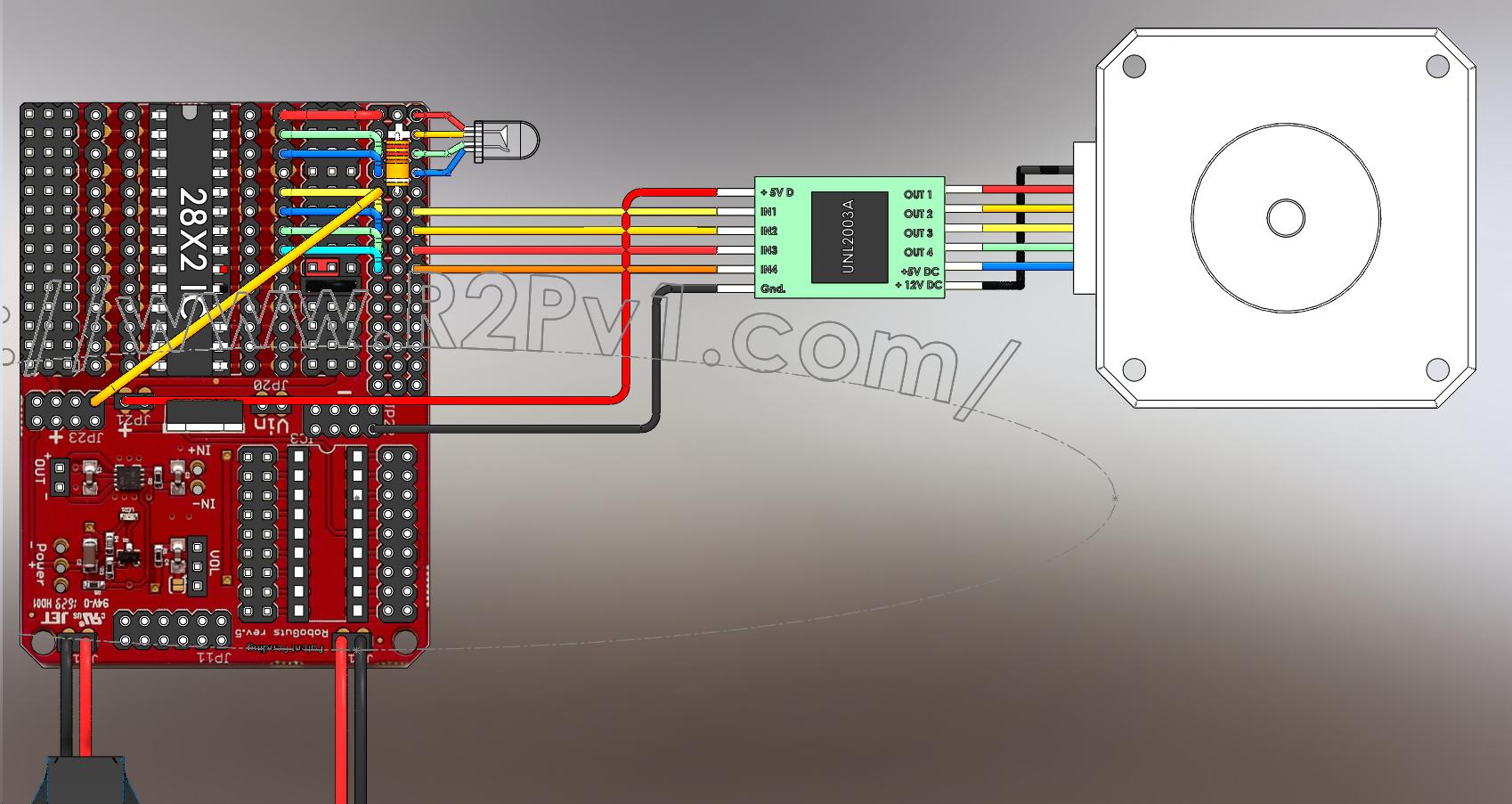

Experiment 24: UNL2003 Stepper Motor Driver


END Main Experiments


BEGIN the 3D Printable Robot Projects

Project X0 = Singing 'n Dancing miniFloppyBot


Click on the picture above to see the programming code

Body box, 2 Wheels, Top, Skid and Face ... the whole kit can be 3D printed on most printers in one day.

Learn how to build the bots

B.0 = RWheel, B.1 = LWheel B.7 = Red LED, B.6 = Green LED, B.5 = Blue LED C.0 = Talk & Song


----------------------------------------------------------------------------------------------------------------
ALL the .STL part files are waiting for KickStarter campaign to be funded.
----------------------------------------------------------------------------------------------------------------


Project X1 = Cave Explorer miniFloppyBot


Body box, 2 Wheels, Top, Skid and Face ... the whole kit can be 3D printed on most printers in one day.


Only 1 rubber band on 1 wheel for traction is why the bot
falters a little in the normal programmed operation,
but it is easily seen how the program works in the demo video.

ScardyBot ... Turns to Run Away
increase the turn radius of X0 closer to 180° to run away

ScardyBot ... Turns to Run Away
increase the turn radius of X0 closer to 180° to run away


Flip the direction and now you have a Psuedo SumoBot that goes after whatever is close!

Finds something in range and tries to stick to it like a poopie on your shoe!


Project X2 = PIXYbot

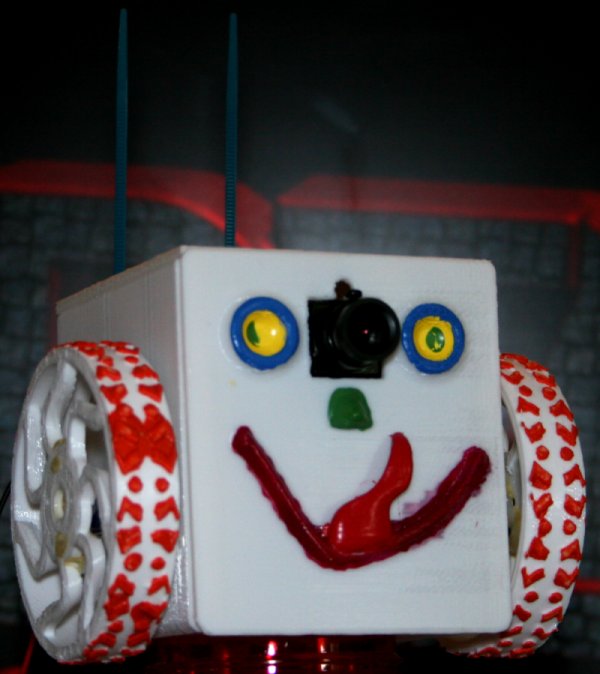

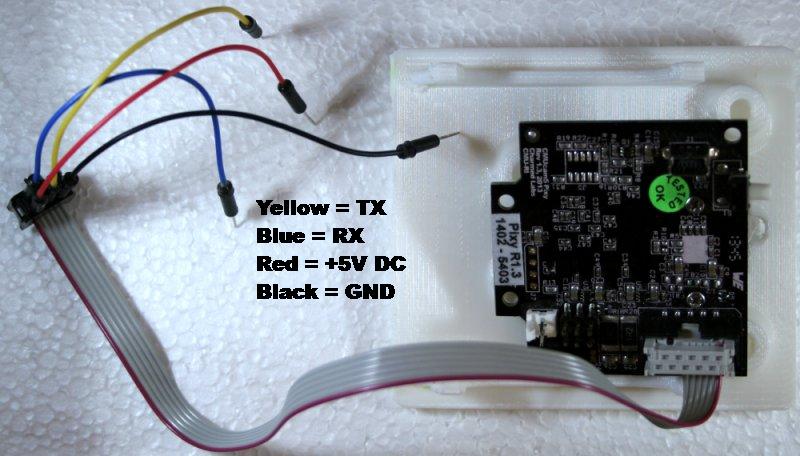

The PIXYbot is a miniFloppyBot with a RoboGuts™ and a PIXY CMUcam5.
The bot sees a color, displays the color in its body 3-color LED and speaks about the color it sees.

. . . . . . . . . . The one caveat to this is you need to have good lighting and bright colors for this sensor to see and
. . . . . . . . . . recognize colors correctly. Color lights and bacck-lit objects do not work with the PIXY CMUcam5.

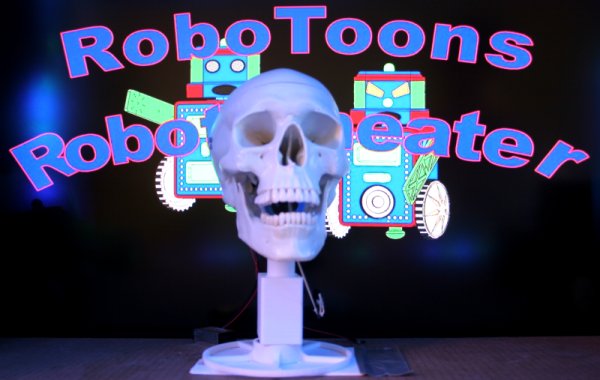

Project X3 = Skully ... The Head of the Grim Reaper

A Skull that moves its Jaw and Turns its Neck while it Talks



----------------------------------------------------------------------------------------------------------------
ALL the .STL part files are waiting for KickStarter campaign to be funded.
----------------------------------------------------------------------------------------------------------------

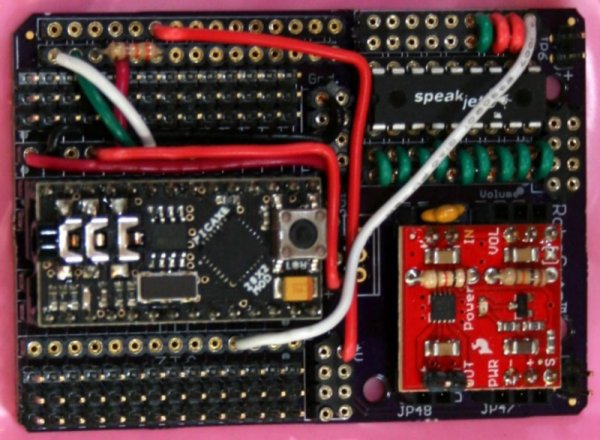

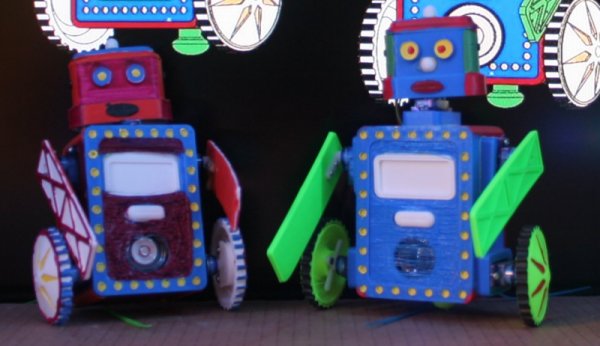

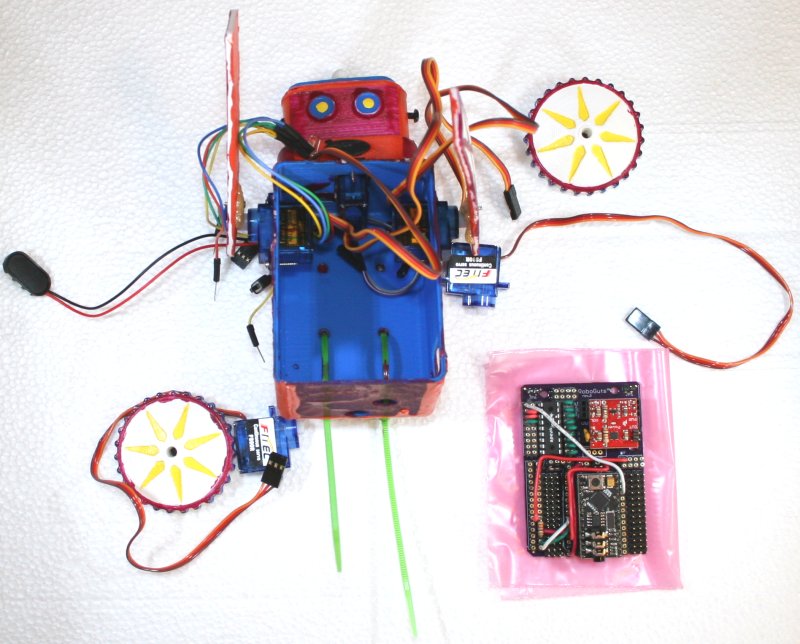

Project X4 = Build a BillyBot Talking, Singing & Dancing Robot




Easy to build other than painting the parts and soldering up the audio amplifier PINs.


The RoboGuts™ are so simple!

B.0 = Neck, B.1 = RArm, B.2 = LArm, B.3 = RWheel, B.4 = LWheel
B.7 = Red LED, B.6 = Green LED, B.5 = Blue LED
C.0 = Talk & Song


----------------------------------------------------------------------------------------------------------------
ALL the .STL part files are waiting for KickStarter campaign to be funded.
----------------------------------------------------------------------------------------------------------------

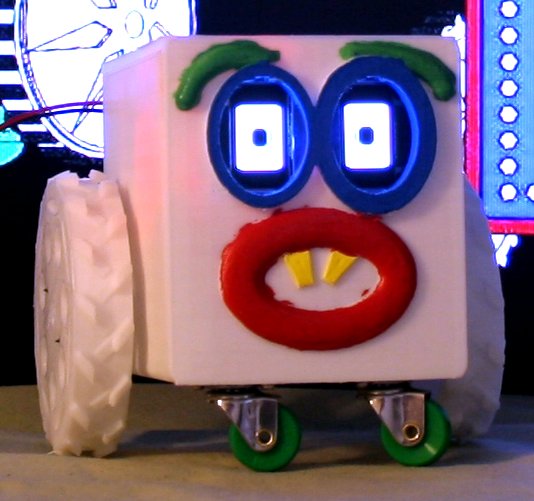

Project X5 = Build a miniFloppyBot with OLED Eyes

Designed for the PICAXE 28X2 module with enough memory for all the movements, although smaller chips can still make movable eyes.

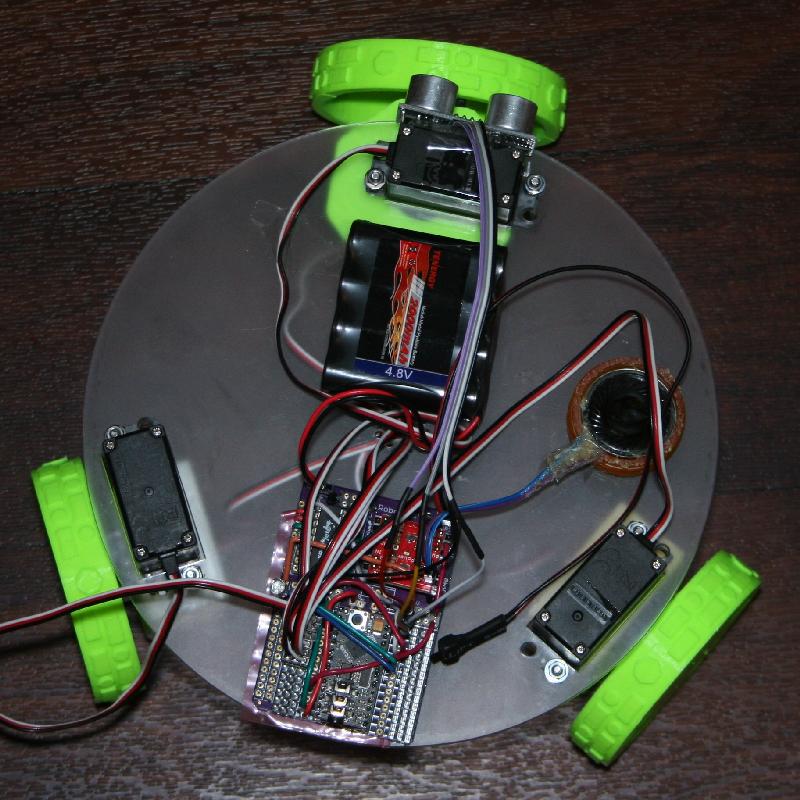

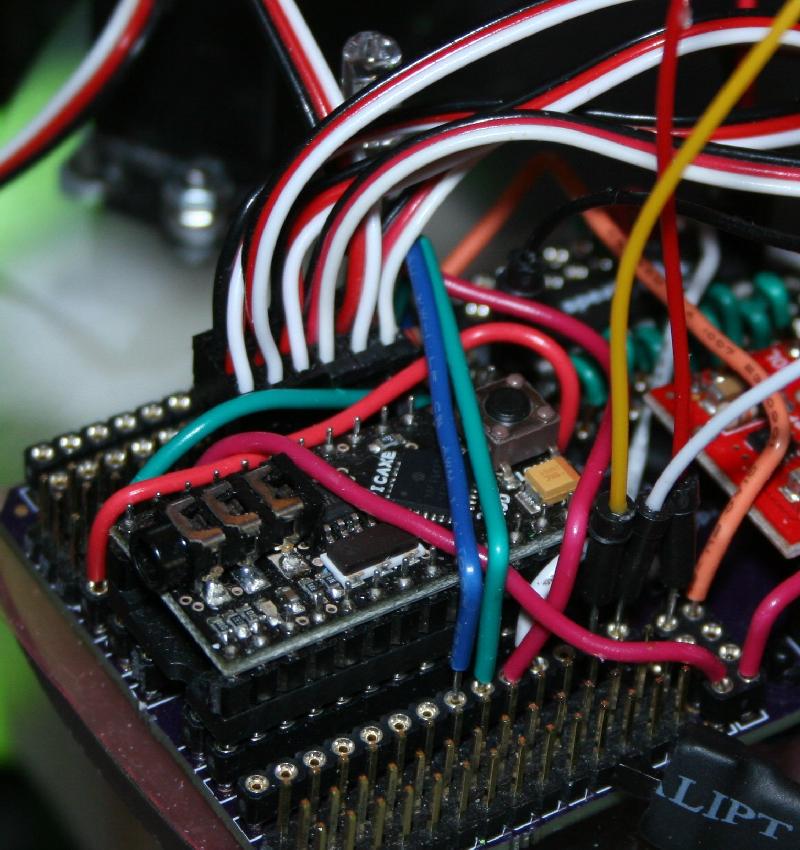

Project X6 = R2Pv1-OmniRover1


Project X7 =



(Currently looking for online retailers to provide more affordable RoboGuts™ Experiment Kits Experiment Kit Components List)


ITMT; What Components and Where to Buy them

or donate to the cause ...
