Connecting to a 3-color RGB LED
RGB = Red, Green, Blue

For most components there is a Signal PIN, a + PIN and a - or ground PIN

A basic LED (Light Emitting Diode) has the + and -/Gnd pins and the light is the signal emitted out

You may have a common anode or common cathode LED

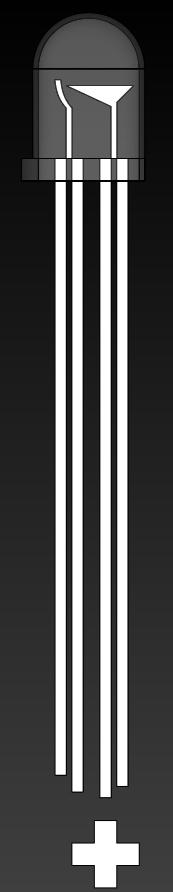

The flat side of the base denotes the annode pin side


Typical common annode 3-color LED
Blue - Green - +V - Red

As the appropriate color pin is pulled LOW by the MCU pin the LED turns ON

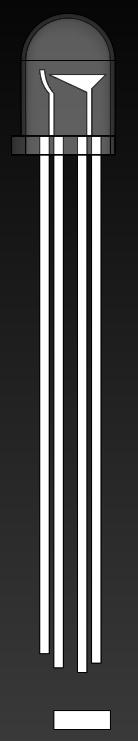

The flat side of the base denotes the cathode pin side


Typical common cathode 3-color LED
Blue - Green - GND - Red

As the appropriate color pin is pulled HIGH by the MCU pin the LED turns ON
